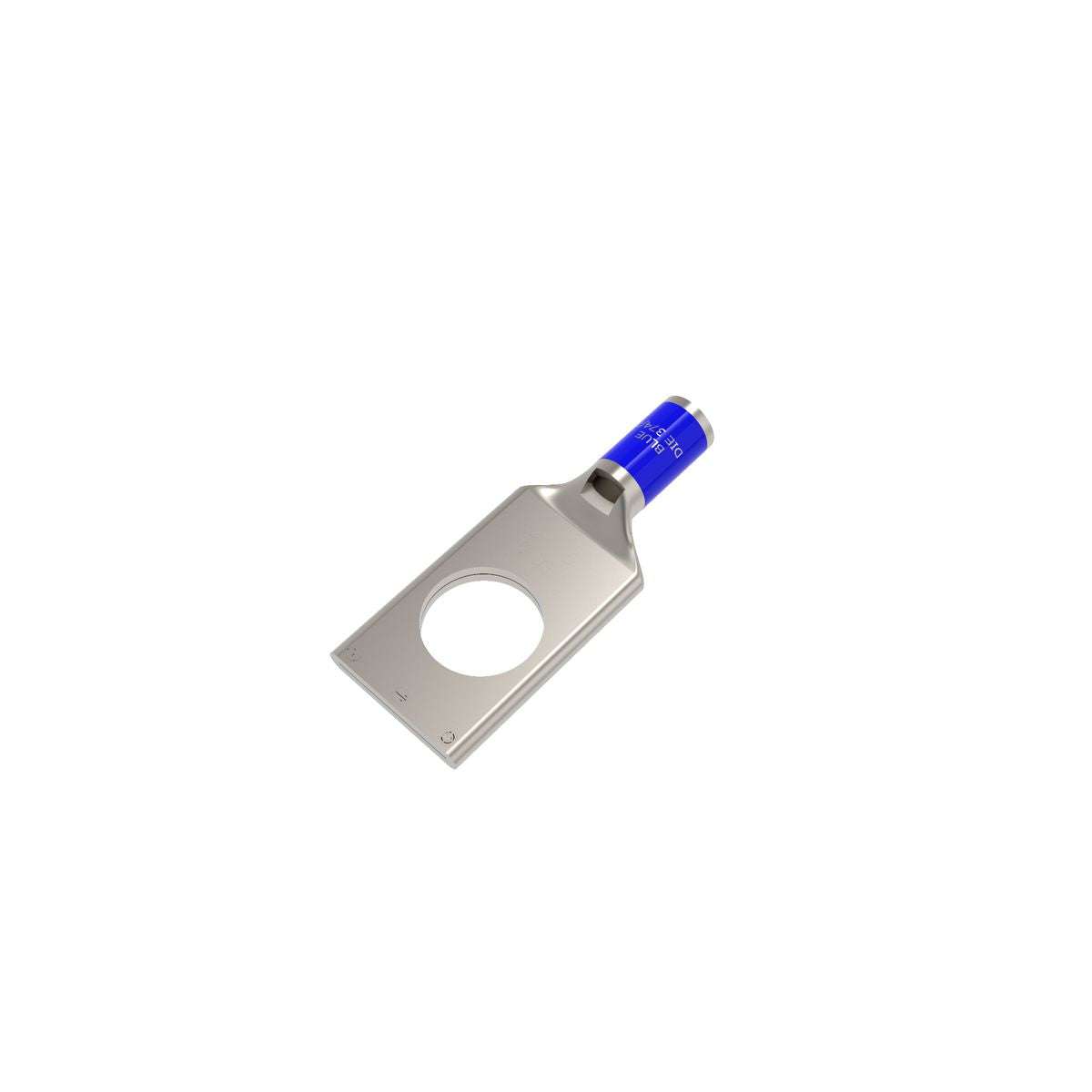

Hubbell YA6CL1BOX YA-L 1-Hole Compression Lug 6 AWG Copper

Product Description

The Hubbell YA6CL1BOX is a compression lug designed for mechanical and electrical connections. This 1-Hole compression lug accommodates 6 AWG stranded copper wire. It features a tin-plated finish that promotes conductivity and resists corrosion. The lug is suitable for applications with voltage ratings up to 35 kV and operates at a temperature rating of ninety degrees Celsius.

• Compatible with #8 to #10 stud sizes
• Overall length of 1.27 inches
• Barrel size of 0.54 inches

Product Highlights

This product provides a reliable connection for various wiring tasks. It is designed to withstand electrical and environmental stresses, ensuring long-lasting performance.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: YA6CL1BOX

Technical Specifications

• Application: For code conductor
• Barrel Size: 0.54 in L
• Conductor Size: 6 AWG
• Conductor Type: Stranded Copper
• Die Code: 7/374
• Material: Copper
• Overall Length: 1.27 in
• Standards/Approvals: ARRA Compliant, CSA Certified, RoHS Compliant, UL 467A/467B
• Stud Size: #8 to 10
• Temperature Rating: 90 deg C
• Tongue Size: 0.41 in W x 0.09 in THK
• Tongue Type: Standard/Straight
• Voltage Rating: 600 VAC to 35 kV
