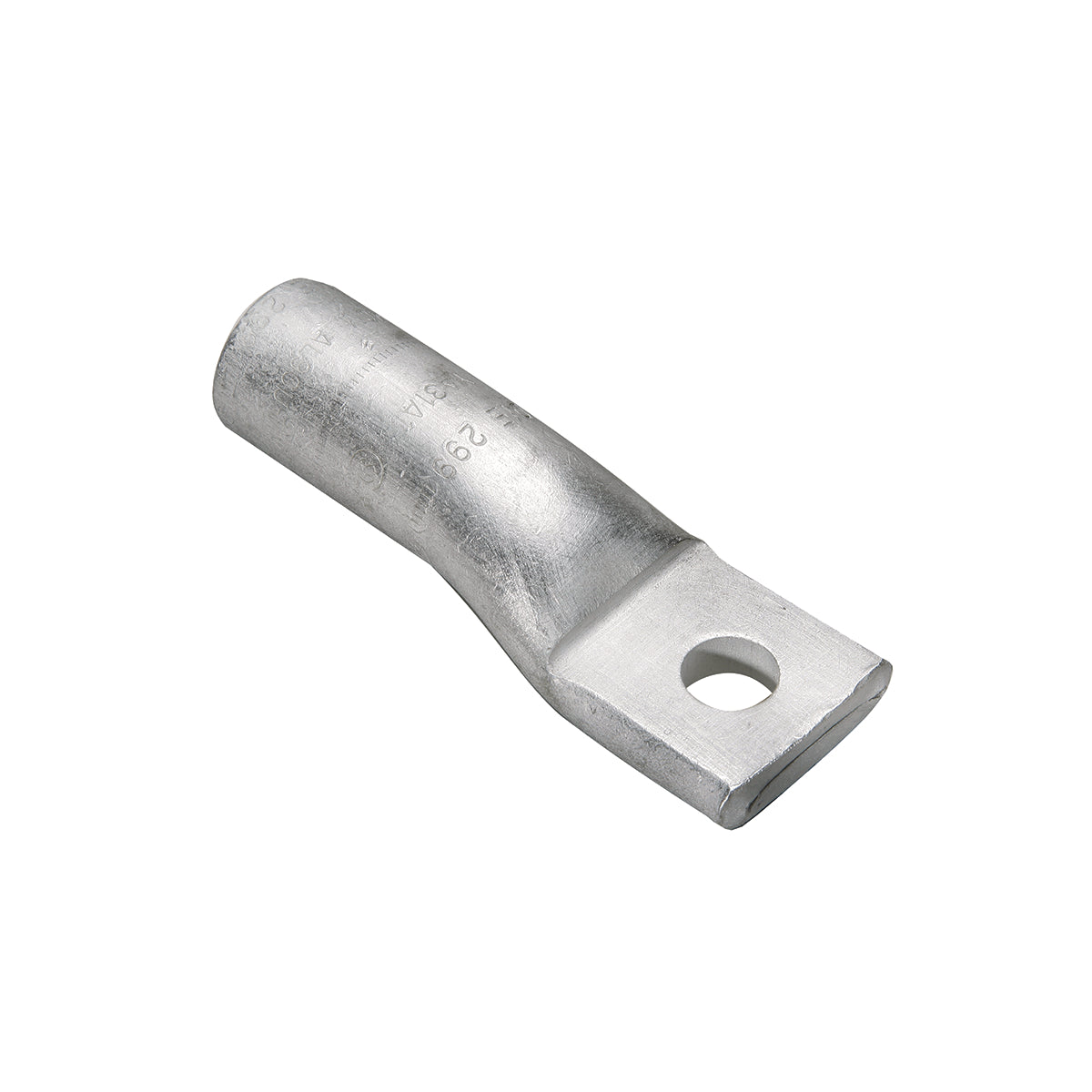

Hubbell YA6CA1 YA-A 1-Hole Dual Rated Uninsulated Compression Lug, 6 AWG Aluminum/Stranded Copper Conductor

Product Description

The Hubbell YA6CA1 is a dual rated uninsulated compression lug designed for reliable electrical connections. This lug supports aluminum or stranded copper conductors with a size of six AWG. The design features a standard straight tongue for easy cable insertion. The lug has a voltage rating from six hundred volts alternating current to thirty-five thousand volts. It has been engineered to withstand a variety of environmental conditions including current surges and corrosion.

• Supports six AWG aluminum and stranded copper conductors.
• Rated for a voltage range of six hundred to thirty-five thousand volts.
• Includes a one-quarter inch stud size for secure connections.

Product Highlights

Designed for heavy duty applications, the YA6CA1 is suitable for both indoor and outdoor use. The electro plated tin aluminum material ensures durability against corrosion.

Product Information

Standard Information

• Application: For aluminum and copper conductors
• Manufacturer: Hubbell

Technical Specifications

• Conductor Size: 6 AWG
• Overall Length: 1.84 inches
• Barrel Size: 3/4 inches
• Voltage Rating: 600 VAC to 35 kV
• Temperature Rating: 90 degrees Celsius
• Tongue Size: 0.75 inches L x 0.47 inches W x 0.14 inches thickness
• Die Code: 346
• Stud Size: 1/4 inches
