Hubbell YA6C2TC38 BURNDY CU HYDENT #6 STR-(2) 3/8 78181001916

Product Description

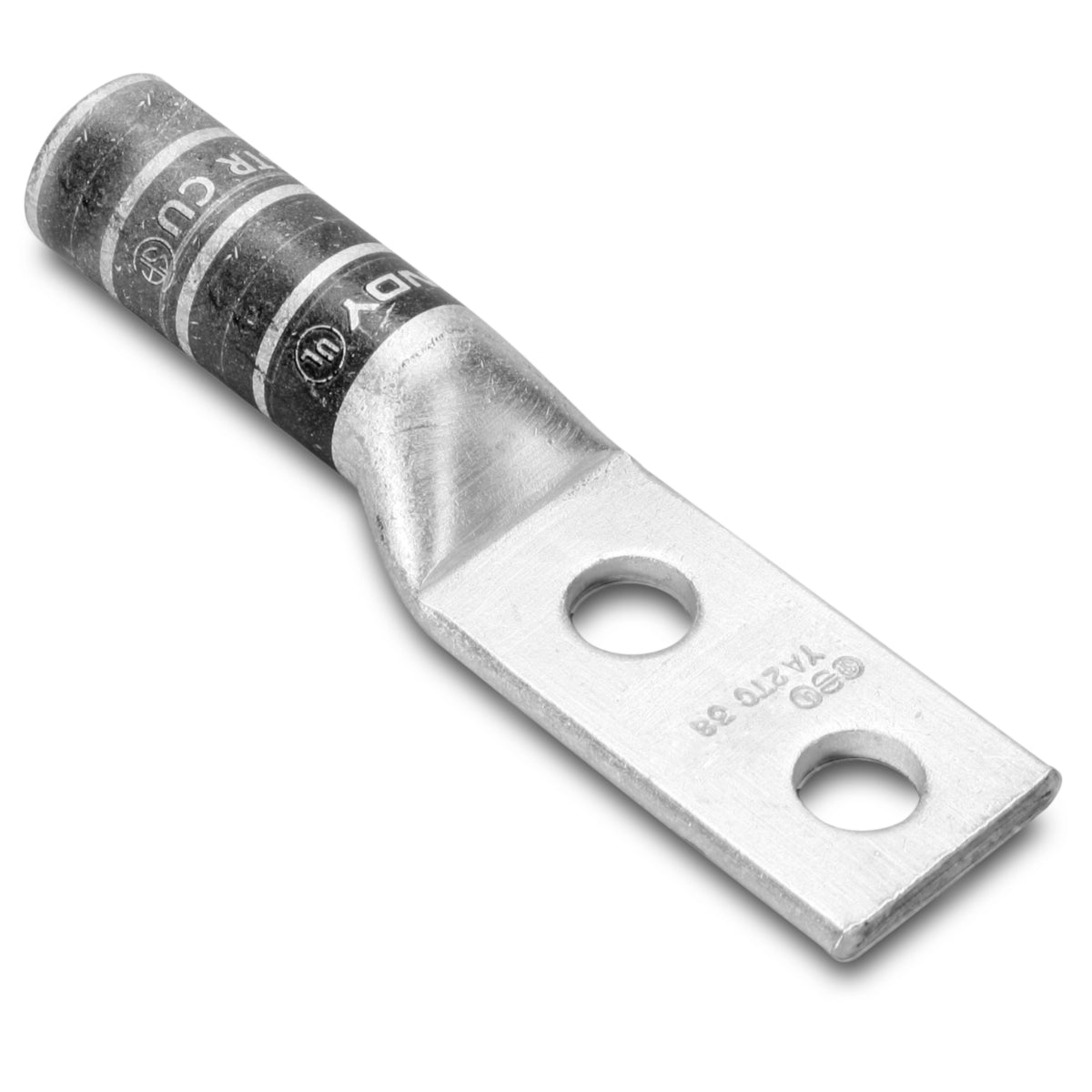

The Hubbell YA6C2TC38 is a BURNDY HYLUG 2-Hole Compression Lug designed for stranded copper conductors of 6 AWG size. This connector is suitable for applications involving voltage ratings from 600 VAC up to 35 kV. It features a standard tongue design with a 0.58 inches width and a thickness of 0.06 inches.

• Application for flex conductor
• Temperature rating of 90 degrees Celsius
• Includes multiple die tools for hydraulic and mechanical crimping

Product Highlights

This compression lug provides reliable electrical connections and is designed to withstand various environmental conditions including temperature, current surges, and vibrations.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: YA6C2TC38

Technical Specifications

• Conductor Type: Stranded Copper
• Overall Length: 3.22 inches
• Stud Size: 3/8 inches
• Voltage Rating: 600 VAC to 35 kV
• Material: Tin Plated Copper
• Die Code: 7
• Barrel Size: 1.12 inches long
• Tongue Size: 0.58 inches wide by 0.06 inches thick
• Temperature Rating: 90 degrees Celsius
• Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, UL 486A/486B, CSA Certified
