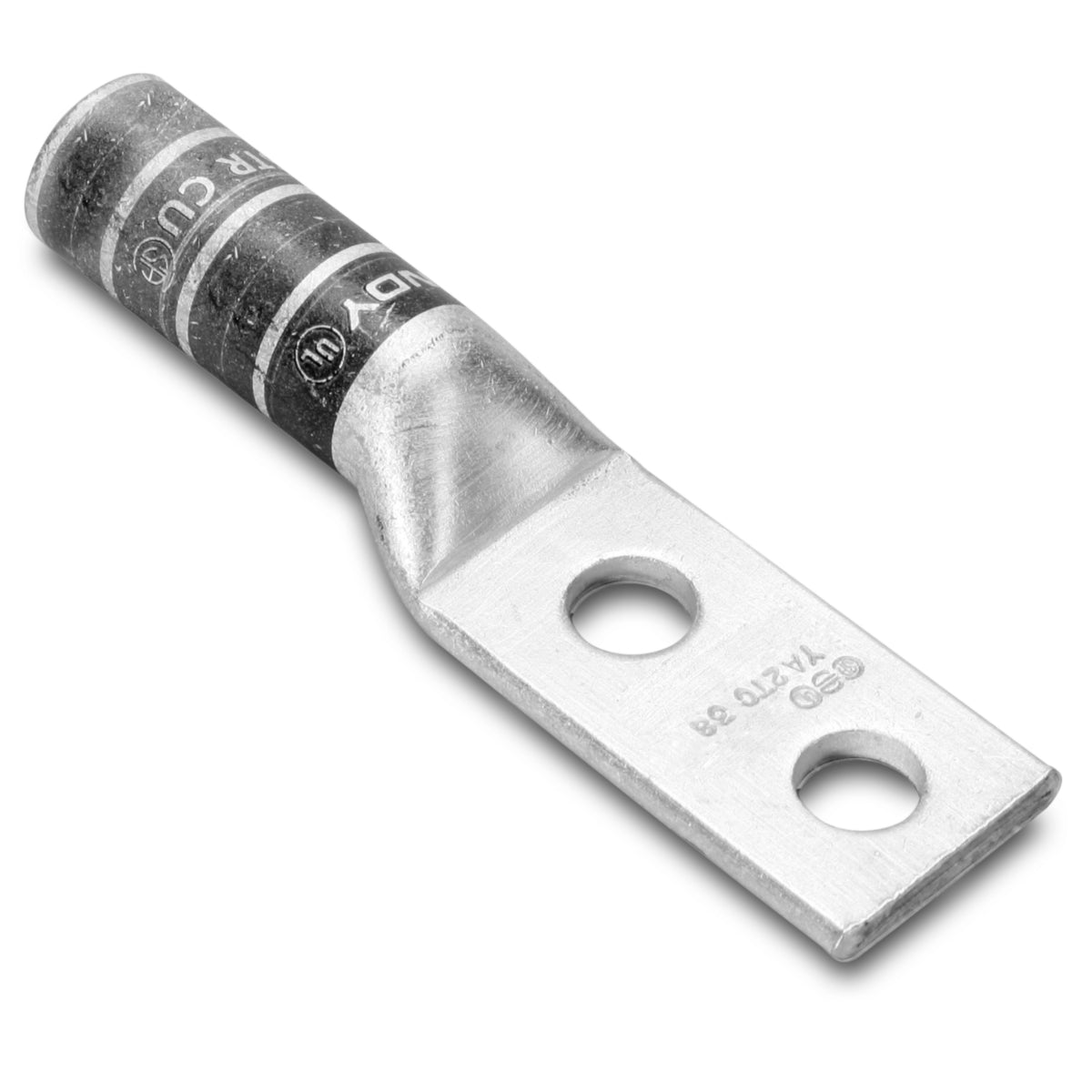

Hubbell YA6C2TC14 BURNDY CULUG 6STR 2HOLE 1/4STUD YA6C2TC14

Product Description

The Hubbell YA6C2TC14 is a compression lug designed for reliable electrical connections. This 2-hole lug is suitable for use with stranded copper conductors rated at six AWG. The product supports voltage ratings from six hundred VAC to thirty-five kV, making it ideal for various electrical applications.

• Designed for stranded copper conductor.
• Handles voltages from six hundred VAC to thirty-five kV.
• Standard tongue type with a size of zero point forty-five inches wide by zero point zero eight inches thick.

Product Highlights

This product offers essential features for high-quality electrical connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• Type: 2-Hole

Technical Specifications

• Conductor Size: 6 AWG
• Overall Length: 2.65 inches
• Stud Size: 1/4 inches
• Material: Tin Plated Copper
• Temperature Rating: 90 degrees C
• Barrel Size: 1.12 inches in length
• Tongue Size: 0.45 inches wide by 0.08 inches thick
• Die Code: 7
• Voltage Rating: 600 VAC to 35 kV
• Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 468A/468B, CSA Certified, Buy American Act Compliant
