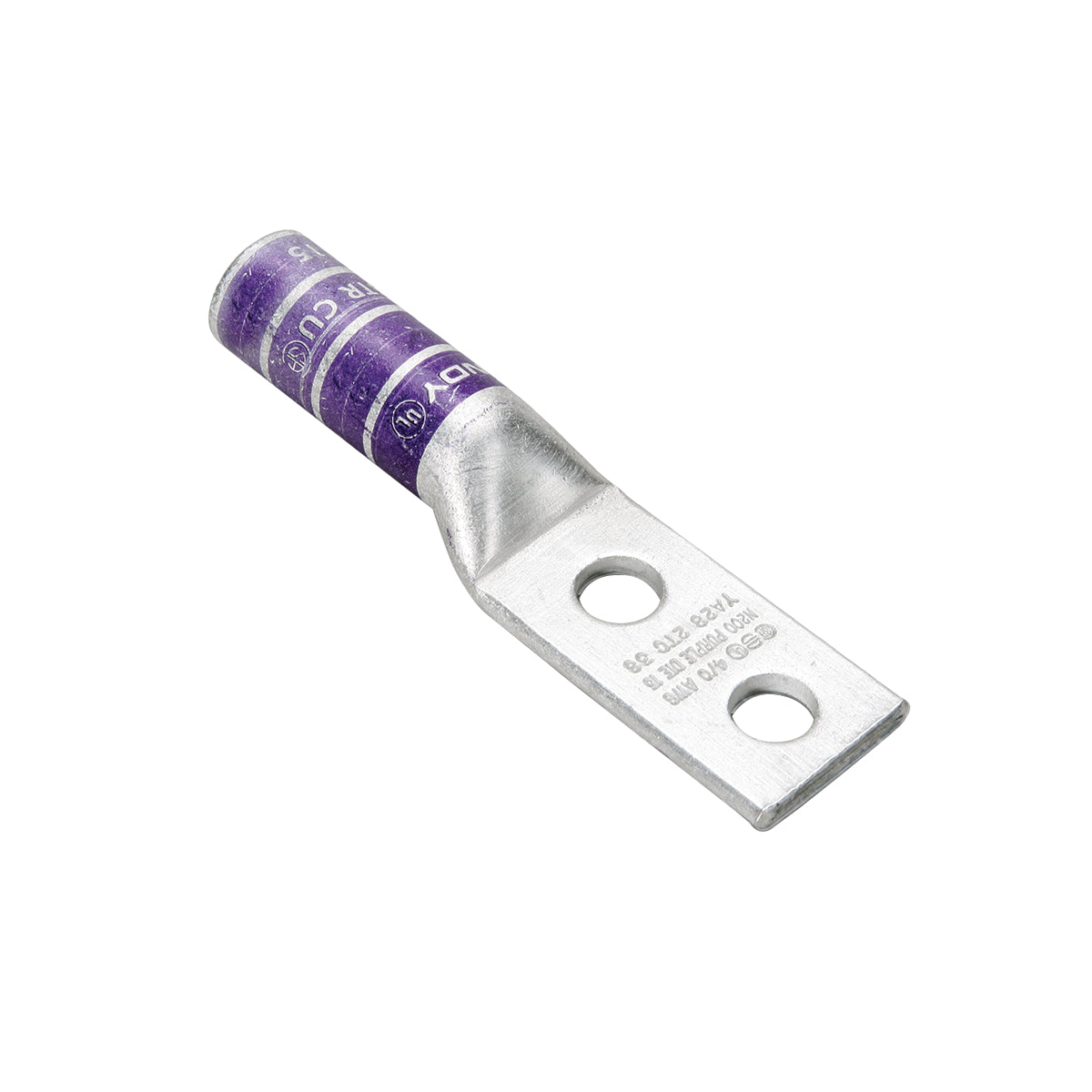

Hubbell YA6C2N YA-2N 2-Hole Compression Lug 6 AWG with Two 1/2 Stud Holes

Product Description

The Hubbell YA6C2N is a 2-Hole Compression Lug designed for electrical connections. This product is suitable for stranded copper conductors of size six AWG and operates effectively in various environments.

• Compatible with mechanical and hydraulic crimping tools
• High conductivity, tin plated copper for better performance
• Rated for voltages from six hundred VAC to thirty-five kV

Product Highlights

This compression lug is made from high conductivity electrolytic copper and is engineered to endure electrical and environmental conditions.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: YA6C2N

Technical Specifications

• Application: For flex conductor and code conductor
• Barrel Size: 1.12 inches
• Conductor Size: 6 AWG
• Overall Length: 4.4 inches
• Voltage Rating: 600 VAC to 35 kV
• Temperature Rating: 90 degrees Celsius
• Tongue Size: 0.83 inches wide by 0.12 inches thick
• Tongue Type: Standard/Straight
• Stud Size: 1/2 inch
• Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 486A/486B, CSA Certified
