Product Description

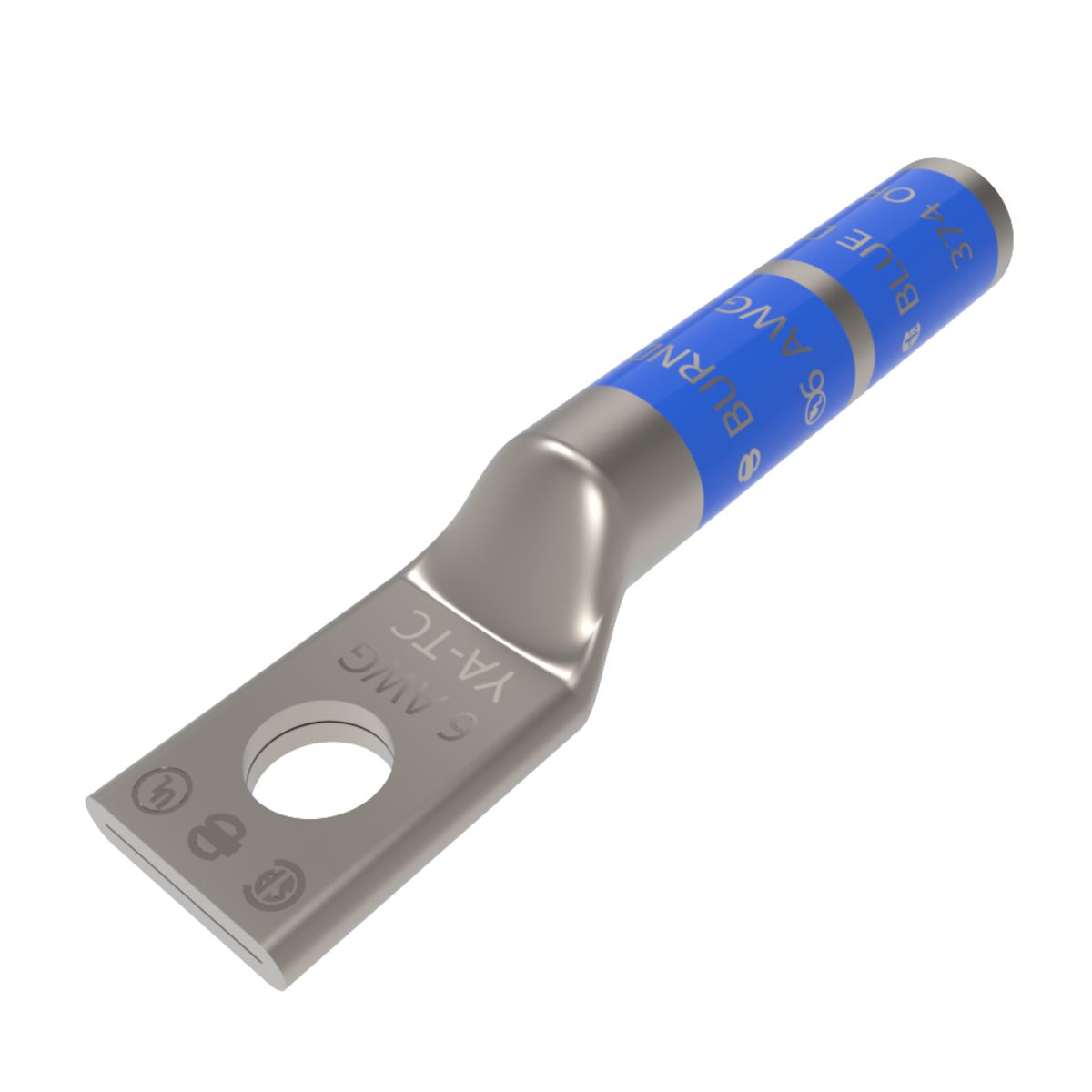

The Hubbell YA6C is a one-hole compression lug designed for stranded copper conductors sized six AWG. This lug is suitable for use in electrical applications requiring reliable connections.
- For stranded copper conductors only
- Rated for voltages from six hundred to thirty-five thousand VAC
- Features a straight tongue and tin-plated copper construction
Product Highlights
This compression lug is ideal for various electrical wiring connections. The design allows for a strong mechanical bond, ensuring durability and longevity in applications.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Part Number: YA6C
Technical Specifications
-
Application: For use with copper conductors
-
Barrel Size: 1.12 inches long
-
Color: Blue
-
Conductor Size: 6 AWG
-
Conductor Type: Stranded Copper
-
Die Code: 7
-
Material: Tin Plated Copper
-
Overall Length: 1.81 inches
-
Stud Size: 1/4 inch
-
Temperature Rating: 90 degrees Celsius
-
Tongue Size: 0.41 inches wide x 0.09 inches thick
-
Tongue Type: Straight
-
Voltage Rating: 600 to 35000 VAC
