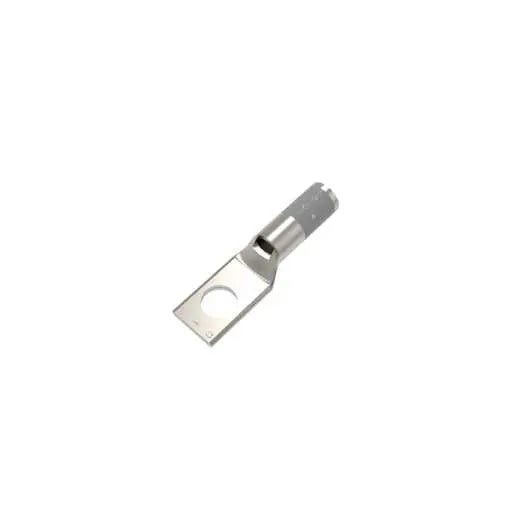

Hubbell YA4CL4BOX YA-L 1-Hole Compression Lug With Inspection Window, 4 AWG Stranded Copper Conductor, 3/8 in Stud

Name: Hubbell YA4CL4BOX YA-L 1-Hole Compression Lug With Inspection Window, 4 AWG Stranded Copper Conductor, 3/8 in Stud
Brand: HUBBELL
SKU: YA4CL4BOX
Price: 14.99 USD
Availability: InStock

Brand: HUBBELL

SKU: YA4CL4BOX

Availability: In Stock

Ships same day if ordered by 12 pm

Quantity:

$14.99; $14.99
Unit price: per

Manuals:

Manual

HAVE A QUESTION?

Our team is ready to help!

215-326-9845

Chat

Secure Payments
Easy Returns
Expert Advice
Fast Shipping

Description

Product Description

The Hubbell YA4CL4BOX is a compression lug designed for connecting 4 AWG stranded copper conductors. Its one-hole design simplifies installation in a variety of applications, including industrial and commercial electrical work.

Designed for 4 AWG stranded copper conductors.
Rated for voltages up to 35 kV.
Features an inspection window for easy verification of wire insertion.

Product Highlights

The YA4CL4BOX offers a reliable connection for electrical applications. It is UL listed and CSA certified, ensuring quality and safety standards are met.

Product Information

Standard Information

Manufacturer: Hubbell
UPC: 78181055250

Technical Specifications

Application

For code conductor

Barrel Size

0.34 in OD x 0.81 in L

Conductor Size

4 AWG

Die Code

Stud Size

3/8 in

Voltage Rating

600 VAC to 35 kV

Overall Length

1.92 in

Temperature Rating

90 deg C

Series

YA-L

Standards/Approvals

ARRA Compliant, Buy American Act Compliant, CSA Certified, RoHS Compliant, UL 467A/467B
