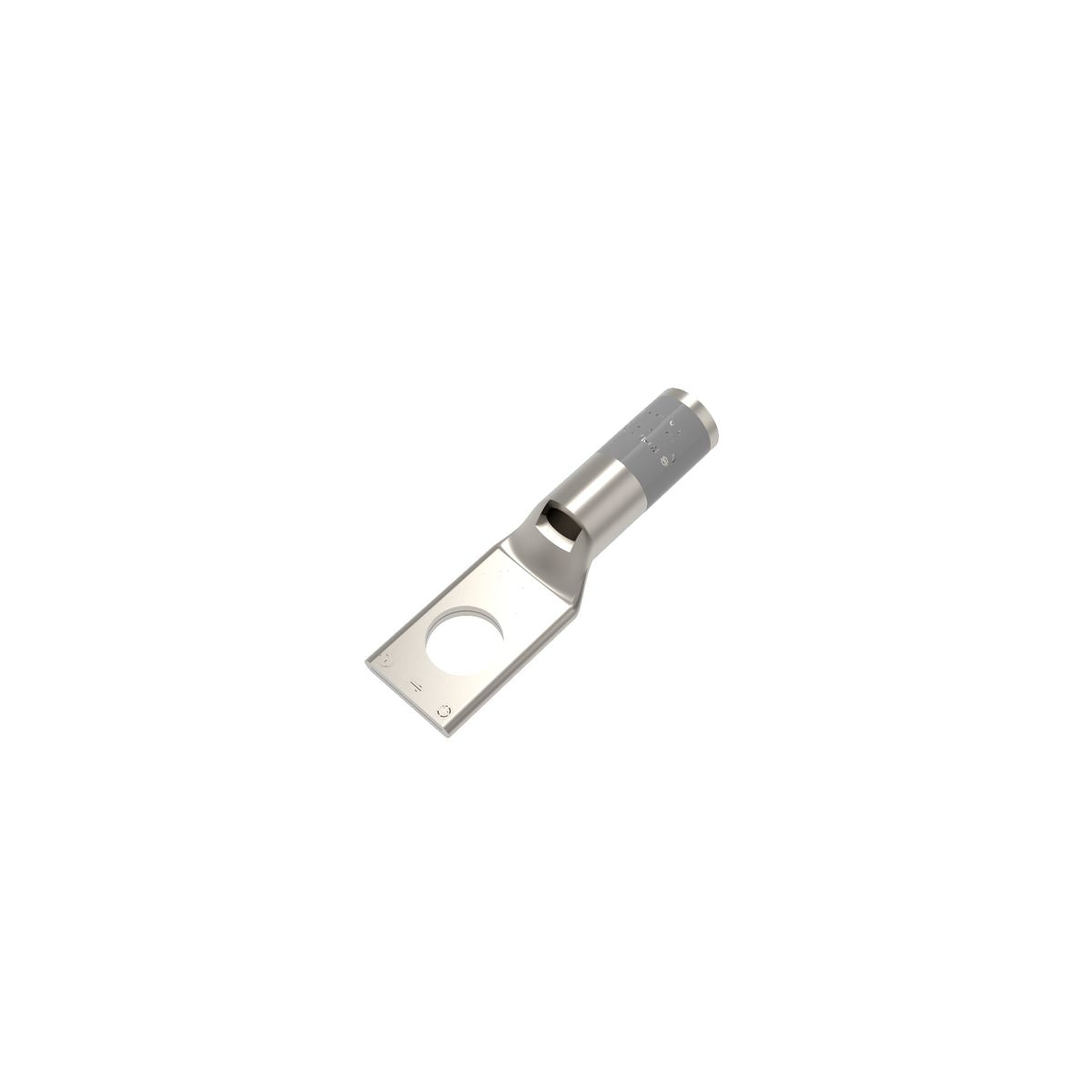

Hubbell YA4CL3BOX YA-L 1-Hole Compression Lug With Inspection Window, 4 AWG Stranded Copper Conductor

Product Description

The Hubbell YA4CL3BOX is a compression lug designed for terminating copper conductors in various electrical connections. It features a one-hole design suitable for attachment to a five sixteenths inch stud and is compatible with four AWG stranded copper wire. This product complies with UL and CSA standards for safety and performance.

• Rated for use from six hundred volts up to thirty-five thousand volts.
• Constructed from copper with a tin plating for enhanced conductivity.
• Includes an inspection window for easy visual verification of the connection.

Product Highlights

The YA4CL3BOX compression lug excels in heavy-duty applications across industrial, utility, and commercial sectors.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181055243

Technical Specifications

• Application: For code conductor
• Barrel Size: 0.34 in OD x 0.81 in length
• Color: Gray
• Conductor Size: 4 AWG
• Conductor Type: Stranded Copper
• Die Code: 8
• Material: Copper
• Overall Length: 1.79 in
• Series: YA-L
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, CSA Certified, RoHS Compliant, UL 467A/467B
• Temperature Rating: 90 deg C
• Tongue Size: 0.5 in W x 0.08 in thick
• Voltage Rating: 600 VAC to 35 kV
• Tongue Type: Standard/Straight
• Type: 1-Hole
