Product Description

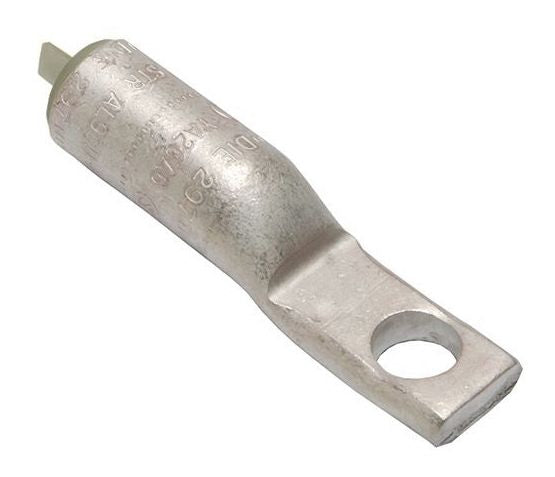

The Hubbell YA4CA6 is a BURNDY HYLUG Compression Lug designed for reliable electrical connections. It features a dual rated, uninsulated design, suitable for aluminum and stranded copper conductors. This lug supports a conductor size of four AWG and is rated for up to 35 kV, making it suitable for various applications.
- Electro plated tin aluminum construction
- 3/8 inch stud size
- Temperature rated to 90 degrees Celsius
Product Highlights
The YA4CA6 is effective for heavy-duty applications, ensuring durable and corrosion-resistant connections.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78181075190
Technical Specifications
-
Application: For use with copper and aluminum conductors
-
Barrel Size: 0.88 inches
-
Color: Green
-
Conductor Size: 4 AWG
-
Conductor Type: Aluminum/Stranded Copper
-
Die Code: 375
-
Material: Electro Plated Tin Aluminum
-
Overall Length: 2.32 inches
-
Stud Size: 3/8 inches
-
Voltage Rating: 600 VAC to 35 kV
-
Temperature Rating: 90 degrees Celsius
-
Tongue Size: 0.5 inches wide by 0.09 inches thick
