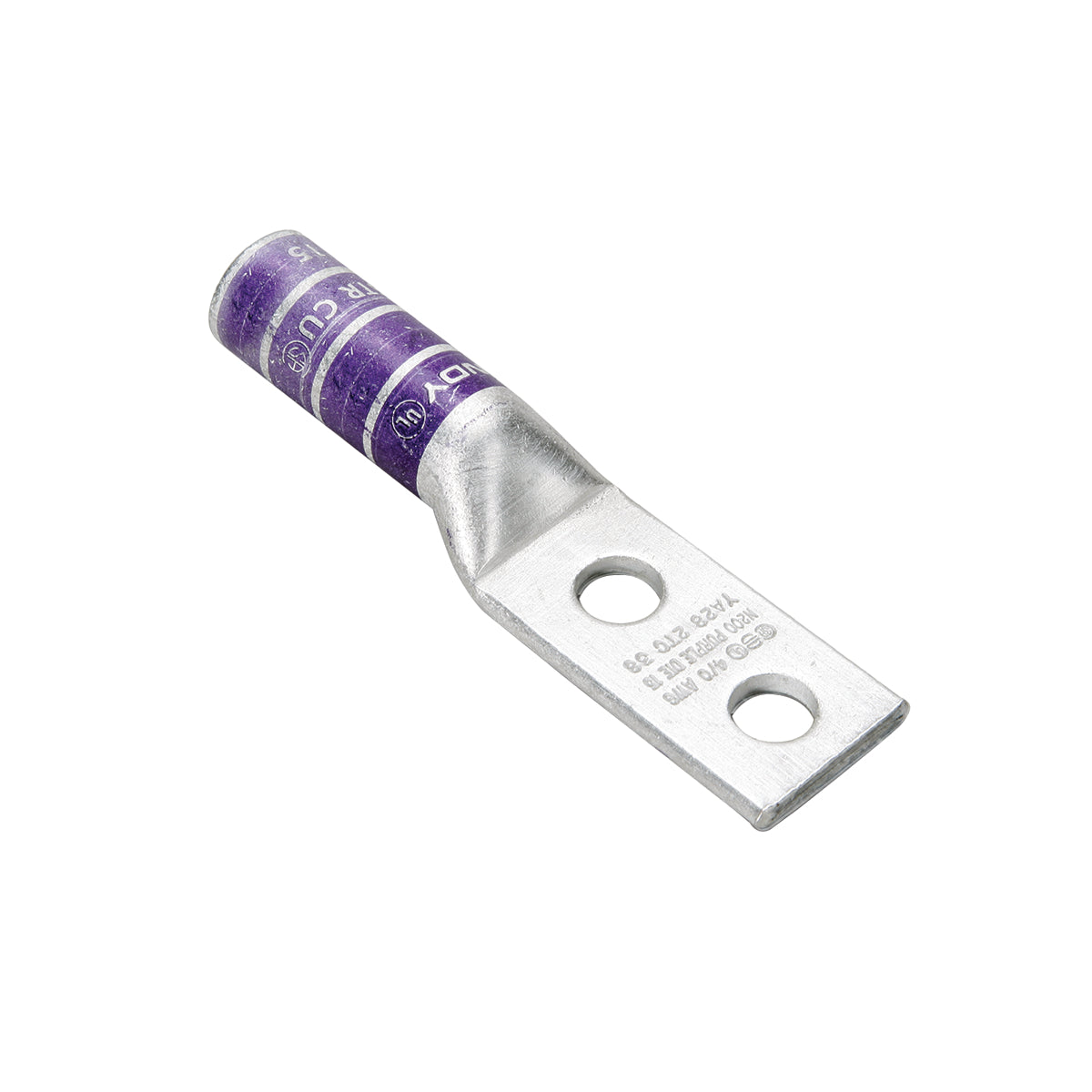

HUBBELL YA4C2N PIPE FITTINGS

Hubbell YA4C2N BUR COPPER COMP. LUG 4AWG W/TWO 1/2STUD HOLES

HUBBELL
Brand: HUBBELL
SKU: YA4C2N
Availability: In Stock

Ships same day if ordered by 12 pm

$29.32
$29.32
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Hubbell YA4C2N is a compression lug designed for use with four AWG stranded copper conductors. It features two holes for secure fastening. This product is suitable for electrical applications that require reliable connectivity.

  • Designed for four AWG stranded copper conductors
  • Holds up to 600 VAC and 35 kV
  • Compatible with standard crimping tools

Product Highlights

Reliable and durable compression lug for electrical connections.

Product Information

Standard Information

  • Manufacturer: Hubbell
  • Manufacturer Part Number: YA4C2N
Technical Specifications
Application
For code conductor
Barrel Size
1.12 inches long
Color
Gray
Conductor Size
4 AWG
Conductor Type
Stranded Copper
Die Code
8
Material
Tin Plated Copper
Mounting Hole Size
0.52 inches
Overall Length
4.45 inches
Series
YA-2N
Specifications
0.83 inches wide pad, 1-3/16 inches long wire strip, Tin-Electro Plated, 1-3/4 inches hole spacing
Standards/Approvals
ARRA Compliant, BAA Compliant, RoHS Compliant, UL 468A/468B, CSA Certified, Buy American Act Compliant
Stud Size
1/2 inches
Temperature Rating
90 degrees Celsius
Tongue Size
0.81 inches wide
Tongue Type
Standard
Type
2-Hole
Voltage Rating
600 VAC to 35 kV
