Product Description

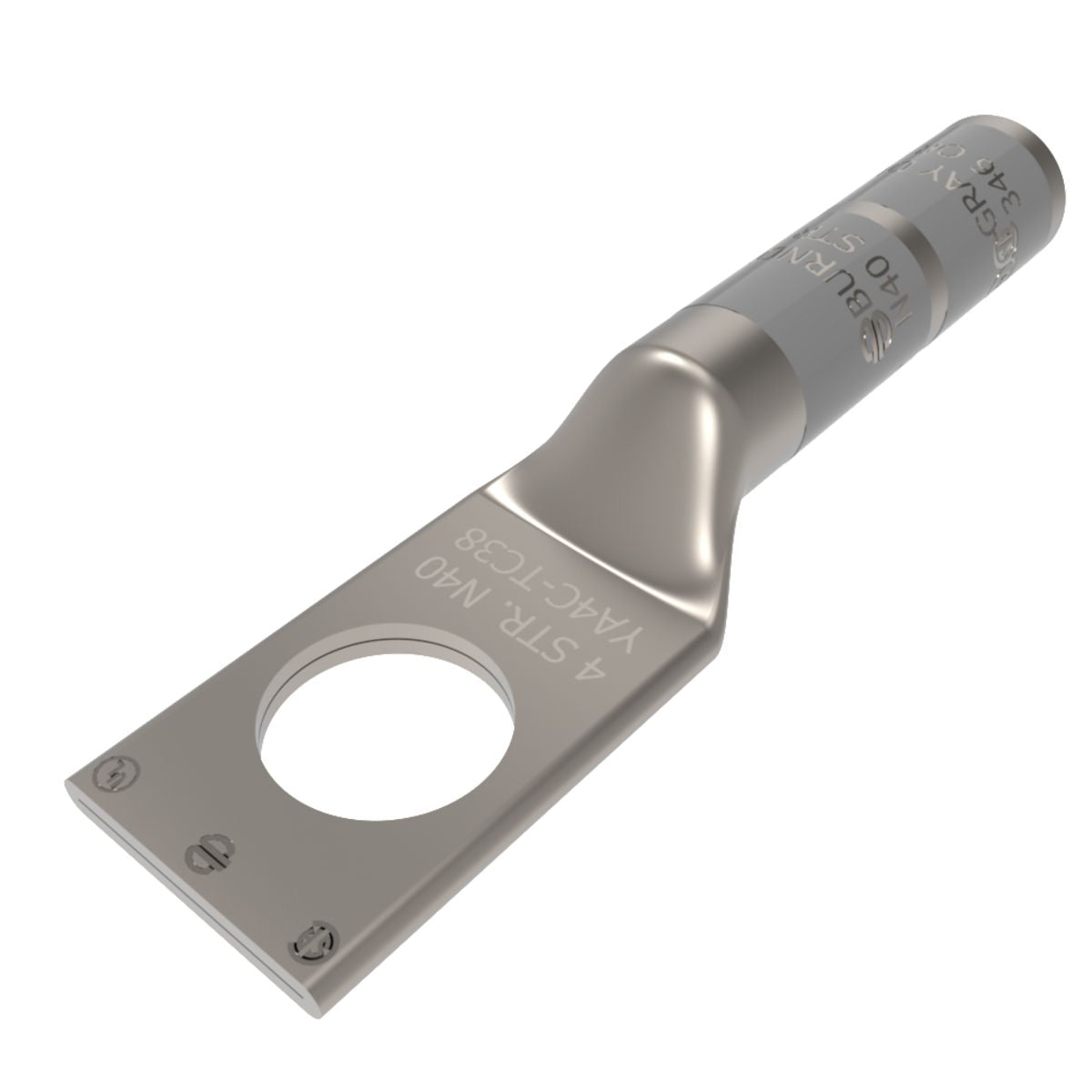

The Hubbell YA4C is a BURNDY compression lug designed for 4 AWG stranded copper conductors. This uninsulated 1-hole lug features a die code of 8/346 and is suitable for voltages ranging from 600 VAC to thirty-five kV. It uses a one-quarter inch stud for secure installation.
- Application for code conductor
- Standard/Straight tongue type
- High temperature rating up to ninety degrees Celsius
Product Highlights
This compression lug provides reliable electrical connections in various environments. It operates effectively in high temperatures and is resistant to corrosion.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78181050135
Technical Specifications
-
Barrel Size: 1.12 inches long
-
Overall Length: 1.87 inches
-
Temperature Rating: 90 degrees Celsius
-
Voltage Rating: 600 VAC to 35 kV
-
Conductor Size: 4 AWG
-
Stud Size: 1/4 inch
-
Material: Tin Plated Copper
-
Standards/Approvals: UL Listed, RoHS Compliant, CSA Certified
