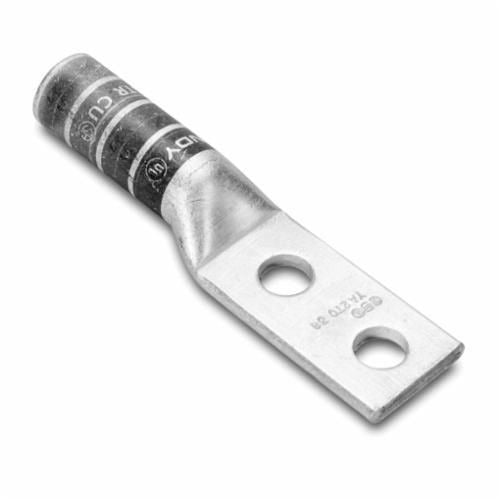

Hubbell YA4C-2TC38 4 AWG Two-Hole Compression Lug (3/8 in Stud, 1 in Spacing)

Product Description

The Hubbell YA4C-2TC38 is a two-hole copper compression lug for 4 AWG stranded conductors. It has a long, chamfered barrel with an internal chamfer and tin electro-plated finish, overall length 3.26 in and barrel length 1.12 in. The lug accepts 3/8 in studs with 1 in spacing, is rated for 600 VAC to 35,000 V and 90°C, and is UL/CSA certified for conductor terminations.

• Two-hole electrolytic copper compression lug for 4 AWG stranded conductors with tin electro-plated finish
• 3/8 in stud size with 1 in stud hole spacing; long chamfered/skived barrel (barrel length 1.12 in, overall length 3.26 in)
• Voltage rating 600 VAC to 35,000 V (35 kV), temperature rating 90 °C; UL and CSA certified, die index 8/346

Product Highlights

2-hole tin-plated copper compression lug for 4 AWG, 3/8 in stud, 1 in spacing, 600 VAC–35 kV, 90 °C, UL/CSA certified

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: YA4C-2TC38
• Country of Origin: USA
