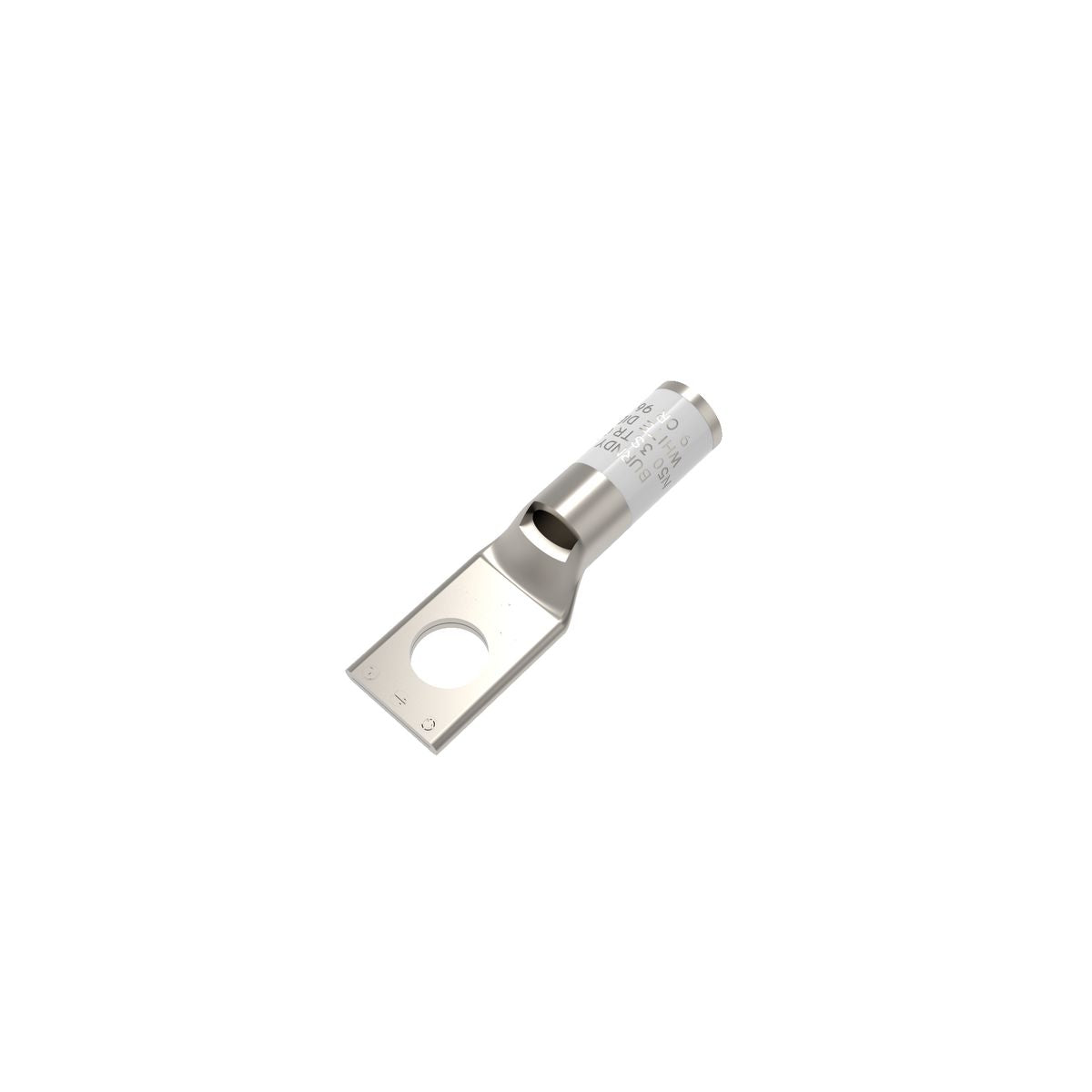

Hubbell YA3CL YA-L 1-Hole Compression Lug With Inspection Window 3 AWG Copper 5/16 in Stud

Product Description

The Hubbell YA3CL is a compression lug designed for solid or stranded copper conductors. This product is mainly used in electrical connections for heavy-duty industrial, utility, commercial, and telecommunications applications. It is made from durable copper and ensures a reliable electrical connection. This compression lug meets UL 486A standards and is CSA certified for voltages up to thirty-five kilovolts.

• Utilizes a short barrel design for easier installation
• Suitable for three AWG stranded and two AWG solid conductors
• Temperature rated for up to ninety degrees Celsius

Product Highlights

The YA3CL compression lug features a straightforward cable preparation process for permanent and inspectable terminations.

Product Information

Standard Information

• Manufacturer: Hubbell
• Material: Copper

Technical Specifications

• Application: For code conductor
• Barrel Size: 0.38 inches OD x 0.88 inches L
• Conductor Size: 3 AWG
• Overall Length: 1.88 inches
• Voltage Rating: 600 VAC to 35 kV
• Stud Size: 5/16 inches
• Temperature Rating: 90 degrees Celsius
• Standards/Approvals: ARRA Compliant, CSA Certified, UL 467
