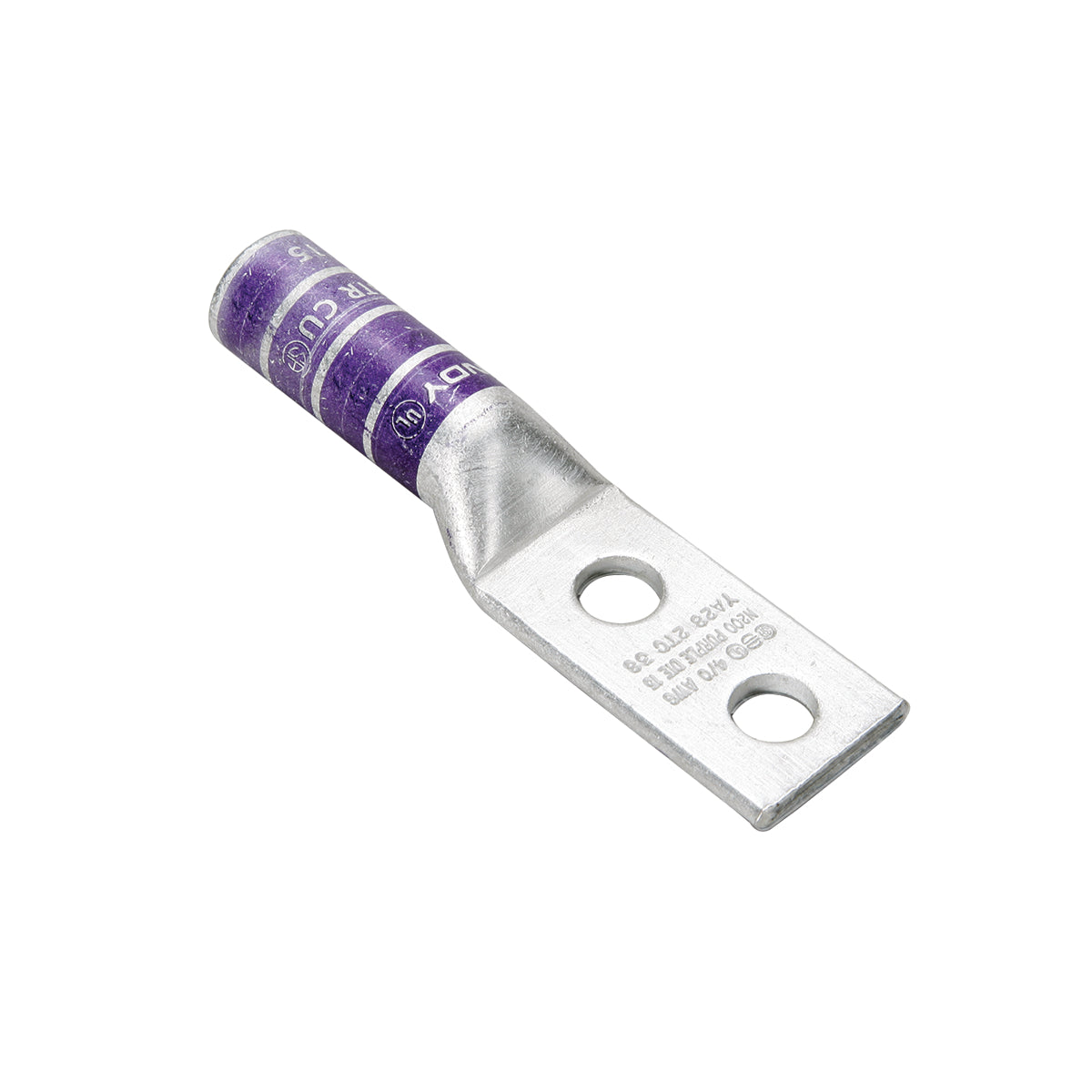

Hubbell YA3C2N BUR Copper Comp.Lug 3AWG & 2 SOL.W/Two 1/2Stud Holes

Product Description

The Hubbell YA3C2N is a BUR compression lug designed for stranded copper conductors with a three AWG size. This compression lug features two holes for secure attachment and can handle voltage ratings from six hundred volts to thirty-five kilovolts. This component is crucial in forming reliable electrical connections, especially in industrial and electrical installations.

• Includes mechanical and hydraulic tools for easy installation.
• Designed for use with stranded copper conductors.
• Meets ARRA, RoHS, and UL standards.

Product Highlights

The YA3C2N compression lug ensures high conductivity and can withstand various environmental conditions.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: YA3C2N

Technical Specifications

• Type: 2-Hole
• Conductor Size: 3 AWG
• Voltage Rating: 600 VAC to 35 kV
• Overall Length: 4.62 inches
• Stud Size: 1/2 inches
• Temperature Rating: 90 deg C
• Material: Tin Plated Copper
• Barrel Size: 1-1/4 inches
• Tongue Size: 0.83 inches W x 0.12 inches THK
• Hole Spacing: 1-3/4 inches
