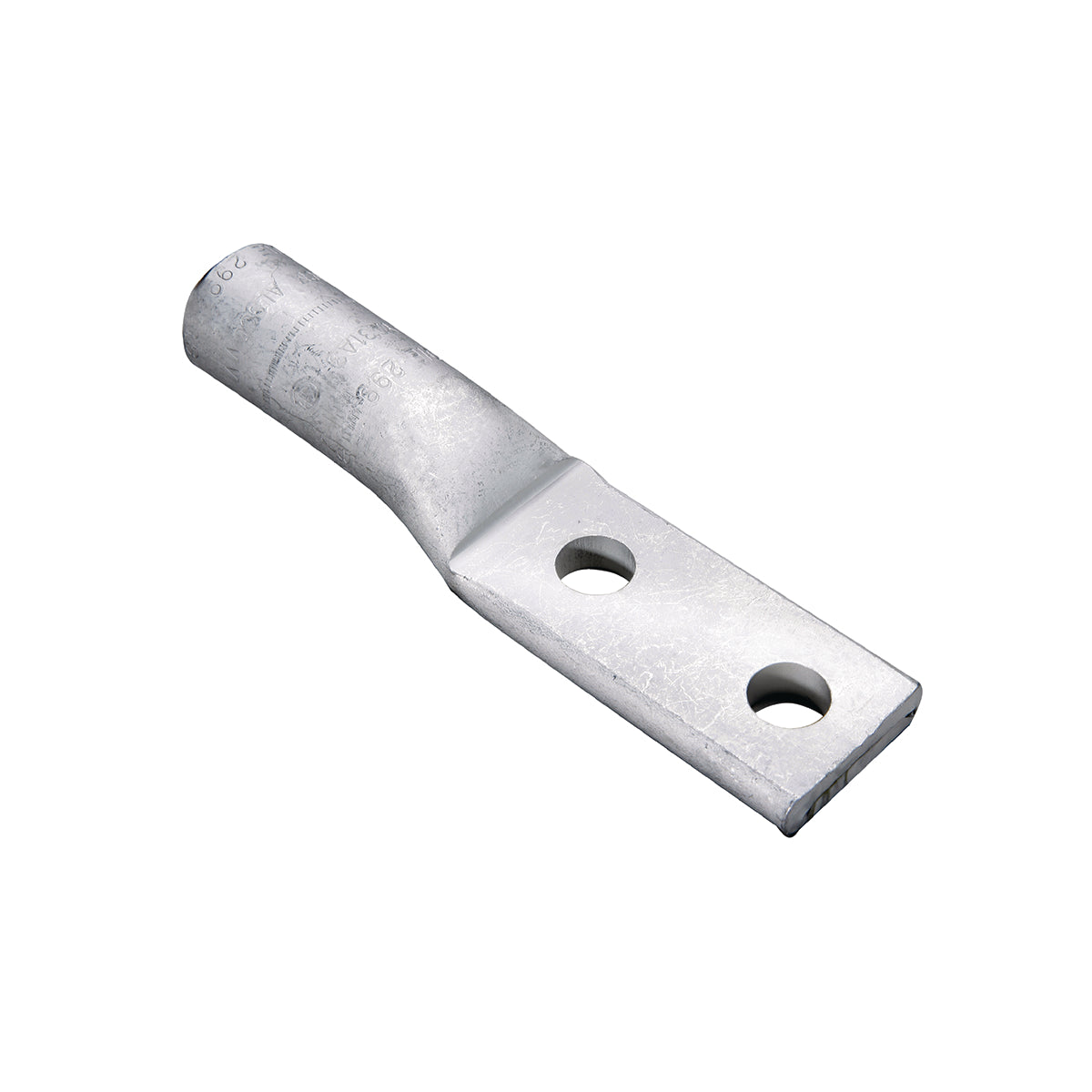

Hubbell YA39A5 BURNDY 750 AL 2-HOLE 1/2

Product Description

BURNDY HYLUG YA39A5 is a compression lug suitable for both aluminum and copper conductors. It features a two-hole uninsulated design that allows for secure connections in electrical applications. This lug is rated for a voltage range of six hundred to thirty-five thousand volts, making it versatile for various environments.

• Designed for 700 kcmil conductors
• Die code 936 ensures compatibility with various crimping tools
• Constructed from high conductivity, wrought aluminum for durability

Product Highlights

This product provides a reliable electrical connection that withstands current surges, extreme temperatures, and vibrations.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181076202

Technical Specifications

• Application: For aluminum and copper conductors
• Barrel Size: 2.46 inches long
• Color: Yellow
• Conductor Size: 700 kcmil
• Conductor Type: Aluminum/Copper
• Die Code: 936
• Material: Aluminum
• Overall Length: 7.07 inches
• Series: YA-A
• Specifications: 2-7/8 inches wire strip
• Stud Size: 1/2 inches
• Temperature Rating: 90 degrees C
• Tongue Size: 3.15 inches long x 1.62 inches wide x 0.43 inches thick
• Tongue Type: Standard/Straight
• Type: 2-Hole Uninsulated
• Voltage Rating: 600 VAC to 35 kV
