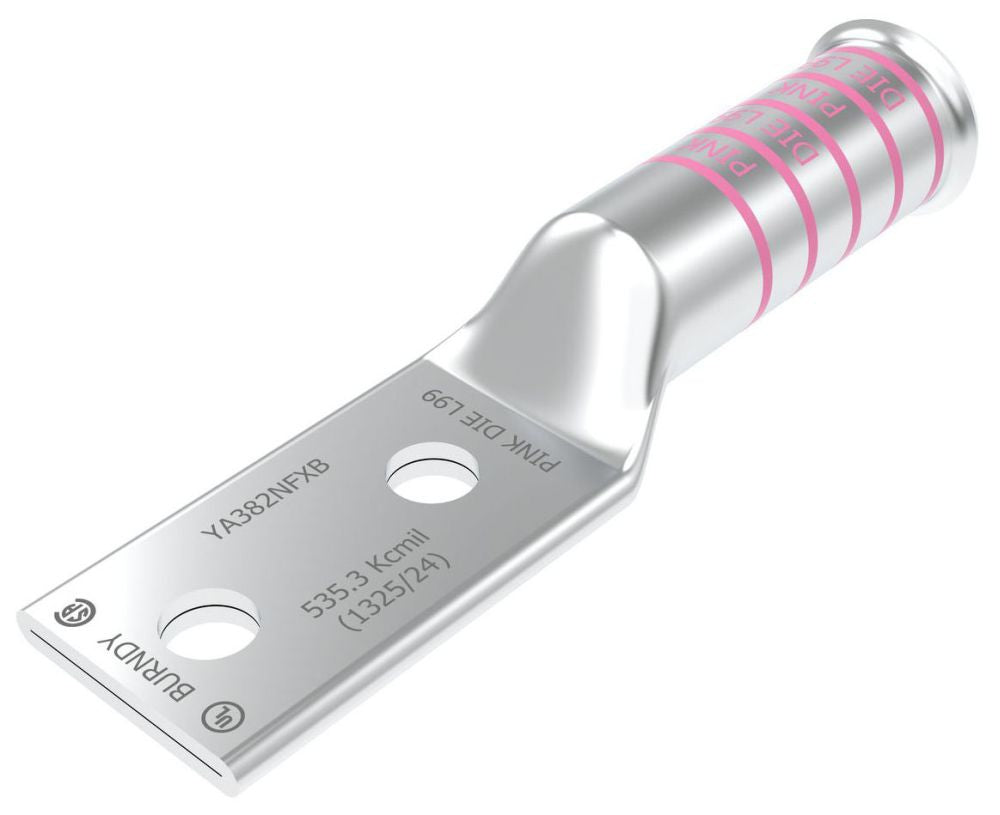

Hubbell YA382NFXB BURNDY HYLUG-BELLED-500FLX-NEMA 78181003993

Product Description

The Hubbell YA382NFXB is a BURNDY HYLUG Compression Lug designed for flexible copper conductors. This product is suitable for a range of applications where reliable electrical connections are needed.

• Flexible copper conductor, 535.3 kcmil
• Voltage rating of 600 VAC to 35 kV
• Electro-tin plated for protection

Product Highlights

This compression lug is designed for use with flexible conductors. It features a standard tongue, is electro-tin plated, and has a long barrel for secure connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: YA382NFXB

Technical Specifications

• Application: For flex conductor
• Barrel Size: 3.08 inches L
• Color: Pink
• Conductor Size: 535.3 kcmil
• Conductor Type: Flexible Copper
• Die Code: L99
• Material: Tin Plated Copper
• Overall Length: 7.01 inches
• Series: YA-N-FX
• Stud Size: 1/2 inch
• Temperature Rating: 90 degrees C
• Tongue Size: 1.84 inches W x 0.26 inches THK
• Tongue Type: Standard/Straight
• Voltage Rating: 600 VAC to 35 kV
