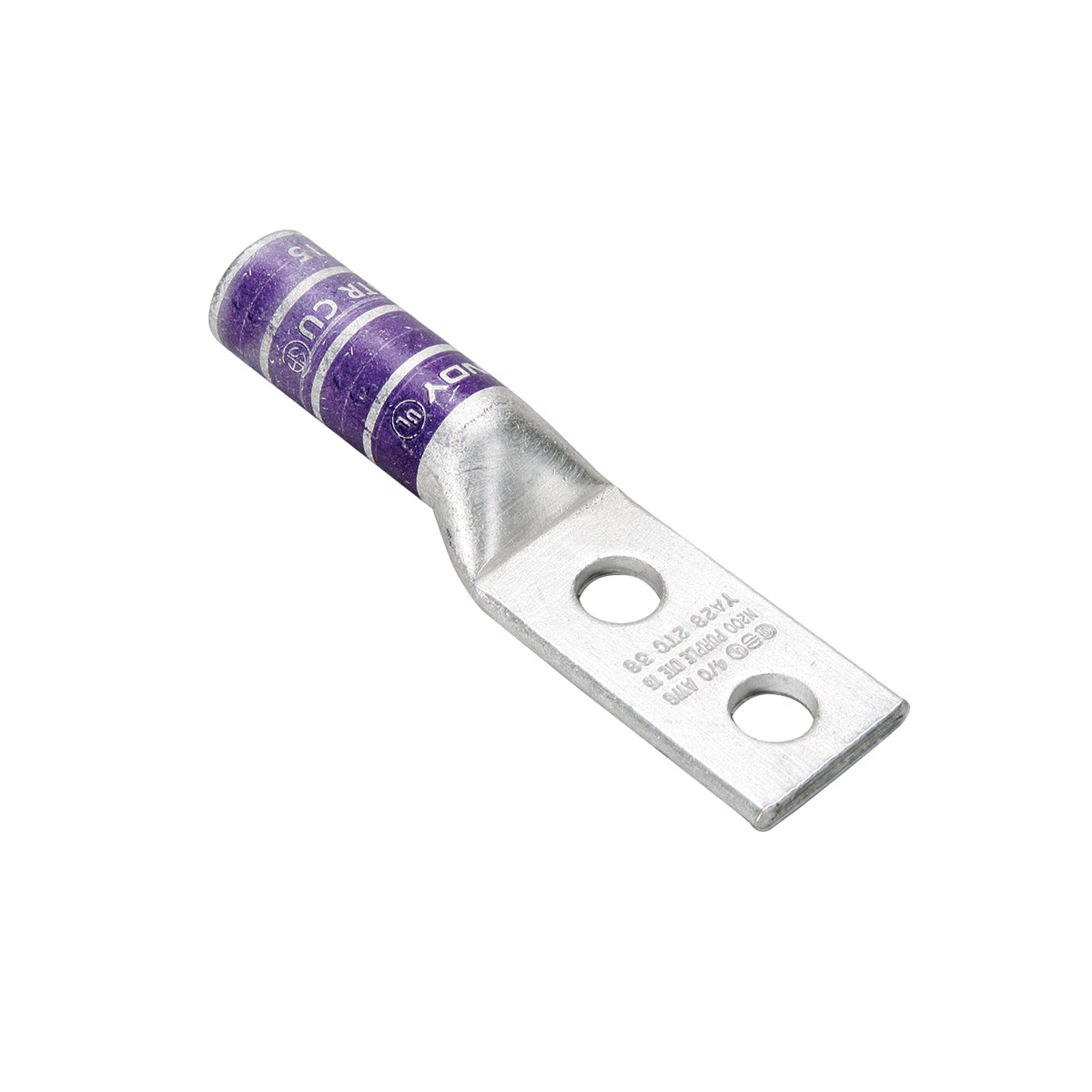

Hubbell YA362N YA-2N 2-Hole Compression Lug 600 kcmil

Product Description

The Hubbell YA362N is a two-hole compression lug designed for stranded copper conductors up to six hundred kcmil. This unit meets high standards for electrical connections, making it suitable for various applications, including residential and commercial electrical systems.

• Designed for code conductors
• Can handle 600 VAC to 35 kV voltage rating
• Constructed with tin plated copper for added durability

Product Highlights

This compression lug is essential for ensuring secure electrical connections in a wide range of settings.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: YA362N

Technical Specifications

• Type: 2-Hole
• Application: For code conductor
• Conductor Size: 600 kcmil
• Stud Size: 1/2 in
• Barrel Size: 2.69 in L
• Overall Length: 6.59 in
• Tongue Size: 1.74 in W x 0.27 in THK
• Voltage Rating: 600 VAC to 35 kV
• Temperature Rating: 90 deg C
• Die Code: 22/472
• Material: Tin Plated Copper
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 468A/468B, CSA Certified
