Description

Product Description

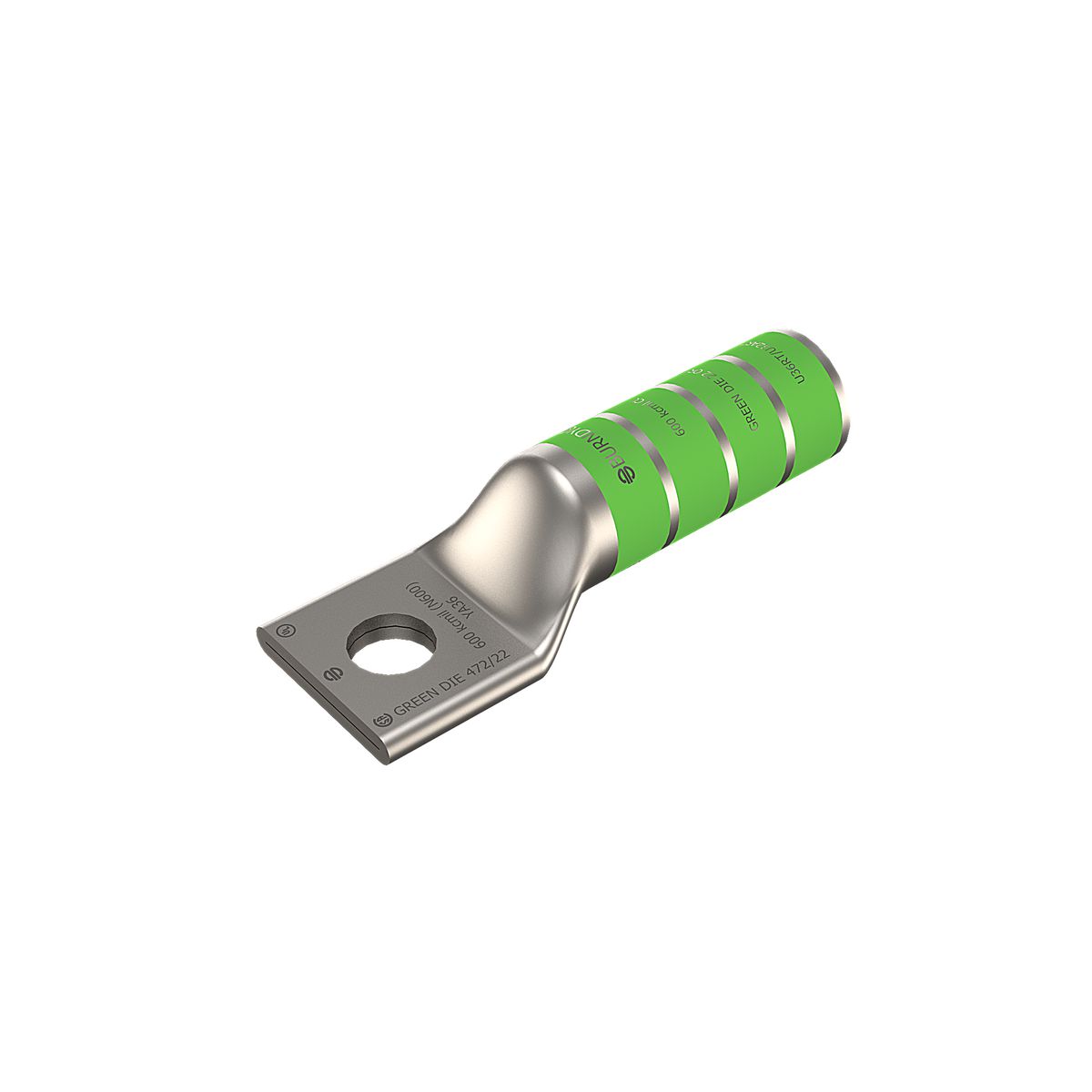

The Hubbell YA36 is a BURNDY compression lug designed for effective electrical connections. This 1-hole uninsulated compression lug accommodates stranded copper conductors up to six hundred kcmil. It features a five-eighths inch stud size for secure and reliable fastening.

  • Compatible with stranded copper conductors
  • Rated for voltages up to thirty-five kilovolts
  • Includes a tin-plated copper finish for improved conductivity

Product Highlights

This product supports various electrical applications, ensuring efficient connectivity and compliance with industry standards.

Product Information

Standard Information

  • Brand: Hubbell
  • MPN: YA36
Technical Specifications
Application
For code conductor
Barrel Size
2.69 inches long
Color
Green
Conductor Size
600 kcmil
Conductor Type
Stranded Copper
Die Code
22/472
Material
Tin Plated Copper
Overall Length
6.59 inches
Series
YA Series
Specifications
1.74 inches pad
Standards/Approvals
ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 468A/468B, CSA Certified
Stud Size
5/8 inch
Temperature Rating
90 degrees Celsius
Tongue Size
1.74 inches wide x 0.27 inches thick
Tongue Type
Standard/Straight
Type
1-Hole Uninsulated
Voltage Rating
600 VAC to 35 kV
