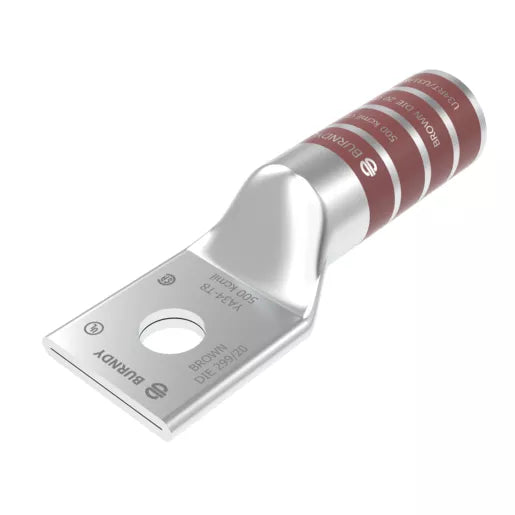

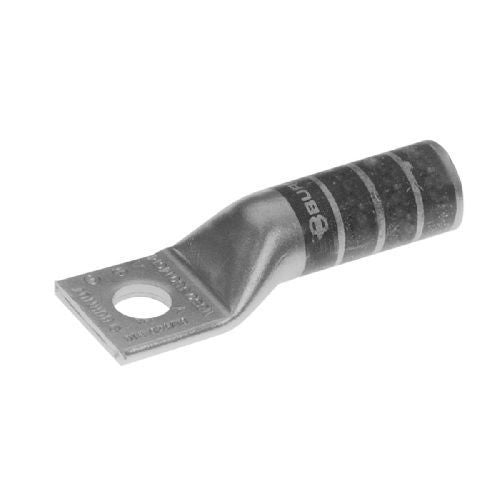

HUBBELL YA34T8 HYLUG 1-Hole Compression Terminal

Product Description

The HUBBELL YA34T8 is a HYLUG 1-hole compression terminal suitable for 500 kcmil stranded copper conductors. This terminal features a long barrel design that allows for multiple crimps, increasing the strength of your connections. The internal chamfer at the wire entry ensures easy and smooth wire insertion while minimizing the risk of strand damage. It is also electro-tin plated to prevent galvanic corrosion, ensuring durability and longevity.

• Designed for 500 kcmil stranded copper conductors.
• Long barrel design enhances crimping effectiveness.
• Electro-tin plating reduces the risk of corrosion.

Product Highlights

The HUBBELL YA34T8 terminal provides reliable electrical connections for various applications.

Product Information

Standard Information

• Brand: HUBBELL
• MPN: YA34T8

Technical Specifications

• Material: Copper
• Conductor Size: 500 kcmil
• Conductor Type: Stranded Copper
• Voltage Rating: 600 VAC to 35 kV
• Temperature Rating: 90 deg C
• Mounting Hole Size: 0.56 inches
• Color: Brown
• Barrel Size: 1.06 inches OD x 2.25 inches L
