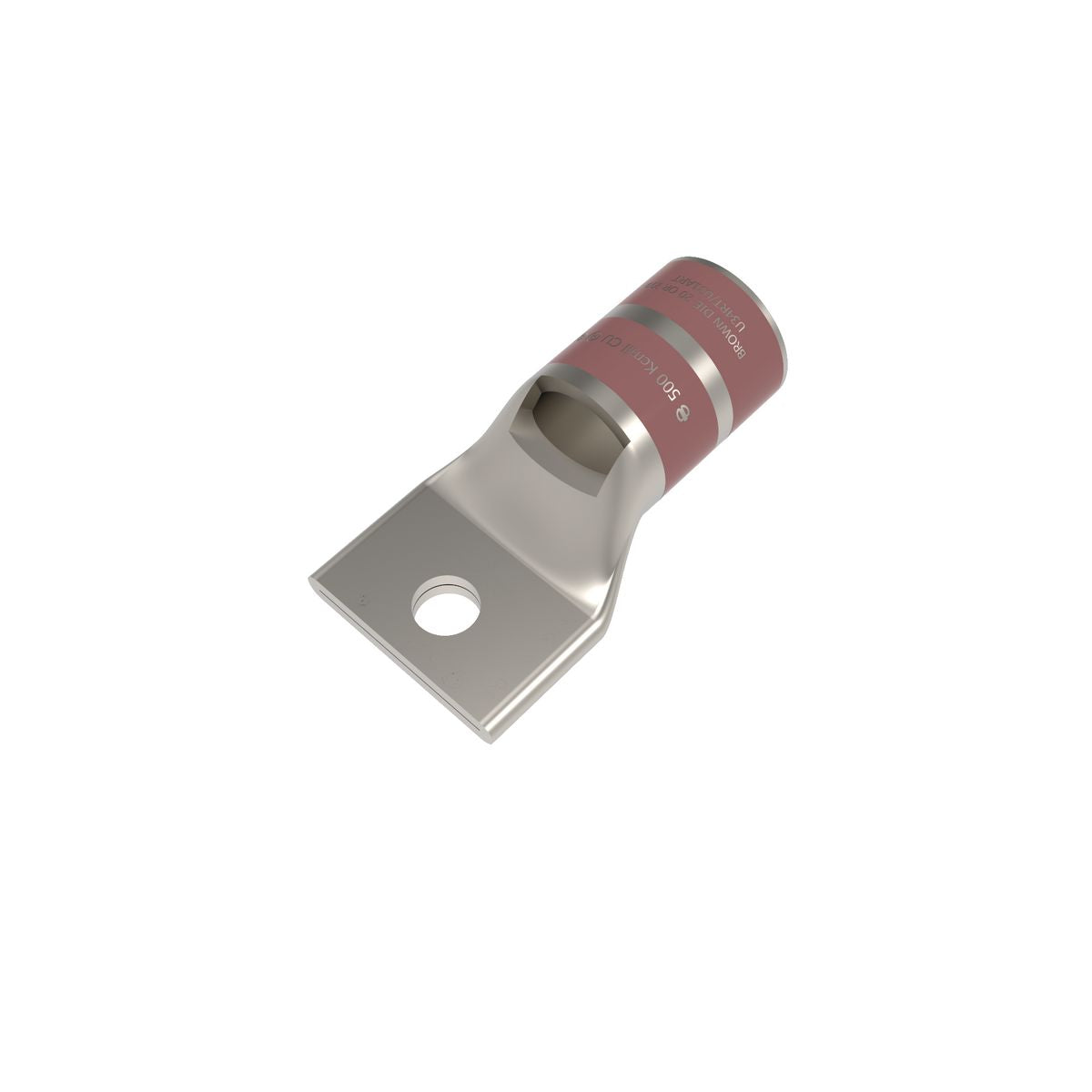

Hubbell YA34L6 YA-L 1-Hole Compression Lug With Inspection Window, 500 kcmil Stranded Copper Conductor

Product Description

Hubbell YA34L6 is a 1-Hole Compression Lug designed for stranded copper conductors. This lug is suitable for conductor sizes of 500 kcmil and is compliant with UL and CSA standards. It is intended for heavy-duty applications in industrial, utility, and commercial fields.

• Meets standards for 600 VAC to 35 kV
• Includes a standard tongue size of 1.55 inches width
• Constructed from copper with a temperature rating of 90 degrees Celsius

Product Highlights

The YA34L6 is engineered for easy installation and provides a secure connection for various electrical tasks.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: YA34L6

Technical Specifications

• Application: For code conductor
• Barrel Size: 1.06 inches OD x 1.27 inches L
• Color: Brown
• Conductor Size: 500 kcmil
• Conductor Type: Stranded Copper
• Die Code: 20/299
• Material: Copper
• Overall Length: 3.12 inches
• Series: YA-L
• Specifications: 0.53 inches Stud Hole Spacing, 1-7/16 inches L Wire Strip, Tin Plated
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, CSA Certified, RoHS Compliant, UL 467/467A/467B
• Stud Size: 1/2 inches
• Temperature Rating: 90 degrees Celsius
• Tongue Size: 1.55 inches W x 0.23 inches THK
• Tongue Type: Standard/Straight
• Type: 1-Hole
• Voltage Rating: 600 VAC to 35 kV
