Product Description

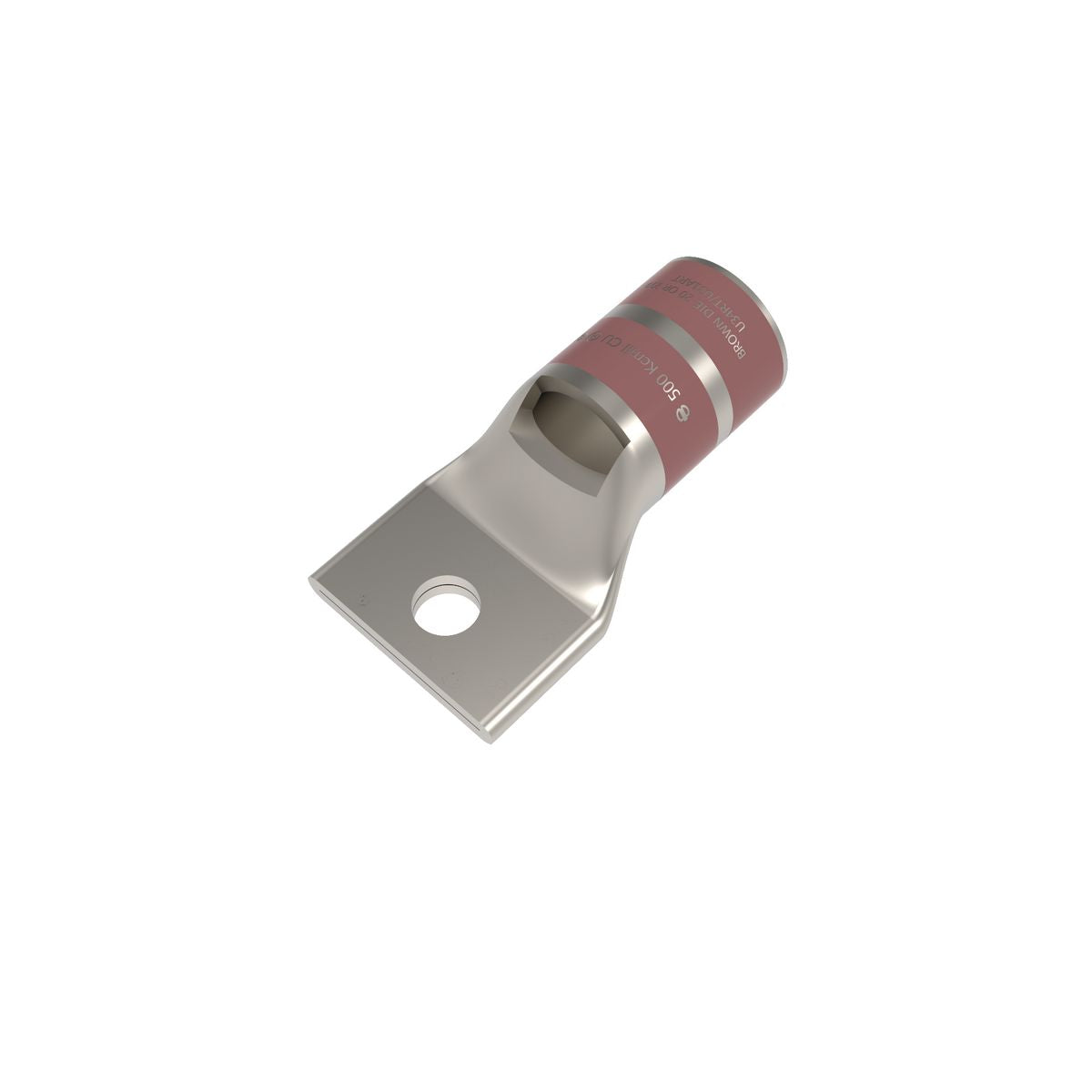

The Hubbell YA34L37 is a BURNDY HYLUG compression lug designed for electrical connections. This product accommodates stranded copper conductors sized at 500 kcmil, ensuring a solid and lasting connection. With a diameter of three-eighths inches for stud size, this lug is ideal for various applications.
- UL listed and CSA certified for safety
- Capable of handling voltages from 600 VAC to 35 kV
- Temperature rated for up to 90 degrees Celsius
Product Highlights
This compression lug is engineered for ease of installation. It features an inspection window for easy verification of cable termination and an internal chamfer for better wire insertion.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Part Number: YA34L37
Technical Specifications
-
Application: For code conductor
-
Barrel Size: 1.06 inches OD x 1.27 inches L
-
Color: Brown
-
Conductor Size: 500 kcmil
-
Conductor Type: Stranded Copper
-
Die Code: 20
-
Overall Length: 2.87 inches
-
Voltage Rating: 600 VAC to 35 kV
-
Temperature Rating: 90 degrees Celsius
-
Tongue Size: 1.55 inches W x 0.23 inches THK
-
Standards/Approvals: UL 467, CSA Certified, ARRA Compliant, RoHS Compliant
