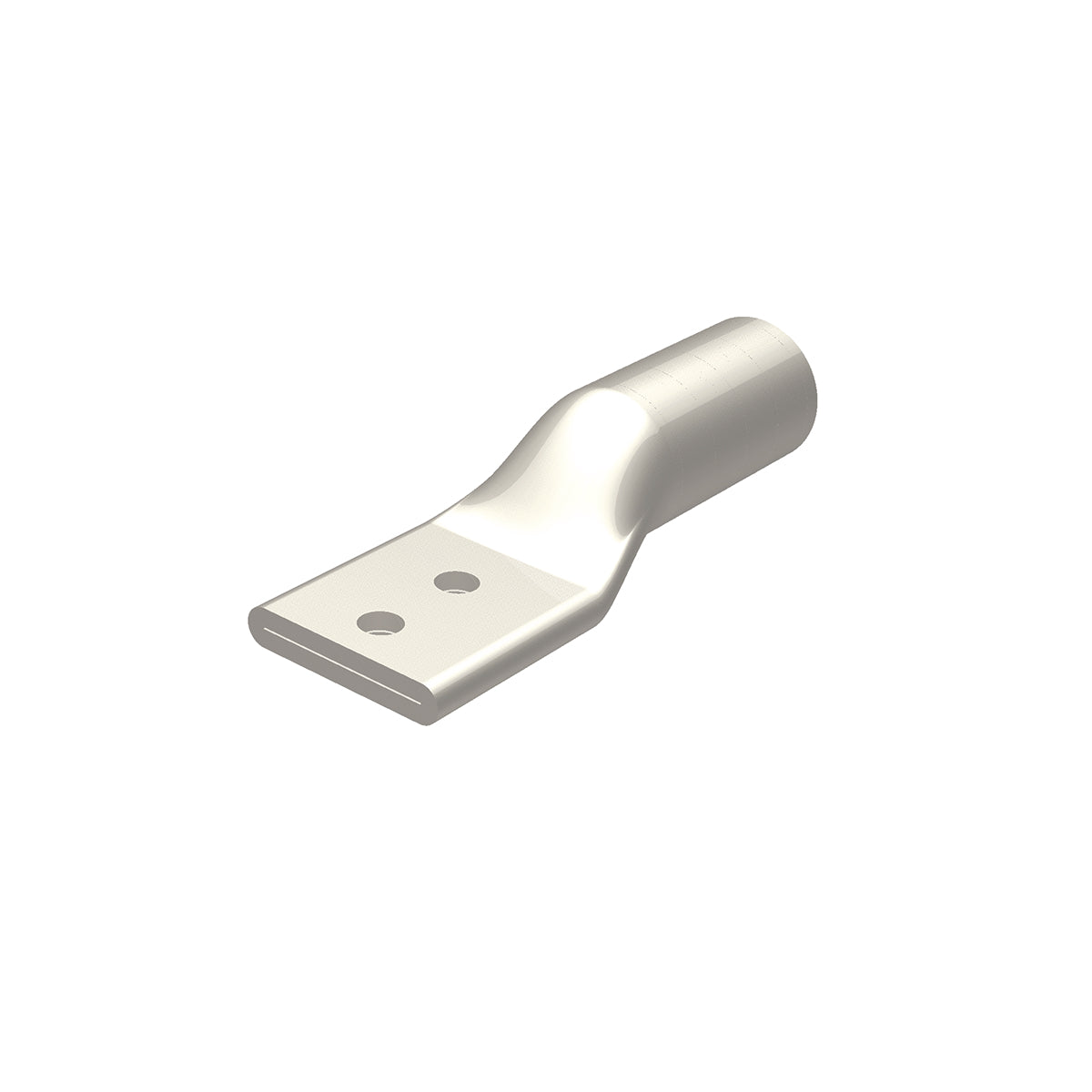

Hubbell YA34A3 YA-E 2-Hole Uninsulated Compression Lug 500 kcmil Copper/Stranded Aluminum

Product Description

The Hubbell YA34A3 is a 2-hole uninsulated compression lug designed for use with both aluminum and copper conductors. This product supports conductor sizes up to five hundred kcmil. The lug is built from high conductivity aluminum and features a standard straight tongue, ensuring reliable electrical connections.

• Compatible with Y644HSXT, Y81KFT, Y81KFTMBH, PAT81KFT-18V crimpers.
• Voltage rating of six hundred volts alternating current to thirty-five thousand volts.
• Includes factory prefilled PENETROX® oxide inhibiting compound for enhanced performance.

Product Highlights

The Hubbell YA34A3 compression lug provides durable connections suitable for various electrical applications. Designed to withstand environmental conditions, this connector offers high conductivity and resistance to corrosion.

Product Information

Standard Information

• Application: For aluminum and copper conductors
• Manufacturer: Hubbell

Technical Specifications

• Barrel Size: 2.34 inches long
• Conductor Size: 500 kcmil
• Stud Size: 1/2 inch
• Overall Length: 6.8 inches
• Temperature Rating: 90 degrees Celsius
• Die Code: 300
• Voltage Rating: 600 VAC to 35 kV
• Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, UL 468A/468B, CSA Certified
