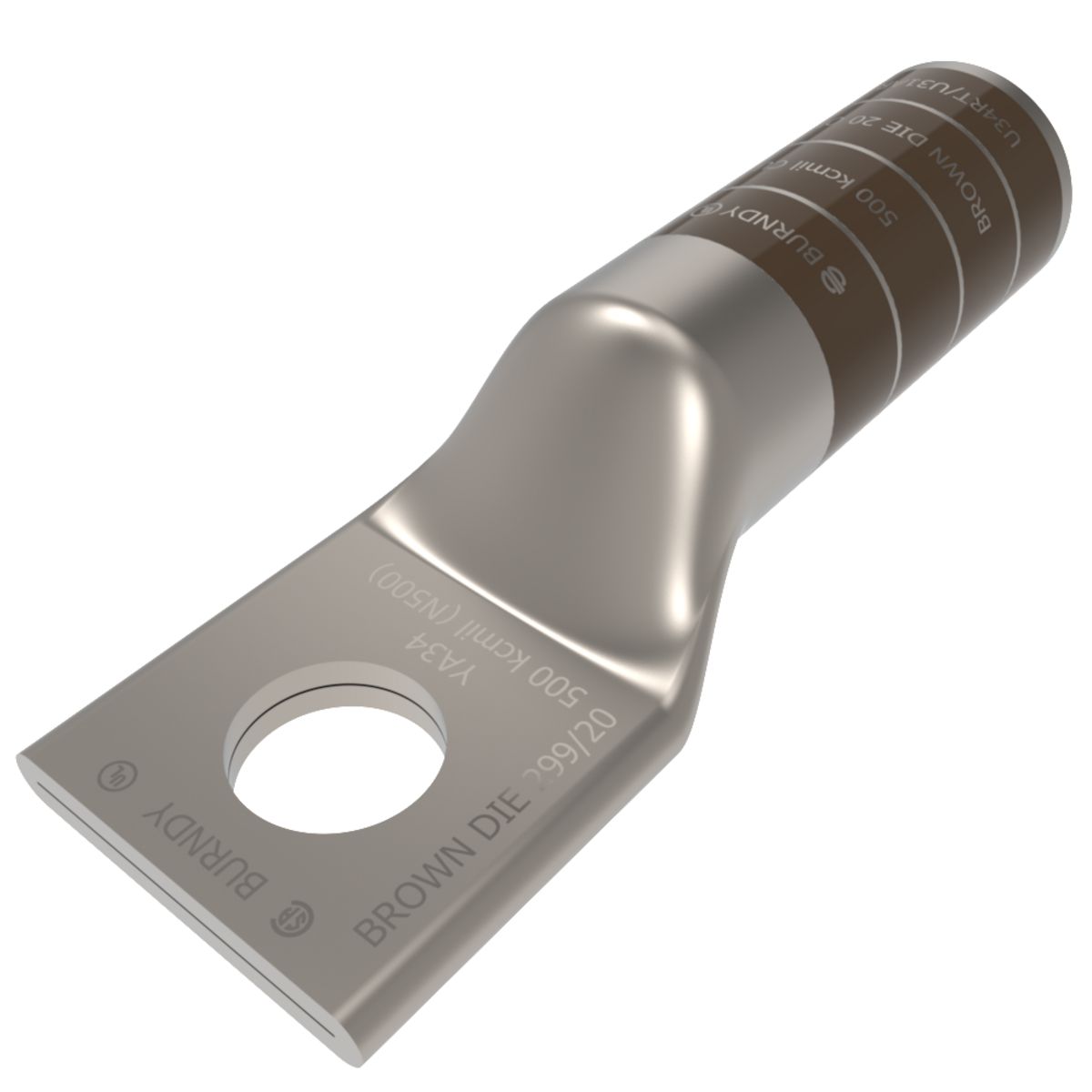

Hubbell YA34 1 Hole Compression Lug CU 500MCM W/ 5/8 Stud Hole

Product Description

The Hubbell YA34 is a 1-Hole Compression Lug designed for stranded copper conductors. It accommodates a conductor size of five hundred kcmil and comes with a five eighths inch stud hole. This product is suitable for various electrical applications involving code conductors.

• Compatible with various tools for easy installation
• Temperature rated up to ninety degrees Celsius
• UL and CSA certified for safety and compliance

Product Highlights

This compression lug ensures a strong and reliable connection for high voltage applications up to thirty-five thousand VAC.

Product Information

Standard Information

• Manufacturer: Hubbell
• Model Number: YA34

Technical Specifications

• Application: For code conductor
• Material: Tin Plated Copper
• Overall Length: Four point thirty-nine inches
• Barrel Size: Two and one quarter inches long
• Stud Size: Five eighths inch
• Voltage Rating: Six hundred to thirty-five thousand VAC
• Die Code: 20/299
• Conductor Type: Stranded Copper
• Temperature Rating: Ninety degrees Celsius
