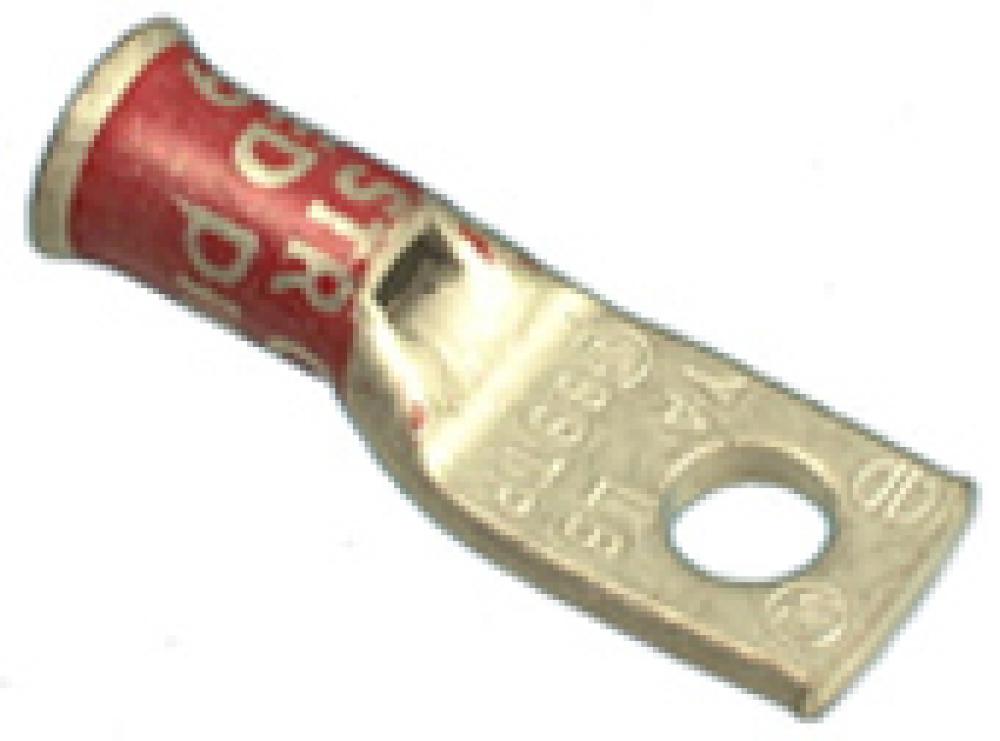

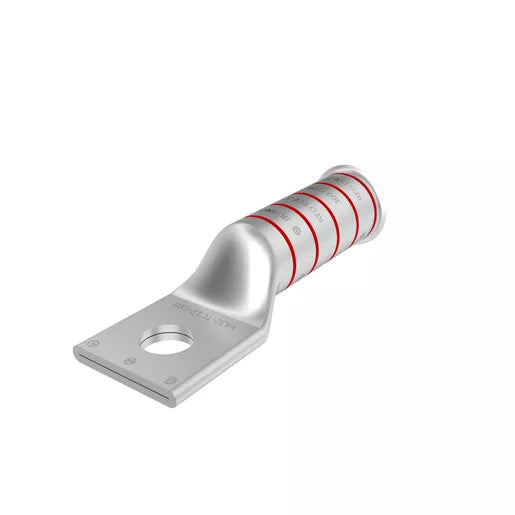

HUBBELL YA32TC12FXB Compression Terminal 300 kcmil 1-Hole 1/2 Stud Long Barrel

Product Description

The HUBBELL YA32TC12FXB is a one-hole compression terminal designed for copper conductors. It supports conductor sizes such as three hundred kcmil and others including G, H, I, K, M, and 313 DLO. This terminal features a long barrel with a bell end and a 1/2 inch stud size. It is electro-tin plated, making it suitable for applications up to thirty-five kilovolts with a temperature rating of ninety degrees Celsius.

• Accommodates multiple conductor sizes for flexibility.
• Long barrel design enhances connection strength.
• Electro-tin plating minimizes galvanic corrosion.

Product Highlights

Designed for reliable electrical connections, this compression terminal is ideal for trade professionals. Its internal chamfer allows for smooth wire insertion, ensuring a secure fit.

Product Information

Standard Information

• Brand: HUBBELL
• MPN: YA32TC12FXB

Technical Specifications

• Conductor Size: 300 kcmil
• Stud Size: 1/2 inch
• Barrel Type: Long Barrel with Bell End
• Material: Electro-Tin Plated Copper
• Voltage Rating: 600 VAC to 35 kV
• Temperature Rating: 90 degrees Celsius
• Color: Red
• Die Code: 18
• Barrel Size: 2.32 inches Long
• Overall Length: 4.28 inches
• Tongue Type: Straight
• Tongue Size: 1.4 inches Wide x 0.19 inches Thick
• Type: 1-Hole
• Application: For flexible conductors
• Standards: ARRA Compliant, Buy American Act, RoHS Compliant, UL Listed, CSA Certified
