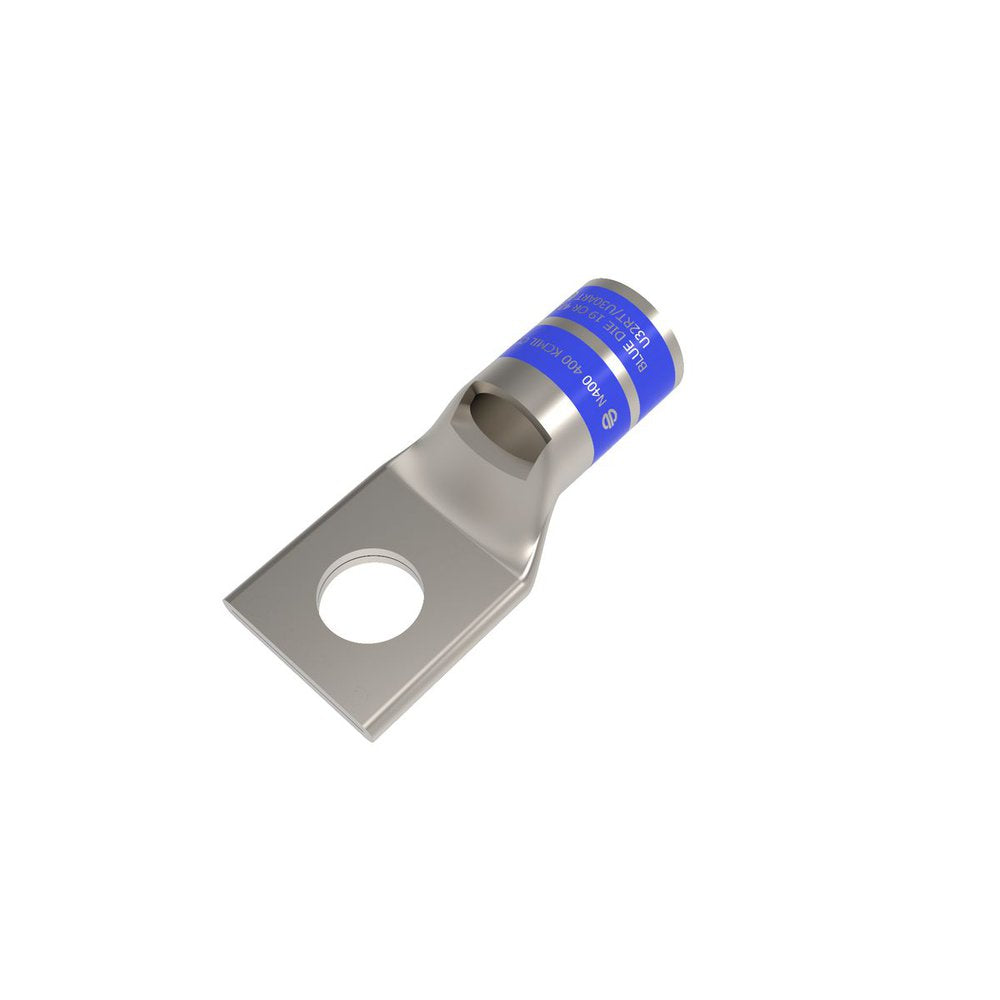

Hubbell YA32L1 BURNDY 400 CU 1-HOLE SHORT

Product Description

The Hubbell YA32L1 is a BURNDY HYLUG Compression Lug designed for connecting stranded copper conductors. This compression lug features a one-hole design and accommodates conductors up to four hundred kcmil. It is suitable for various applications, including industrial and commercial electrical installations.

• Suitable for conductors rated from six hundred volts to thirty-five kilovolts.
• Provides effective cable termination with a standard barrel.
• Features a tin-plated surface for enhanced conductivity.

Product Highlights

This compression lug is engineered for reliable performance in demanding electrical environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: YA32L1

Technical Specifications

• Application: For code conductor
• Barrel Size: 0.95 inches OD x 1.19 inches L
• Conductor Size: 400 kcmil
• Stud Size: 1/2 inch
• Overall Length: 2.93 inches
• Temperature Rating: 90 degrees Celsius
• Voltage Rating: 600 VAC to 35 kV
• Standards/Approvals: CSA Certified, RoHS Compliant
