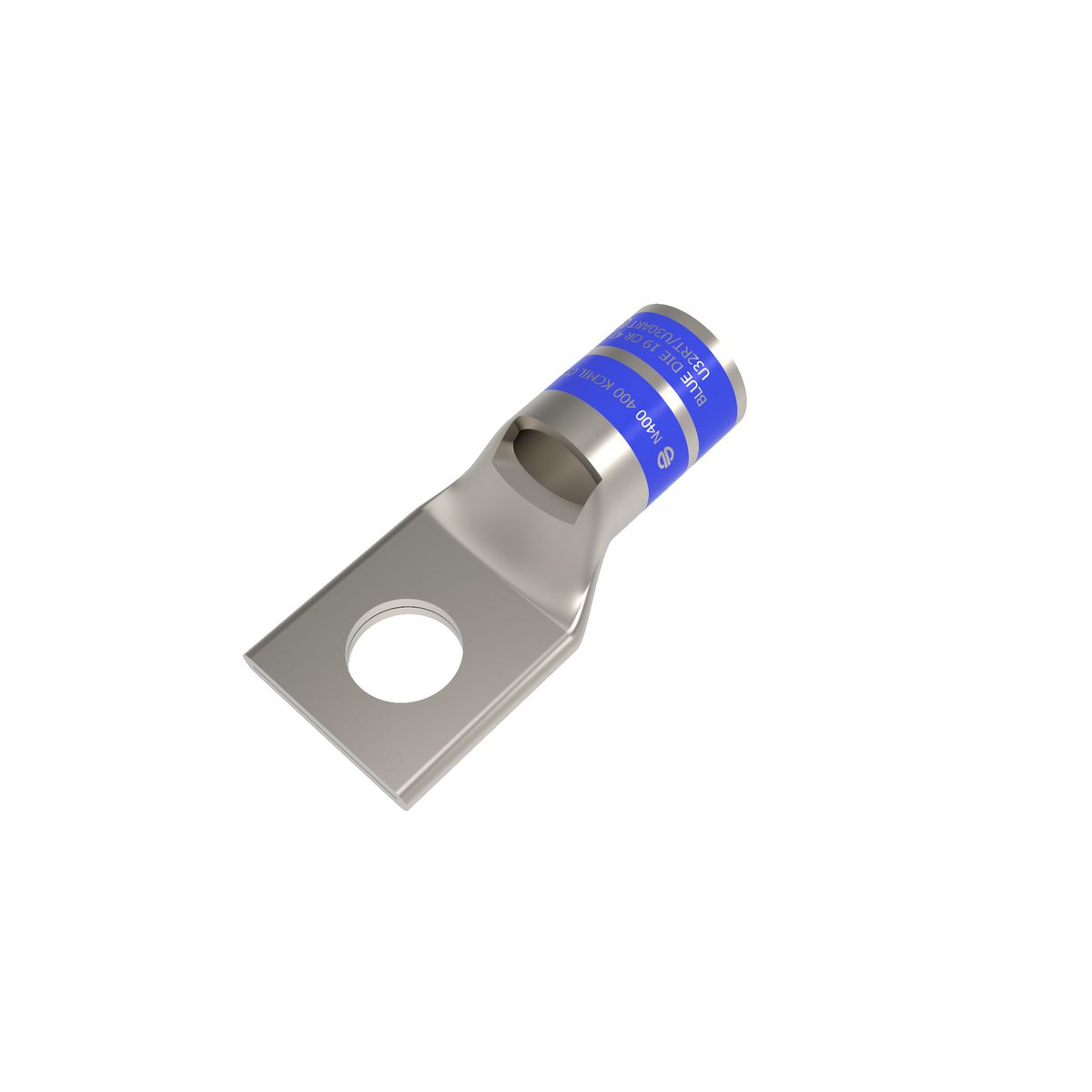

Hubbell YA32L YA-L 1-Hole Compression Lug with Inspection Window for 400 kcmil Stranded Copper Conductor

Product Description

The Hubbell YA32L is a 1-Hole compression lug designed for use with 400 kcmil stranded copper conductors. This compression lug is part of the HYLUG series and offers a reliable connection in various electrical applications.

• Designed for 400 kcmil stranded copper conductors
• Voltage rating from six hundred VAC to thirty-five kV
• Includes an inspection window for easy monitoring

Product Highlights

The YA32L compression lug is suitable for industrial, utility, and commercial electrical connections. Its design supports efficient installation with visible cable terminations.

Product Information

Standard Information

• Application: For code conductor
• Manufacturer: Hubbell

Technical Specifications

• Barrel Size: 0.95 inches OD x 1.19 inches L
• Color: Blue
• Conductor Size: 400 kcmil
• Conductor Type: Stranded Copper
• Overall Length: 3.18 inches
• Stud Size: 5/8 inches
• Temperature Rating: 90 degrees C
• Voltage Rating: 600 VAC to 35 kV
• Standards/Approvals: ARRA Compliant, CSA Certified, RoHS Compliant, UL 467/467A/467B
