Hubbell YA322N BURNDY 400 CU 2-HOLE LONG 1/2 07818105055

Product Description

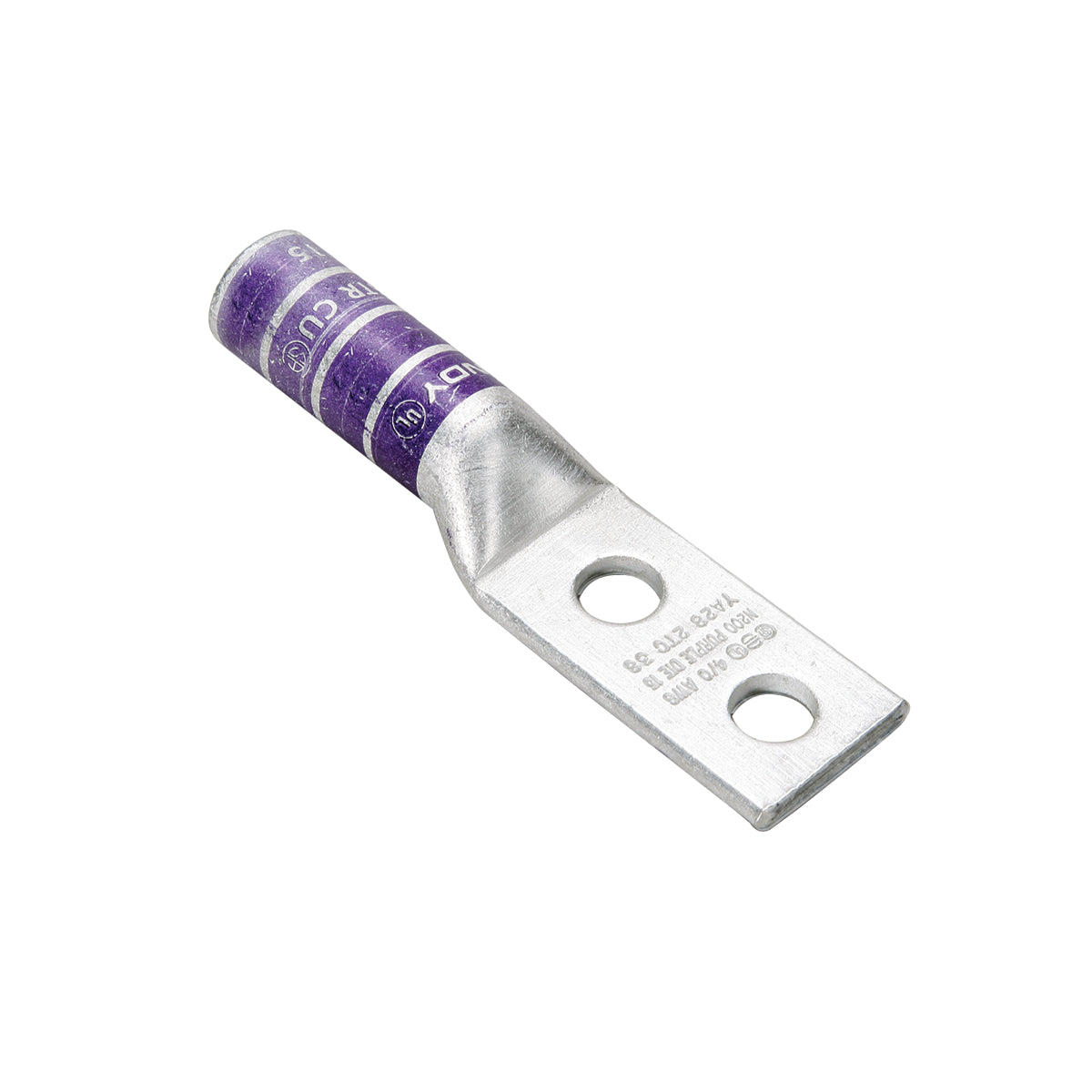

The Hubbell YA322N is a BURNDY HYLUG Compression Lug designed for use with wire connections. It is suitable for code conductor applications. This product supports stranded copper conductors of four hundred kcmil size and can operate with a voltage of six hundred volts alternating current to thirty-five kilovolts. It features a one-half inch stud size.

• Two-hole compression lug.
• Suitable for stranded copper conductors.
• Rated for high voltage applications.

Product Highlights

Reliable connection for a range of electrical installations, ensuring compliance with regulatory standards.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: YA322N

Technical Specifications

• Application: For code conductor
• Barrel Size: 2.12 inches
• Color: Blue
• Conductor Size: 400 kcmil
• Conductor Type: Stranded Copper
• Die Code: 19/490
• Material: Tin Plated Copper
• Overall Length: 5.85 inches
• Voltage Rating: 600 VAC to 35 kV
• Temperature Rating: 90 degrees C
• Tongue Size: 1.4 inches wide x 0.19 inches thick
• Tongue Type: Standard
• Type: 2-Hole
