Product Description

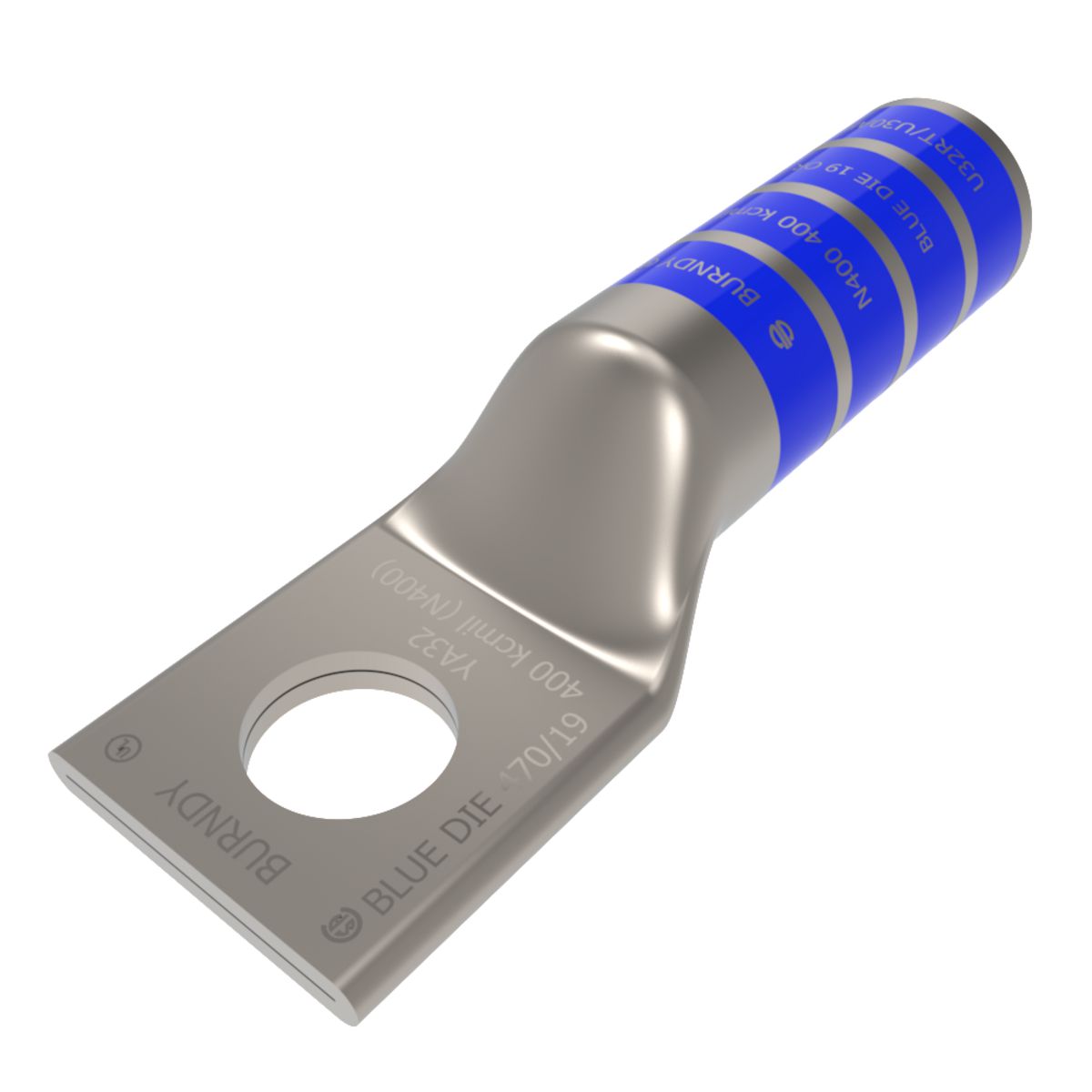

The Hubbell YA32 is a BURNDY HYLUG Compression Lug designed for reliable electrical connections. This product features a 1-Hole uninsulated design and is made for stranded copper conductors up to 400 kcmil. It supports applications in electrical setups requiring robust connections between wires and connectors. With a temperature rating of ninety degrees Celsius, it is suitable for environments with heightened electrical demands.
- Compatible with various crimping tools and dies.
- Rated for voltages from six hundred VAC to thirty-five kV.
- Features a barrel size of two point twelve inches in length.
Product Highlights
The YA32 offers strong electrical performance at a low installed cost. Its durable design ensures resistance to corrosion and environmental factors.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78181050540
Technical Specifications
-
Application: For code conductor
-
Barrel Size: 2.12 inches
-
Conductor Size: 400 kcmil
-
Conductor Type: Stranded Copper
-
Die Code: 19/470
-
Material: Tin Plated Copper
-
Overall Length: 4.15 inches
-
Stud Size: 5/8 inches
-
Voltage Rating: 600 VAC to 35 kV
-
Temperature Rating: 90 degrees Celsius
-
Tongue Size: 1.4 inches wide x 0.19 inches thick
-
Tongue Type: Standard/Straight
-
Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 468A/468B, CSA Certified
