Product Description

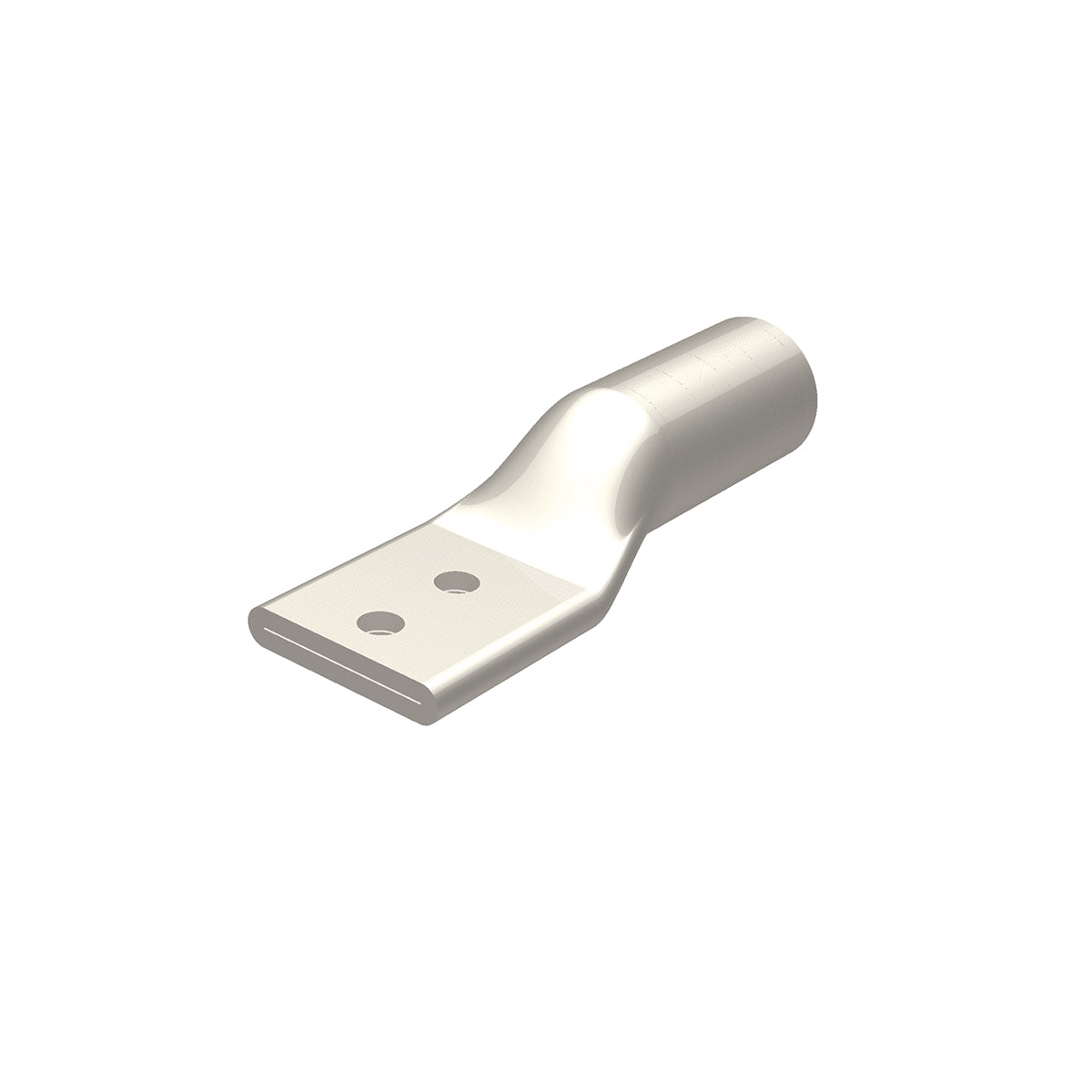

The Hubbell YA31A3 is a BURNDY HYLUG Compression Lug designed for aluminum and copper conductors. This product accommodates a conductor size of three hundred fifty kcmil and features a two-hole uninsulated design, making it suitable for heavy-duty applications. The lug can operate at voltages from six hundred VAC to thirty-five kV and is made from high conductivity aluminum.
- Two-hole uninsulated design for secure terminations
- Compatible with copper and stranded aluminum conductors
- High conductivity aluminum with electro-tin plated finish for corrosion resistance
Product Highlights
The YA31A3 provides reliable electrical connections in various environmental conditions. It helps maintain performance in current surges and extreme temperatures.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: YA31A3
Technical Specifications
-
Application: For aluminum and copper conductors
-
Barrel Size: 1.85 inches
-
Conductor Size: 350 kcmil
-
Overall Length: 6.07 inches
-
Stud Size: 1/2 inches
-
Voltage Rating: 600 VAC to 35 kV
-
Temperature Rating: 90 degrees Celsius
-
Die Code: 299
-
Series: YA-E
-
Tongue Size: 3.11 inches L x 1.52 inches W x 0.39 inches THK
-
Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 468A/468B, CSA Certified
