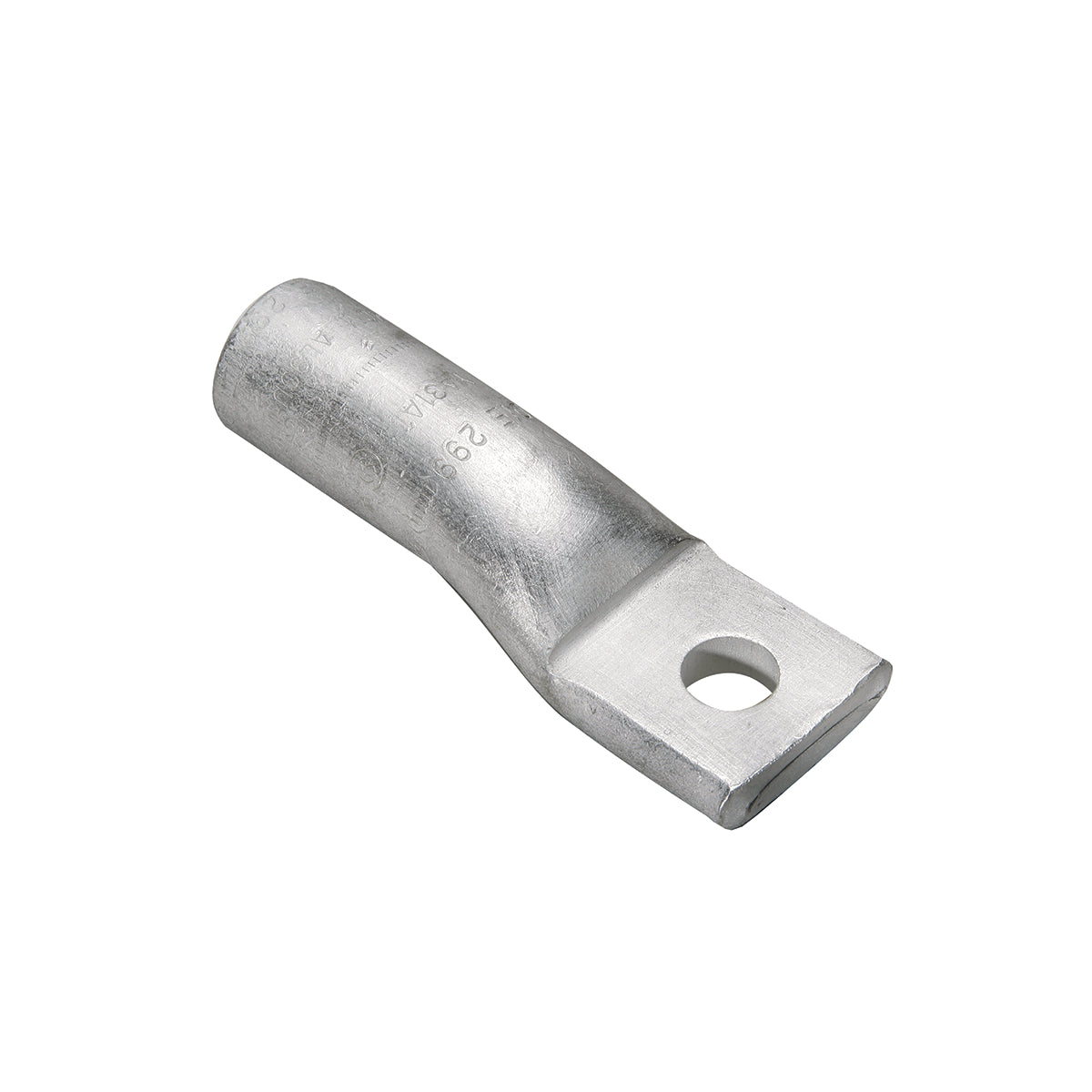

Hubbell YA31A1 350MCM ALCU 1H LUG BURNDY

Product Description

The Hubbell YA31A1 is a BURNDY HYLUG Compression Lug designed for aluminum and copper conductors. This product offers dual-rated performance and is suitable for both heavy-duty applications and installation in various electrical environments.

• Construction: Uninsulated, 1-Hole design
• Rated for voltage: 600 VAC to 35 kV
• Conductor sizes: Compatible with 350 kcmil

Product Highlights

This compression lug features a beveled barrel for easy cable insertion and is pre-filled with PENETROX oxide inhibiting compound to ensure electrical continuity.

Product Information

Standard Information

• Manufacturer: Hubbell
• Material: Electro Plated Tin Aluminum

Technical Specifications

• Type: 1-Hole Dual Rated Uninsulated
• Conductor Size: 350 kcmil
• Barrel Size: 1.85 inches length
• Tongue Size: 1.37 inches length x 1.52 inches width x 0.39 inches thickness
• Overall Length: 4.33 inches
• Voltage Rating: 600 VAC to 35 kV
• Temperature Rating: 90 degrees Celsius
• Die Code: 299
