Product Description

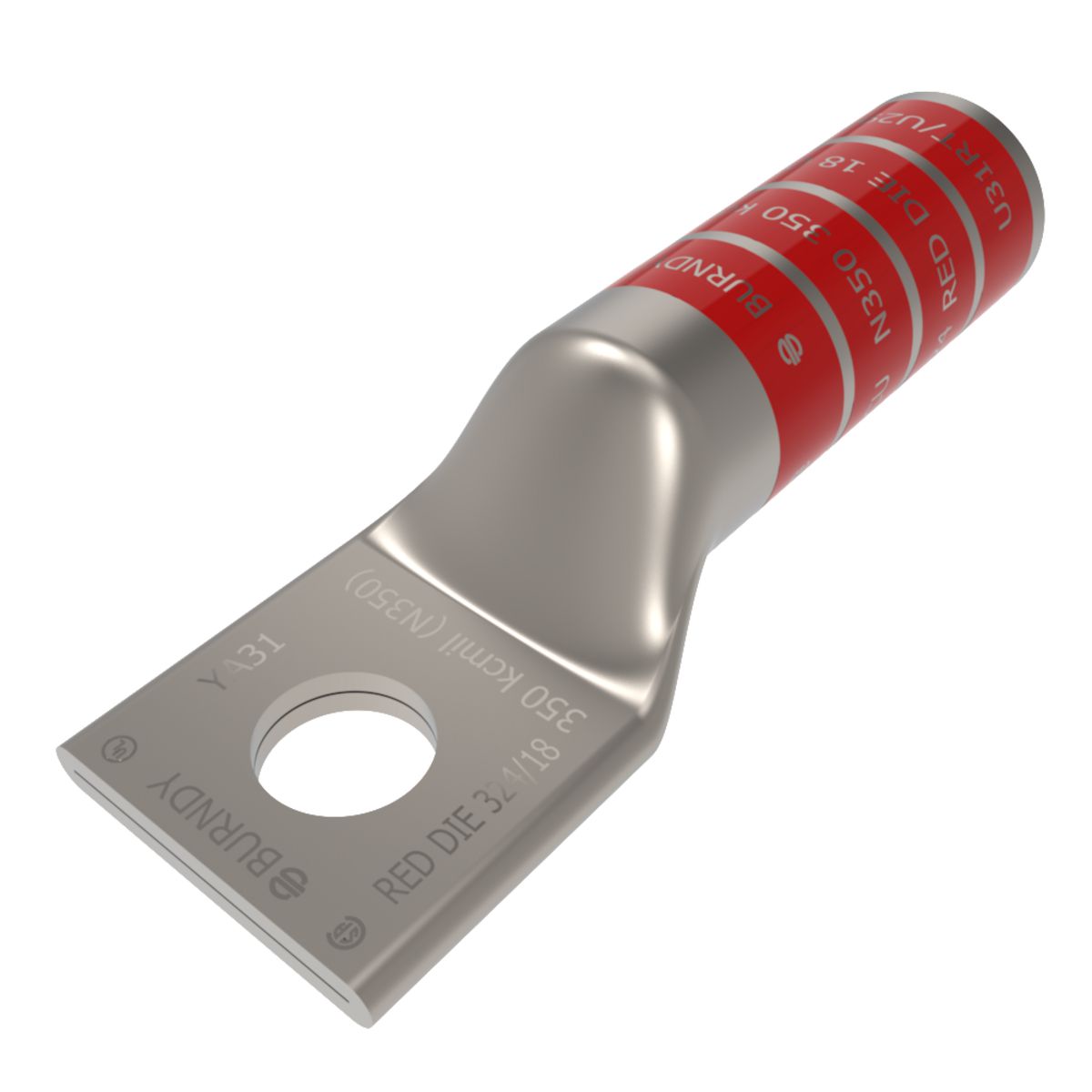

Hubbell YA31 is a BURNDY® HYLUG™ compression lug designed for uninsulated connections. It is suitable for stranded copper conductors of three hundred fifty kcmil. The lug supports a voltage range from six hundred VAC to thirty-five kV. Ideal for use in electrical applications, it features a standard tongue design, ensuring reliable connectivity.
- Suitable for code conductor applications
- Constructed from tin-plated copper
- Compatible with a half inch stud
Product Highlights
This compression lug is built for durability and meets multiple standards including UL and CSA certifications.
Product Information
Standard Information
-
Material: Tin Plated Copper
-
Color: Red
Technical Specifications
-
Application: For code conductor
-
Barrel Size: Two inches long
-
Conductor Size: Three hundred fifty kcmil
-
Overall Length: Three point seventy-three inches
-
Die Code: Eighteen over three hundred twenty-four
-
Temperature Rating: Ninety degrees Celsius
-
Voltage Rating: Six hundred VAC to thirty-five kV
-
Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 468A/468B, CSA Certified
