Product Description

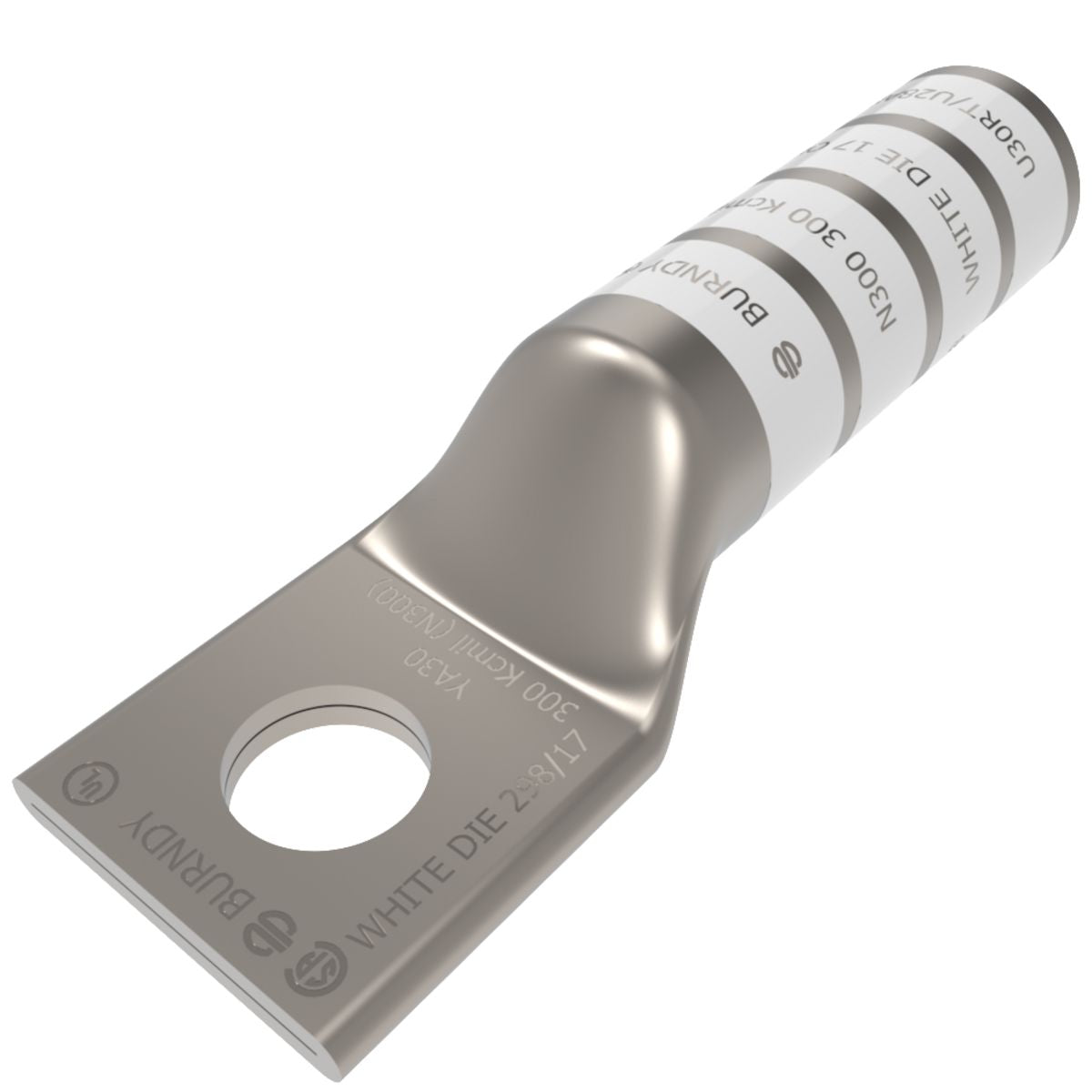

The Hubbell YA30 is a BURNDY compression lug designed for reliable electrical connections. This product features an uninsulated, one-hole design. The lug is compatible with a stranded copper conductor with a size of three hundred kcmil.
- Designed for both mechanical and hydraulic crimping tools
- Operates in a wide range of electrical environments
- Meets several safety and compliance standards
Product Highlights
This lug supports electrical connections that are durable and can withstand harsh conditions.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Product Number: YA30
Technical Specifications
-
Application: For code conductor
-
Barrel Size: 2 in L
-
Color: White
-
Conductor Size: 300 kcmil
-
Conductor Type: Stranded Copper
-
Die Code: 17/298
-
Material: Tin Plated Copper
-
Overall Length: 3.69 in
-
Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, UL 468A/468B, CSA Certified
-
Stud Size: 1/2 in
-
Temperature Rating: 90 deg C
-
Tongue Size: 1.2 in W x 0.16 in THK
-
Tongue Type: Standard/Straight
-
Type: 1-Hole Uninsulated
-
Voltage Rating: 600 VAC to 35 kV
