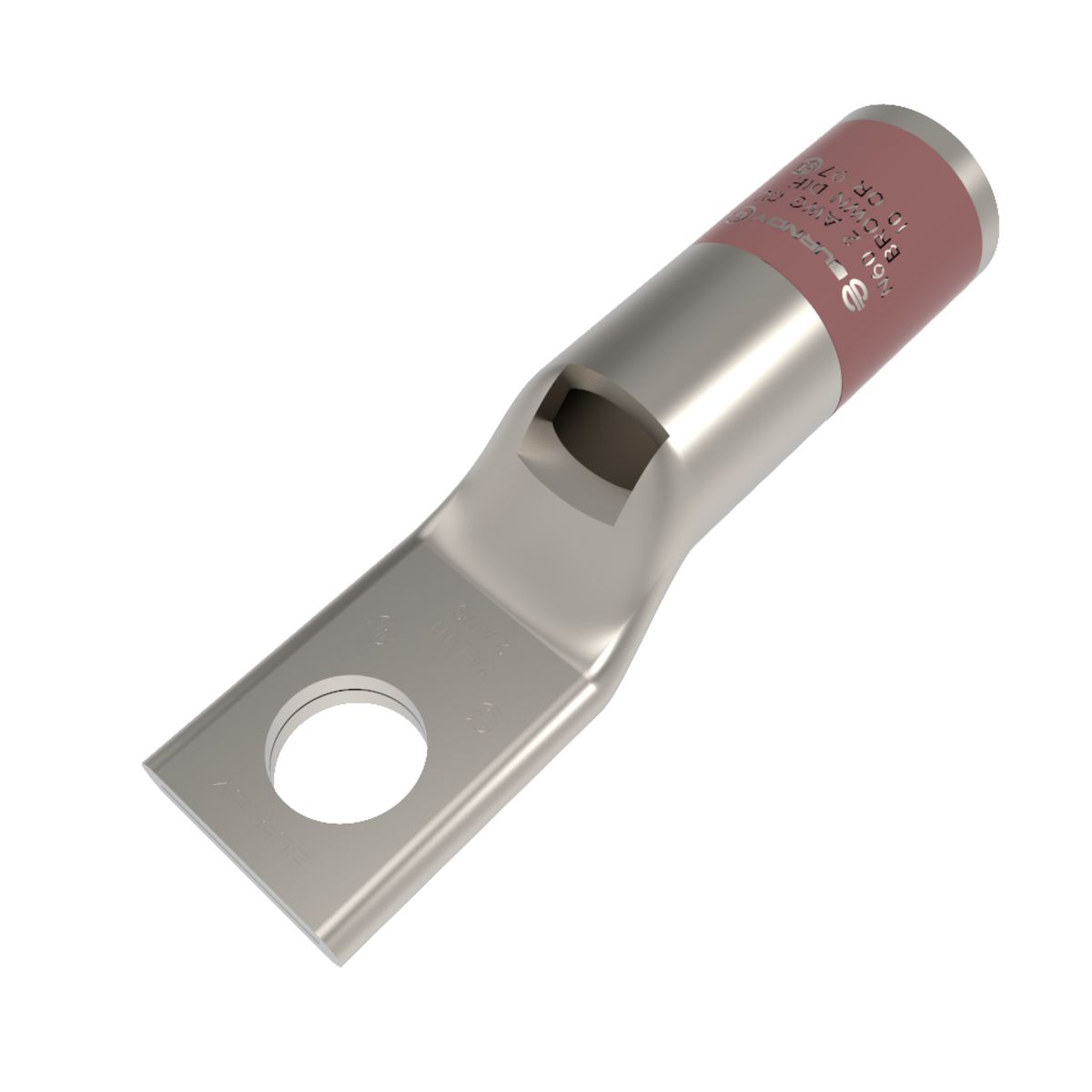

Hubbell YA2CLNT14 BURNDY TERMINAL LUG ONE-HOLE

Product Description

The Hubbell YA2CLNT14 is a one-hole compression lug made for flexible or stranded copper conductors. This terminal lug accommodates a two AWG conductor with a die code of ten. It operates effectively within a voltage range of six hundred volts alternating current to thirty-five kilovolts. The lug has a stud size of one-quarter inch.

• Single-hole design for secure connections
• Electro-tin plated for resistance to corrosion
• Temperature rated up to ninety degrees Celsius

Product Highlights

This product ensures reliable electrical connections with increased conductivity and better cooling performance compared to the wire used.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181001849

Technical Specifications

• Application: For code conductor
• Material: Copper
• Series: YA-L-NT
• Conductor Size: 2 AWG
• Overall Length: 1.8 inches
• Barrel Size: 0.88 inches
• Tongue Size: 0.5 inches wide x 0.11 inches thick
• Stud Size: 1/4 inch
• Voltage Rating: 600 VAC to 35 kV
• Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 467A/467B
