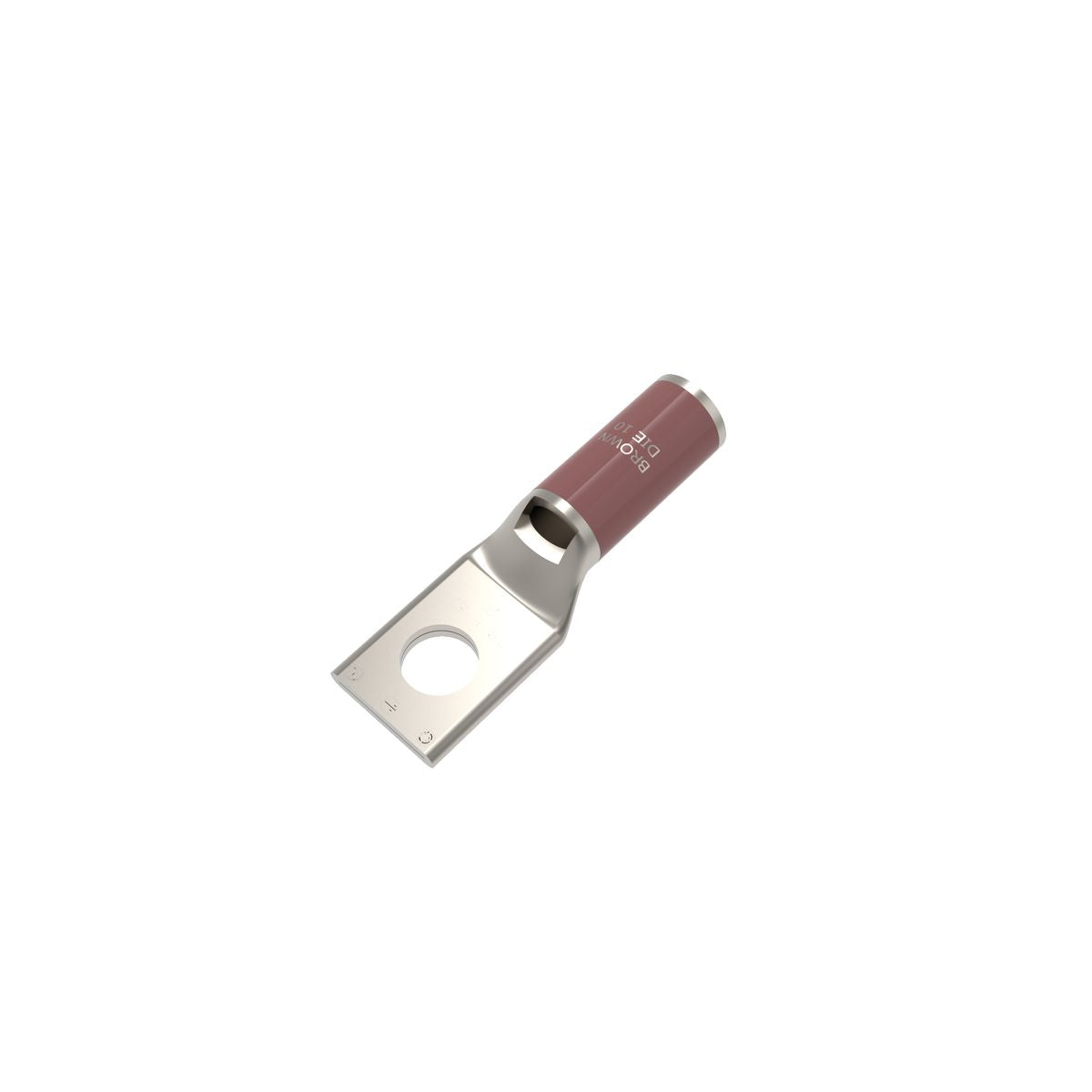

Hubbell YA2CLBOX YA-L 1-Hole Compression Lug With Inspection Window, 2 AWG Stranded Copper Conductor

Product Description

The Hubbell YA2CLBOX is a one-hole compression lug designed for use with two AWG stranded copper conductors. This product supports efficient electrical connections while ensuring reliability under varying conditions.

• Compatible with multiple hydraulic and mechanical installation tools
• Tin plated for corrosion resistance
• Suitable for voltages from six hundred volts to thirty-five thousand volts

Product Highlights

This lug provides reliable performance for electrical applications, designed to withstand high temperatures and current surges.

Product Information

Standard Information

• Manufacturer: Hubbell
• Material: Copper

Technical Specifications

• Application: For code conductor
• Barrel Size: 0.88 inches in length
• Conductor Size: 2 AWG
• Conductor Type: Stranded Copper
• Die Code: 10
• Overall Length: 1.93 inches
• Stud Size: 5/16 inches
• Temperature Rating: 90 degrees Celsius
• Voltage Rating: 600 VAC to 35 kV
• Tongue Size: 0.61 inches wide x 0.11 inches thick
• Tongue Type: Standard/Straight
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, CSA Certified
• Specifications: 15/16 inches long wire strip, Tin Plated
