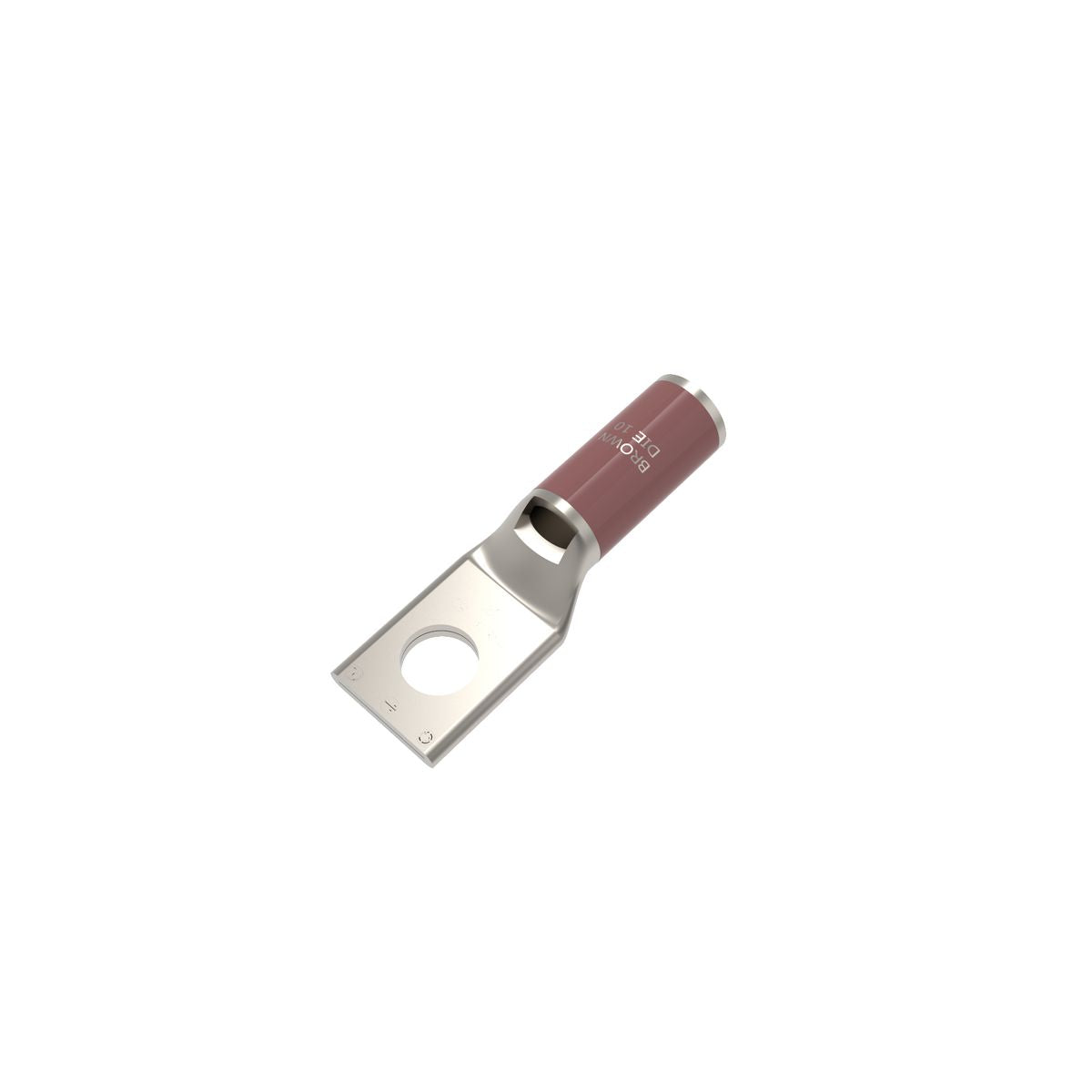

Hubbell YA2CL6BOX YA-L 1-Hole Compression Lug With Inspection Window, 2 AWG Stranded Copper Conductor

Product Description

The Hubbell YA2CL6BOX is a compression lug designed for use with stranded copper conductors. It accommodates a two AWG conductor and works with a half inch stud. It features an inspection window for verification of wire seating during installation.

• Rated for 600 VAC to 35 kV.
• Includes tin plating for corrosion resistance.
• Compatibility with various compression tools for reliable connections.

Product Highlights

This compression lug is suitable for use in electrical connections requiring high conductivity and durability, making it ideal for a variety of applications.

Product Information

Standard Information

• MPN: YA2CL6BOX
• Manufacturer: Hubbell

Technical Specifications

• Application: For code conductor
• Barrel Size: 0.88 in L
• Color: Brown
• Conductor Size: 2 AWG
• Conductor Type: Stranded Copper
• Die Code: 10
• Material: Copper
• Overall Length: 2.32 in
• Series: YA-L
• Standard Wire Strip Length: 15/16 in
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, CSA Certified, RoHS Compliant, UL 467A/467B
• Stud Size: 1/2 in
• Temperature Rating: 90 deg C
• Tongue Size: 0.73 in W x 0.09 in THK
• Tongue Type: Standard/Straight
• Type: 1-Hole
• Voltage Rating: 600 VAC to 35 kV
