Product Description

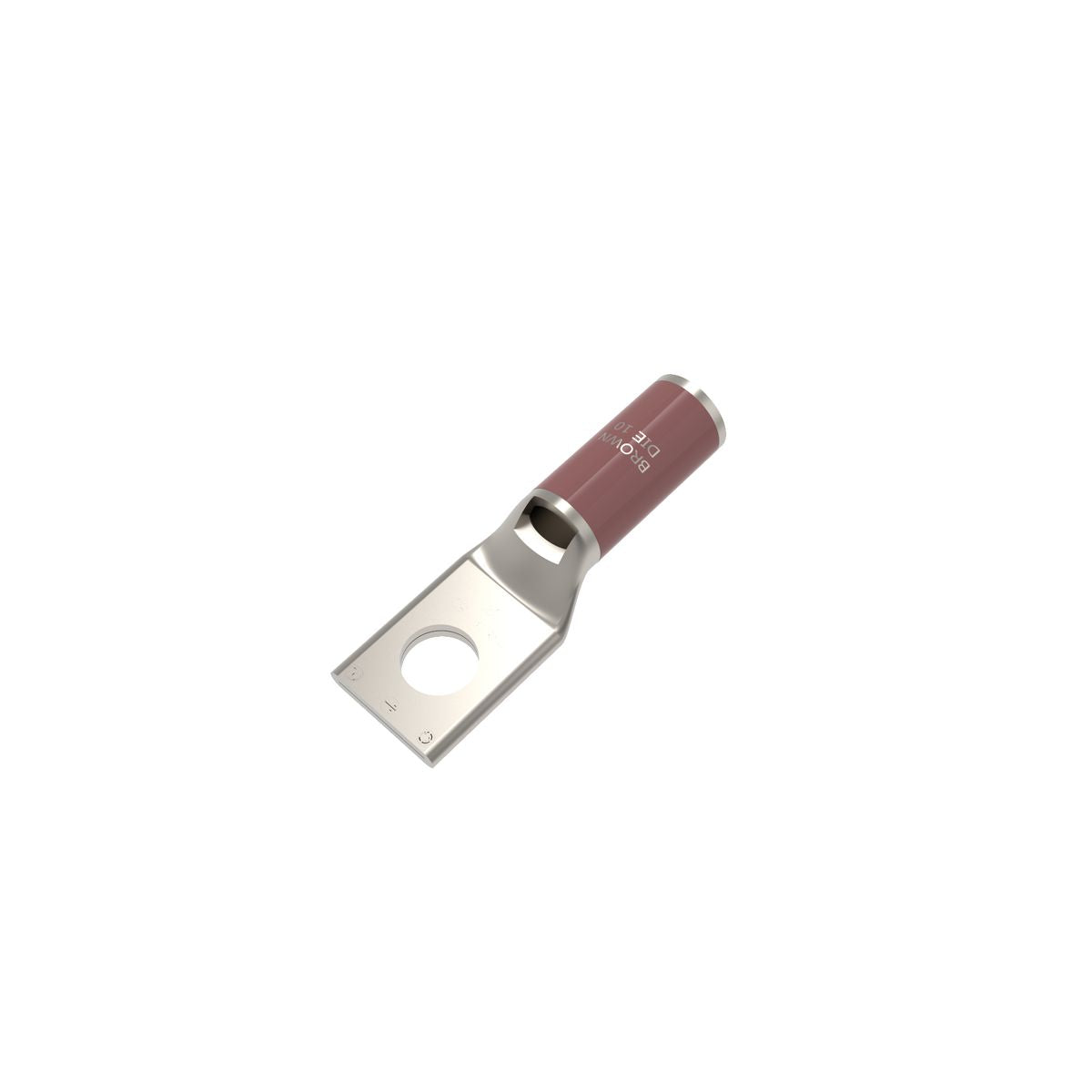

The Hubbell YA2CL4BOX is a compression lug designed for 2 AWG stranded copper conductors. With its one-hole design, this lug ensures a strong connection for various electrical applications.
- Compatible with multiple crimping tools for reliable installations
- Tin plated for enhanced corrosion resistance
- Rated for voltages up to 35 kV, suitable for harsh environments
Product Highlights
This compression lug offers a reliable electrical connection that is easy to install and inspect. It is made from high conductivity copper, which operates cooler than the wire it connects.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78181055200
Technical Specifications
-
Type: 1-Hole
-
Conductor Size: 2 AWG
-
Material: Copper
-
Voltage Rating: 600 VAC to 35 kV
-
Temperature Rating: 90 deg C
-
Overall Length: 2.06 inches
-
Tongue Size: 0.61 inches wide x 0.11 inches thick
-
Stud Size: 3/8 inches
-
Die Code: 10
-
Standards/Approvals: ARRA Compliant, Buy American Act Compliant, CSA Certified, RoHS Compliant, UL 467A/467B
