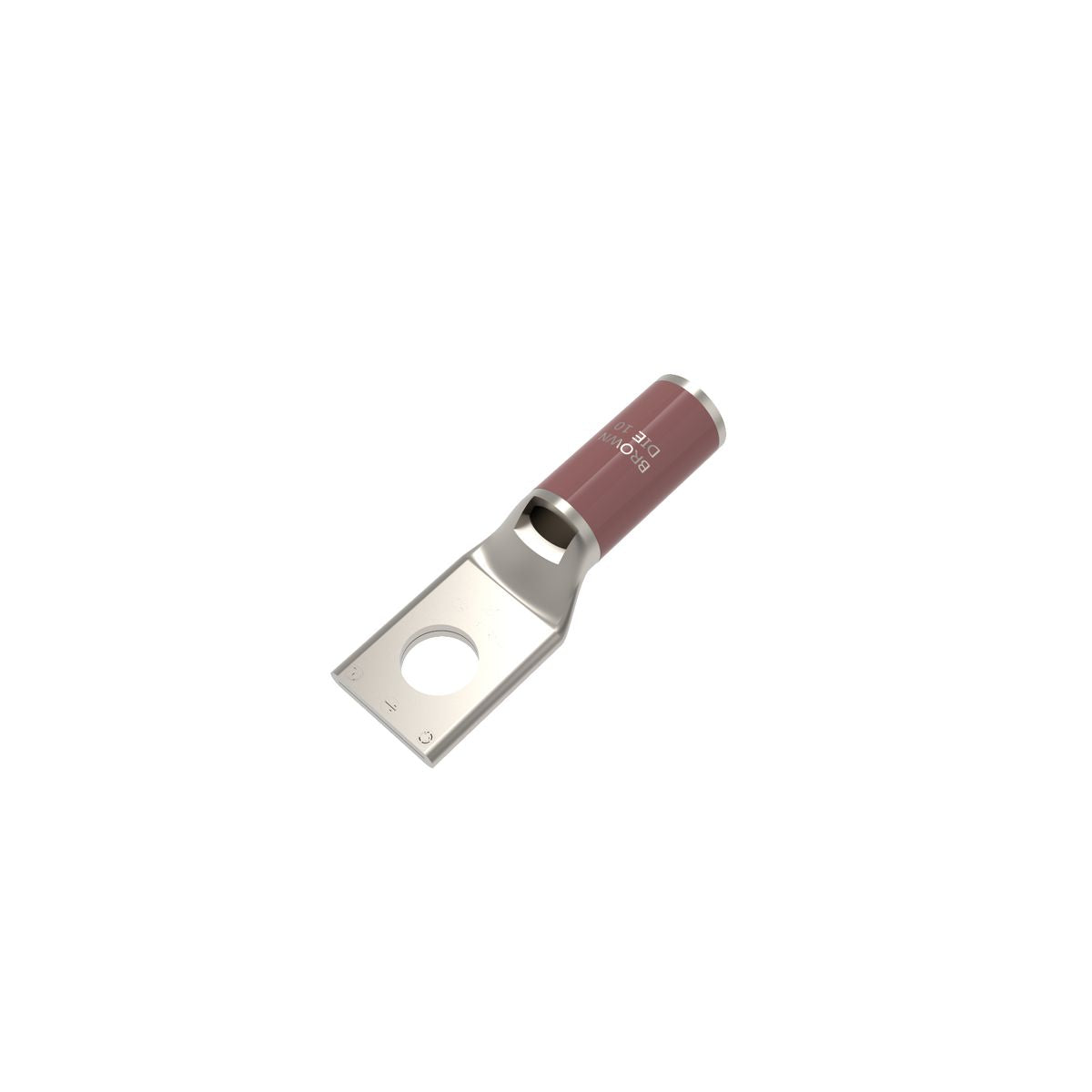

Hubbell YA2CL2BOX YA-L 1-Hole Compression Lug With Inspection Window 2 AWG Stranded Copper Conductor

Product Description

The Hubbell YA2CL2BOX is a compression lug designed for reliable electrical connections. It accommodates stranded copper conductors of size two AWG. This lug supports a voltage range from six hundred VAC to thirty-five kV, making it suitable for a wide array of electrical applications. The lug features a standard tongue with inspection window, ensuring easy verification of wire connection.

• Designed for conductors of size two AWG.
• Manufactured from high conductivity electrolytic copper.
• Suitable for both mechanical and hydraulic tools.

Product Highlights

The YA2CL2BOX provides durable connections under various environmental and electrical conditions. Its design ensures low operational heating compared to connected wires, supporting high efficiency in installations.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181055175

Technical Specifications

• Application: For code conductor
• Barrel Size: 0.88 inches
• Color: Brown
• Conductor Size: 2 AWG
• Conductor Type: Stranded Copper
• Die Code: 10
• Material: Copper
• Overall Length: 1.88 inches
• Series: YA-L
• Stud Size: 1/4 inches
• Temperature Rating: 90 degrees Celsius
• Tongue Size: 0.61 inches wide x 0.11 inches thick
• Tongue Type: Standard/Straight
• Voltage Rating: 600 VAC to 35 kV
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, CSA Certified, RoHS Compliant, UL 467A/467B
