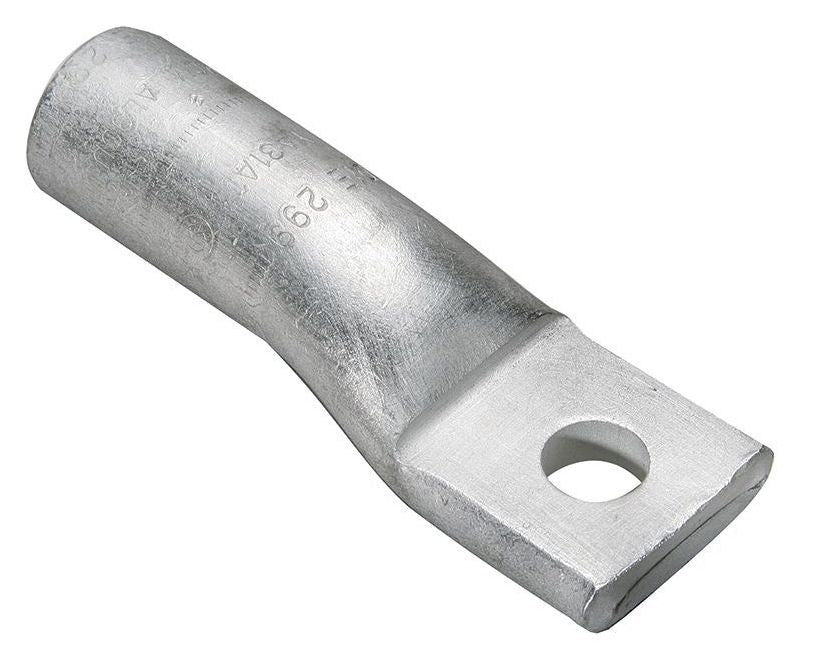

Hubbell YA2CA3 YA-A 1-Hole Dual Rated Uninsulated Compression Lug, 2 AWG Aluminum/Stranded Copper Conductor

Product Description

The Hubbell YA2CA3 is a one-hole dual-rated uninsulated compression lug designed for both aluminum and stranded copper conductors. It accommodates a conductor size of 2 AWG and operates effectively in temperatures up to ninety degrees Celsius. This lug supports voltage ratings from six hundred VAC to thirty-five kV, ensuring compatibility across various electrical applications.

• Prefilled with PENETROX oxide inhibiting compound
• Manufactured from high conductivity aluminum
• Designed for use with standard crimp tools

Product Highlights

This compression lug is engineered for reliable electrical connections and works in demanding environments. The barrel is internally beveled for easy cable insertion, and the connector is marked for clear identification.

Product Information

Standard Information

• Application: For aluminum and copper conductors
• Stud Size: 3/8 inches

Technical Specifications

• Barrel Size: 1.12 inches
• Conductor Size: 2 AWG
• Overall Length: 2.56 inches
• Die Code: 348
• Voltage Rating: 600 VAC to 35 kV
• Temperature Rating: 90 degrees Celsius
• Material: Electro Plated Tin Aluminum
• Color: Pink
• Tongue Type: Standard/Straight
