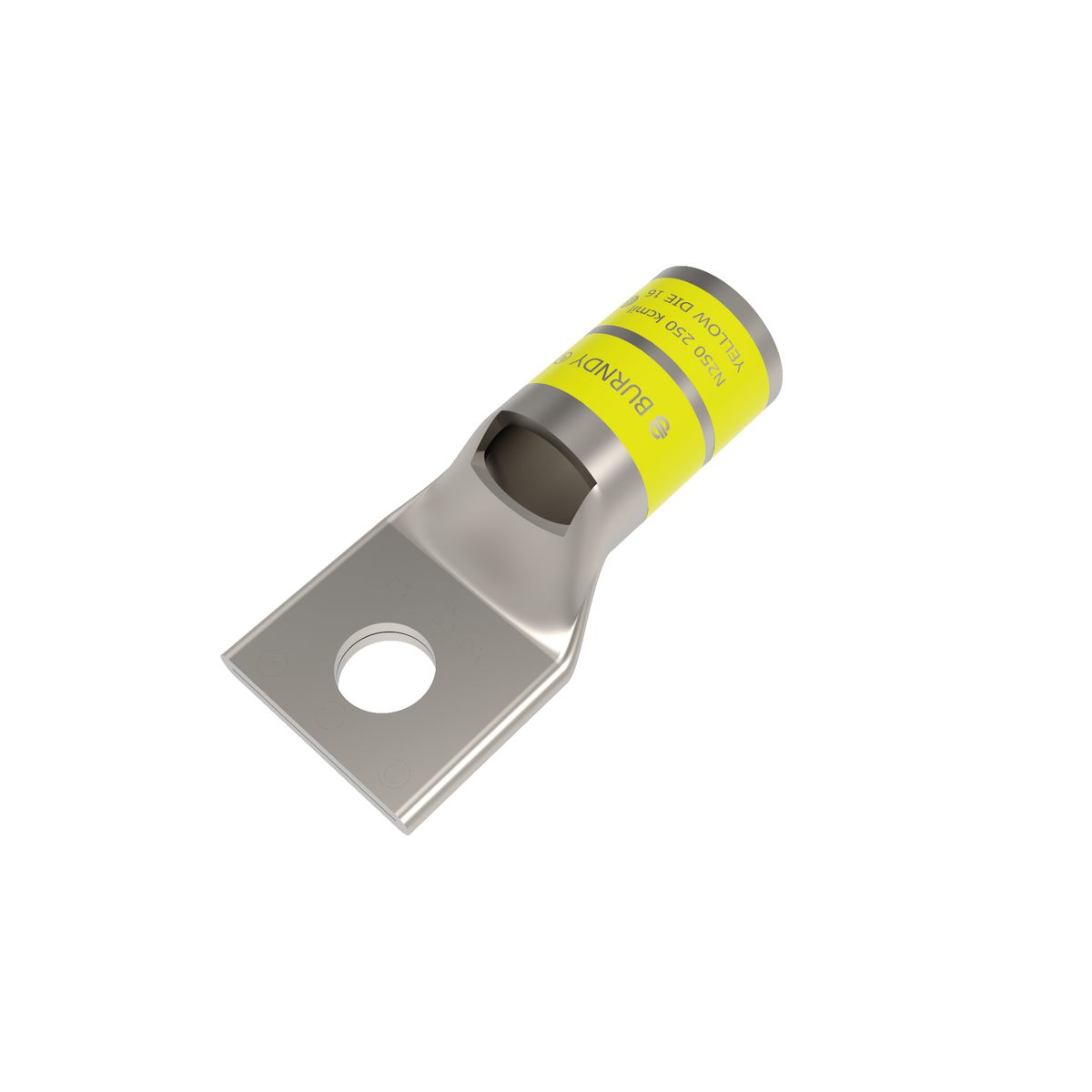

Hubbell YA29LBOX YA-L 1-Hole Compression Lug 250 kcmil Copper

Product Description

The Hubbell YA29LBOX is a compression lug designed for a reliable electrical connection. This product is suitable for a stranded copper conductor with a size of two hundred fifty kcmil. The lug operates effectively in various conditions.

• One hole design for easy installation
• Rated for voltage from six hundred VAC to thirty-five kV
• Made from tin plated copper for excellent conductivity

Product Highlights

This compression lug ensures high conductivity and improved performance in electrical applications. It withstands environmental and operational stresses effectively.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: YA29LBOX

Technical Specifications

• Application: For code conductor
• Barrel Size: 1.06 inches L
• Color: Yellow
• Conductor Size: 250 kcmil
• Conductor Type: Stranded Copper
• Die Code: 16
• Material: Tin Plated Copper
• Overall Length: 2.67 inches
• Series: YA-L
• Specifications: 1-1/8 inches L Wire Strip
• Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, UL Listed, CSA Certified
• Stud Size: 1/2 inches
• Temperature Rating: 90 degrees C
• Tongue Size: 1.11 inches W x 0.16 inches THK
• Tongue Type: Standard/Straight
• Type: 1-Hole
• Voltage Rating: 600 VAC to 35 kV
