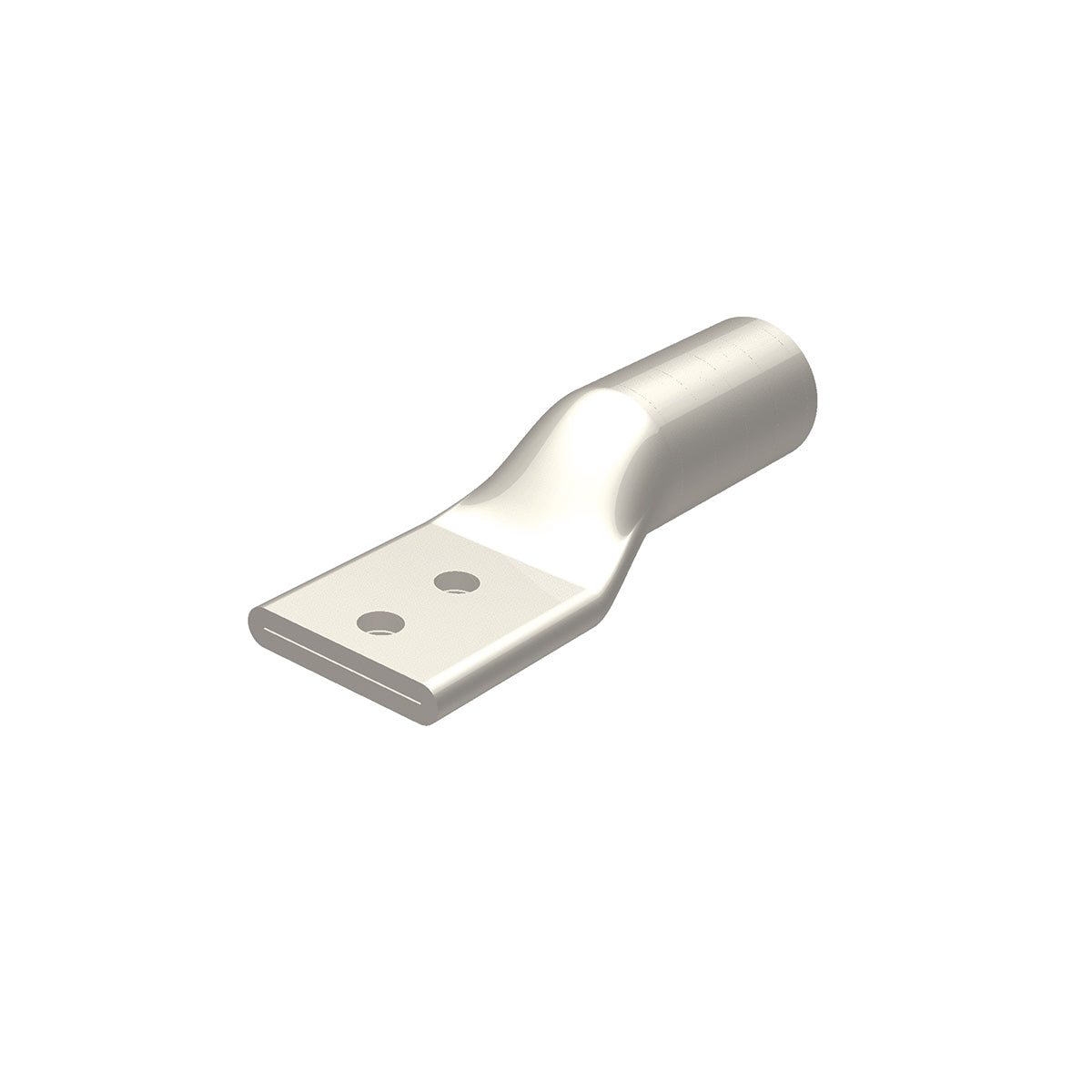

Hubbell YA29A3 Compression Lug 2-Hole 250 AL 1/2

Product Description

The Hubbell YA29A3 is a compression lug designed for reliable electrical connections. This 2-hole compression lug is suitable for both aluminum and copper conductors. It accommodates a conductor size of 250 kcmil and takes a 1/2 inch stud. The lug is made from high conductivity, wrought aluminum and is ideal for various applications requiring durable electrical connections.

• Application: Suitable for aluminum and copper conductors
• Voltage Rating: 600 VAC to 35 kV
• Temperature Rating: 90 degrees Celsius

Product Highlights

The YA29A3 features a beveled barrel for easy cable insertion and is prefilled with PENETROX oxide inhibiting compound to ensure electrical reliability. Additionally, it provides a quality dual connection, minimizing resistance and corrosion.

Product Information

Standard Information

• Manufacturer: Hubbell
• Material: Aluminum

Technical Specifications

• Application: For aluminum and copper conductors
• Barrel Size: 1.45 inches in length
• Conductor Size: 250 kcmil
• Die Code: 324
• Overall Length: 5.28 inches
• Tongue Size: 3.11 inches L x 1.26 inches W x 0.33 inches THK
• Stud Size: 1/2 inch
• Voltage Rating: 600 VAC to 35 kV
• Temperature Rating: 90 degrees Celsius
