Hubbell YA29A1 BURNDY AL. COMP. LUG 250MCM ALCU W/1/2 STUD HOLE

Product Description

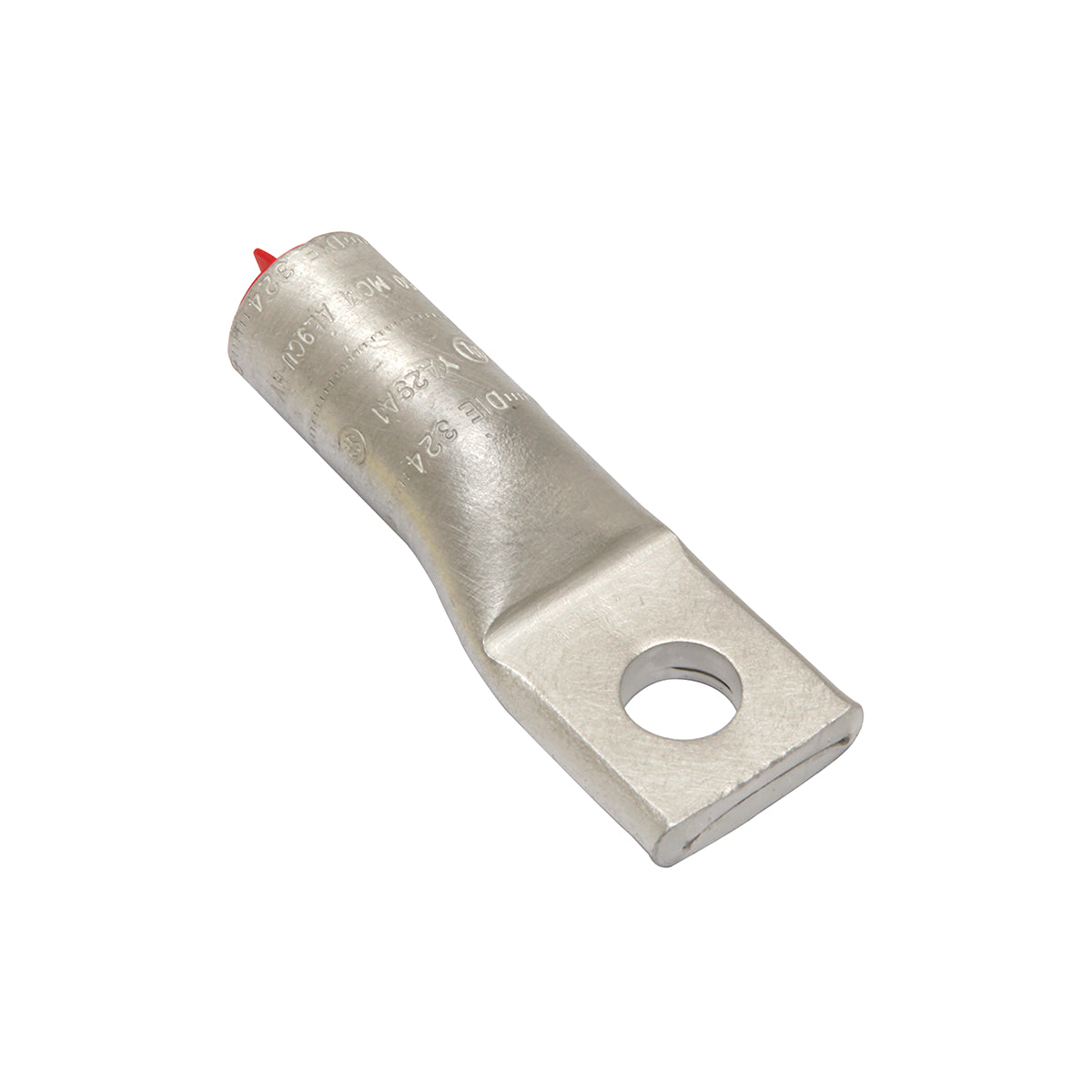

The Hubbell YA29A1 is a BURNDY HYLUG Compression Lug. This lug is designed for aluminum and copper conductors with a capacity of 250 kcmil. It features a one-hole dual rating and is uninsulated. The fabrication allows it to function effectively from six hundred volts to thirty-five thousand volts and is ideal for heavy-duty applications.

• Designed for aluminum and copper conductors
• Rated for 600 VAC to 35 kV
• Temperature rating of 90 degrees Celsius

Product Highlights

The YA29A1 is comprised of high conductivity, wrought aluminum. It includes an electroplated tin finish for corrosion resistance, ensuring a long-lasting electrical connection.

Product Information

Standard Information

• Application: For aluminum and copper conductors
• Material: Electro Plated Tin Aluminum

Technical Specifications

• Barrel Size: 1.45 inches long
• Color: Red
• Conductor Type: Aluminum/Copper
• Die Code: 324
• Overall Length: 3.53 inches
• Tongue Size: 1.36 inches long x 1.26 inches wide x 0.33 inches thick
• Voltage Rating: 600 VAC to 35 kV
• Standards/Approvals: UL468A, UL 486B, RoHS Compliant
