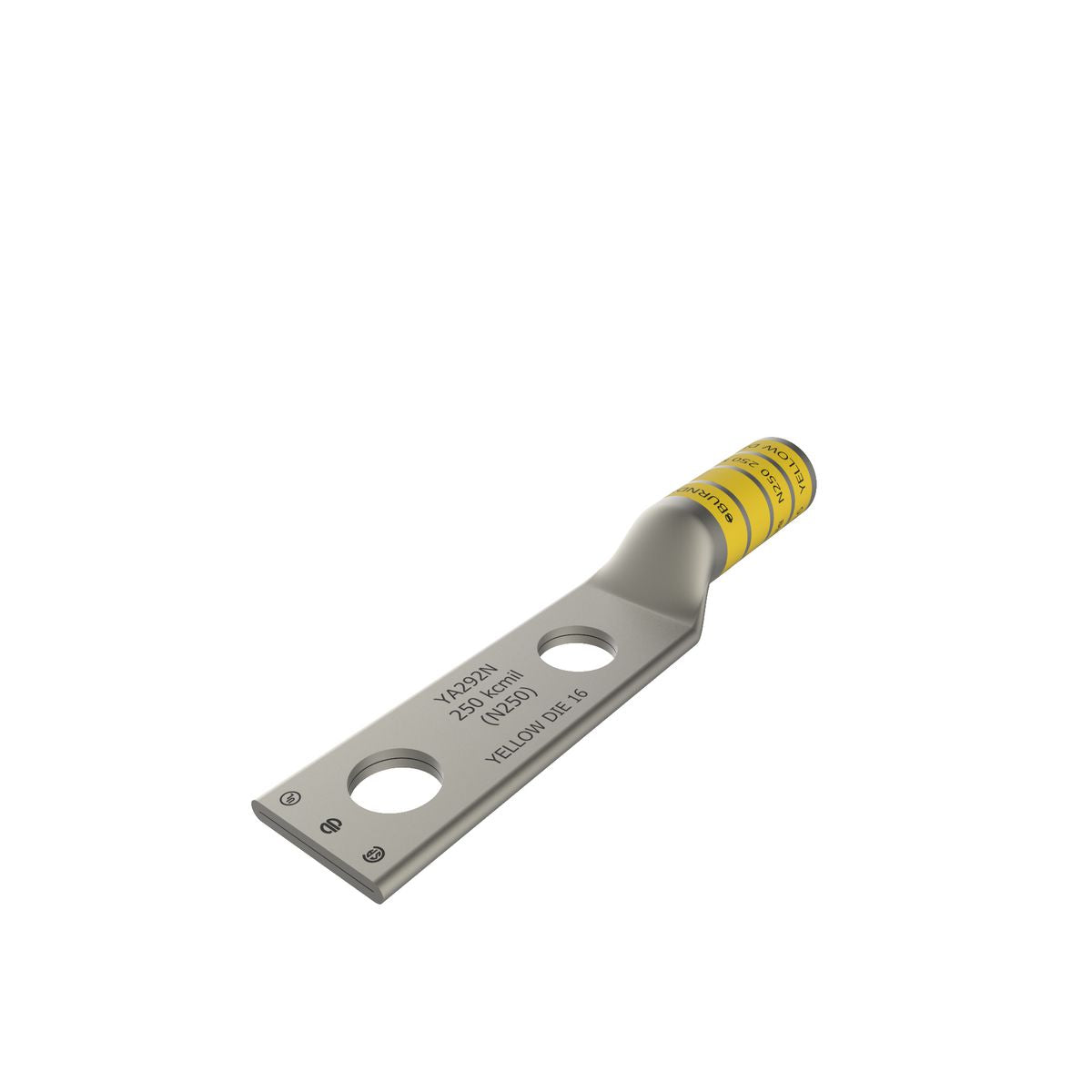

Hubbell YA292N YA29-2N BURNDY 2 HOLE COMP LUG 250MCM COP

Product Description

The Hubbell YA292N is a two-hole compression lug designed for wire connections. This lug accommodates a conductor size of two hundred fifty kcmil and is suitable for a voltage rating of six hundred VAC to thirty-five kV. The lug is made from tin-plated copper and is built to provide reliable electrical connections.

• 2-hole design for secure connections.
• Temperature rating of ninety degrees Celsius.
• Chamfered/long barrel for easy installation.

Product Highlights

This compression lug is designed for efficient electrical connectivity in various applications, ensuring safety and compliance with relevant standards.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: YA292N

Technical Specifications

• Application: For code conductor
• Barrel Size: 1.62 in L
• Color: Yellow
• Conductor Size: 250 kcmil
• Die Code: 16
• Material: Tin Plated Copper
• Overall Length: 5.21 in
• Series: YA-2N
• Specifications: 1.11 in Pad, 1-3/4 in Hole Spacing
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 468A/468B, CSA Certified, PROP65 warning
• Stud Size: 1/2 in
• Temperature Rating: 90 deg C
• Tongue Size: 1.11 in W x 0.16 in THK
• Tongue Type: Standard
• Type: 2-Hole
• Voltage Rating: 600 VAC to 35 kV
