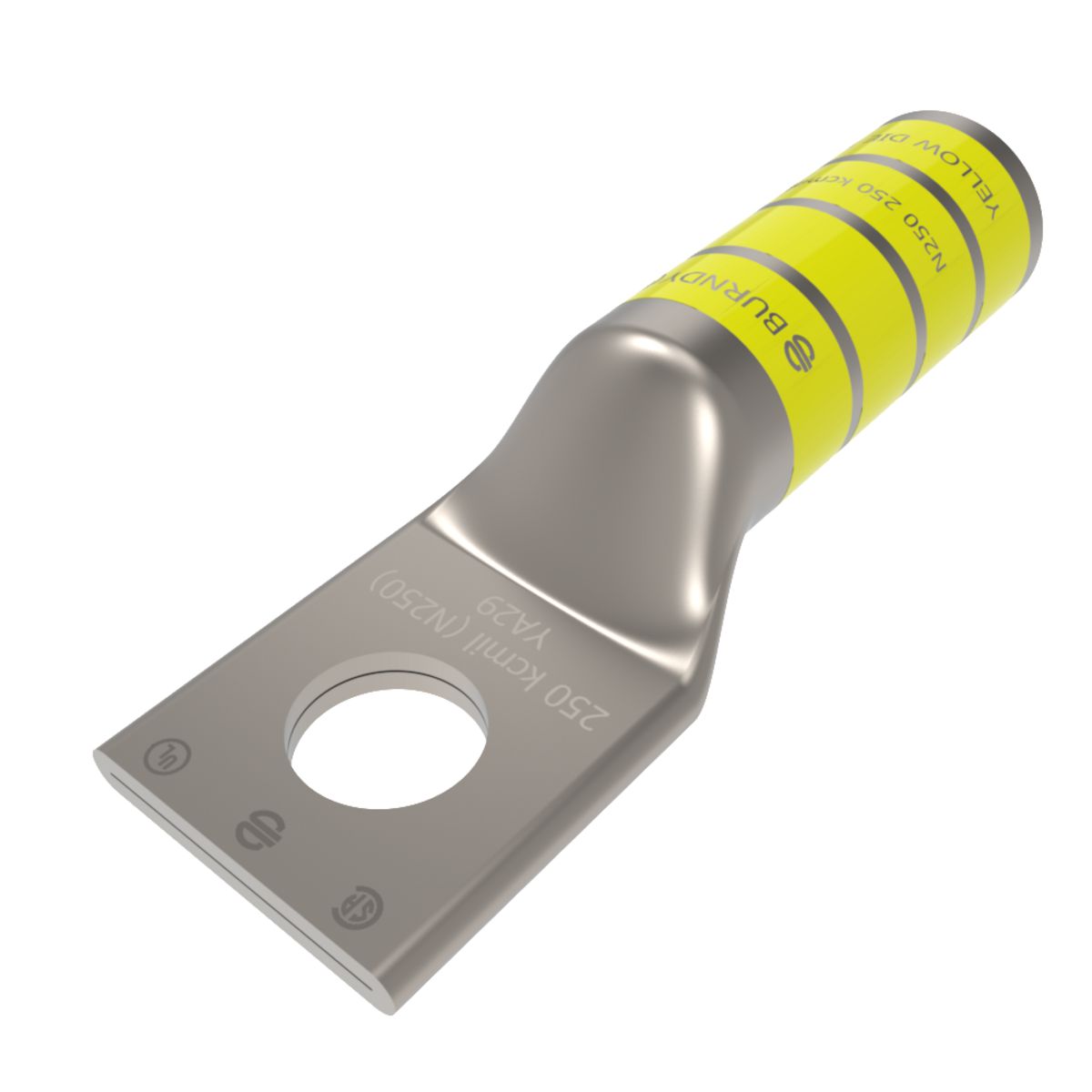

Hubbell YA29 BURNDY COPPER COMP LUG 250MCM W/1/2 STUD HOLE

Product Description

The Hubbell YA29 is a BURNDY® HYLUG™ Compression Lug designed for stranded copper conductors with a size of 250 kcmil. This compression lug features a one-hole design suitable for applications requiring significant electrical strength and conductivity. It accommodates a half-inch stud and is built to handle voltage ratings from six hundred to thirty-five thousand VAC.

• Single hole for easy installation
• Designed for 250 kcmil stranded copper conductors
• Rated for high voltage applications

Product Highlights

The YA29 compression lug is built for reliable connections in electrical junctions. Its tin-plated copper construction enhances conductivity and reduces corrosion. The lug's design ensures an efficient grip on wires, making it suitable for various industrial and commercial applications.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181050405

Technical Specifications

• Application: For code conductor
• Barrel Size: 1.62 inches long
• Color: Yellow
• Conductor Size: 250 kcmil
• Conductor Type: Stranded Copper
• Die Code: 16
• Material: Tin Plated Copper
• Overall Length: 3.26 inches
• Temperature Rating: 90 degrees Celsius
• Stud Size: 1/2 inches
• Voltage Rating: 600 to 35000 VAC
• Tongue Size: 1.11 inches wide x 0.16 inches thick
• Tongue Type: Straight
• Type: 1-Hole
