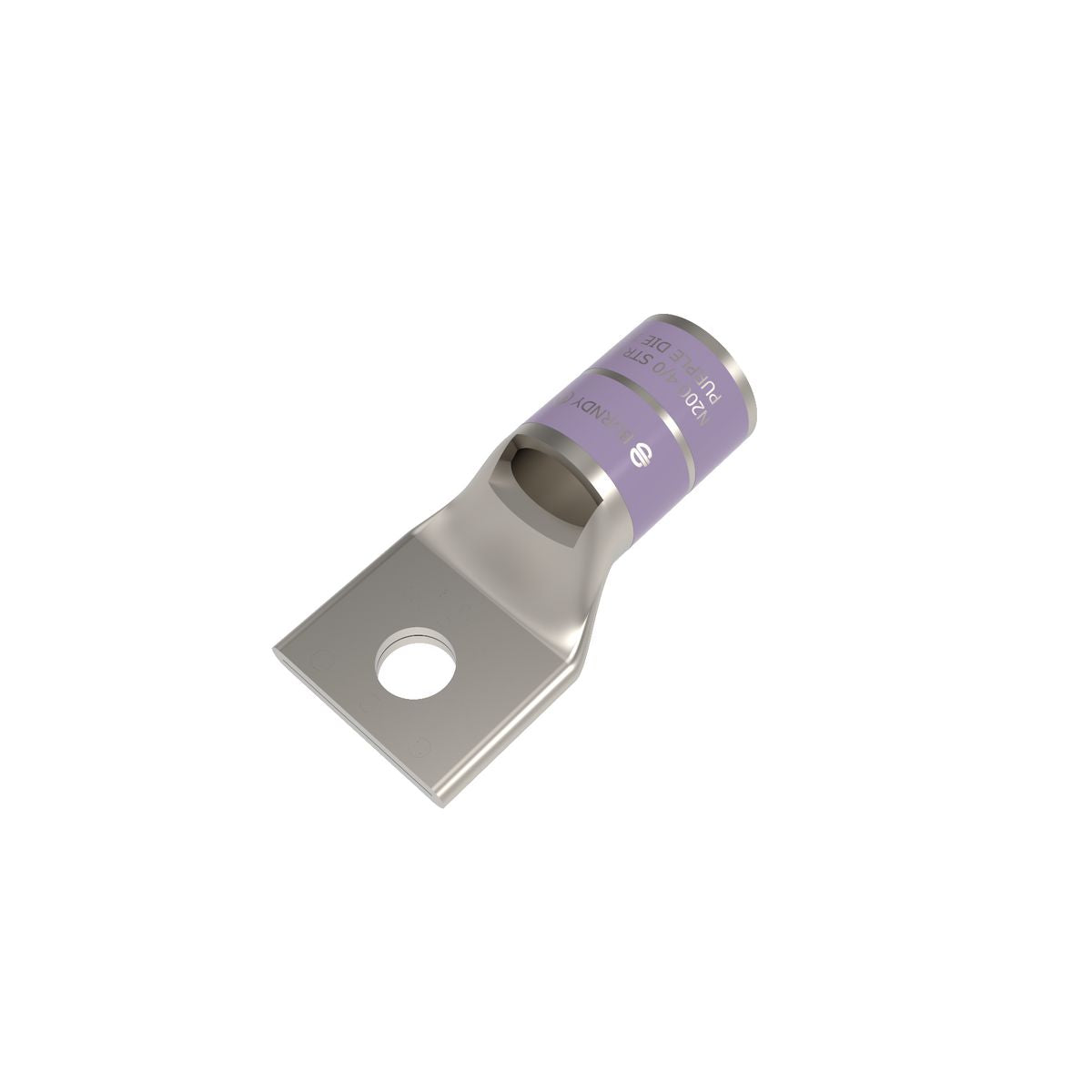

Hubbell YA28LBOX YA-L 1-Hole Compression Lug 4/0 AWG CU

Product Description

The Hubbell YA28LBOX is a durable compression lug designed for stranded copper conductors with a gauge of four/0 AWG. This 1-Hole lug has a die code of 15 and is suitable for voltages ranging from 600 VAC to 35 kV. The lug features a standard tongue design, making it compatible with most standard connectors. It is ideal for a range of electrical applications, ensuring reliable and efficient connections.

• For stranded copper conductors
• Meets various compliance standards
• Designed for easy installation with hydraulic tools

Product Highlights

This compression lug provides a dependable electrical connection that can withstand environmental stress, ensuring durability. Its tin plating offers corrosion resistance and promotes a cooler operation.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181055410

Technical Specifications

• Type: 1-Hole
• Application: For code conductor
• Material: Copper
• Conductor Type: Stranded Copper
• Conductor Size: 4/0 AWG
• Barrel Size: 0.88 in L
• Overall Length: 2.46 in
• Voltage Rating: 600 VAC to 35 kV
• Temperature Rating: 90 deg C
• Tongue Size: 1.02 in W x 0.14 in THK
• Tongue Type: Standard/Straight
• Die Code: 15
• Stud Size: 1/2 in
