Product Description

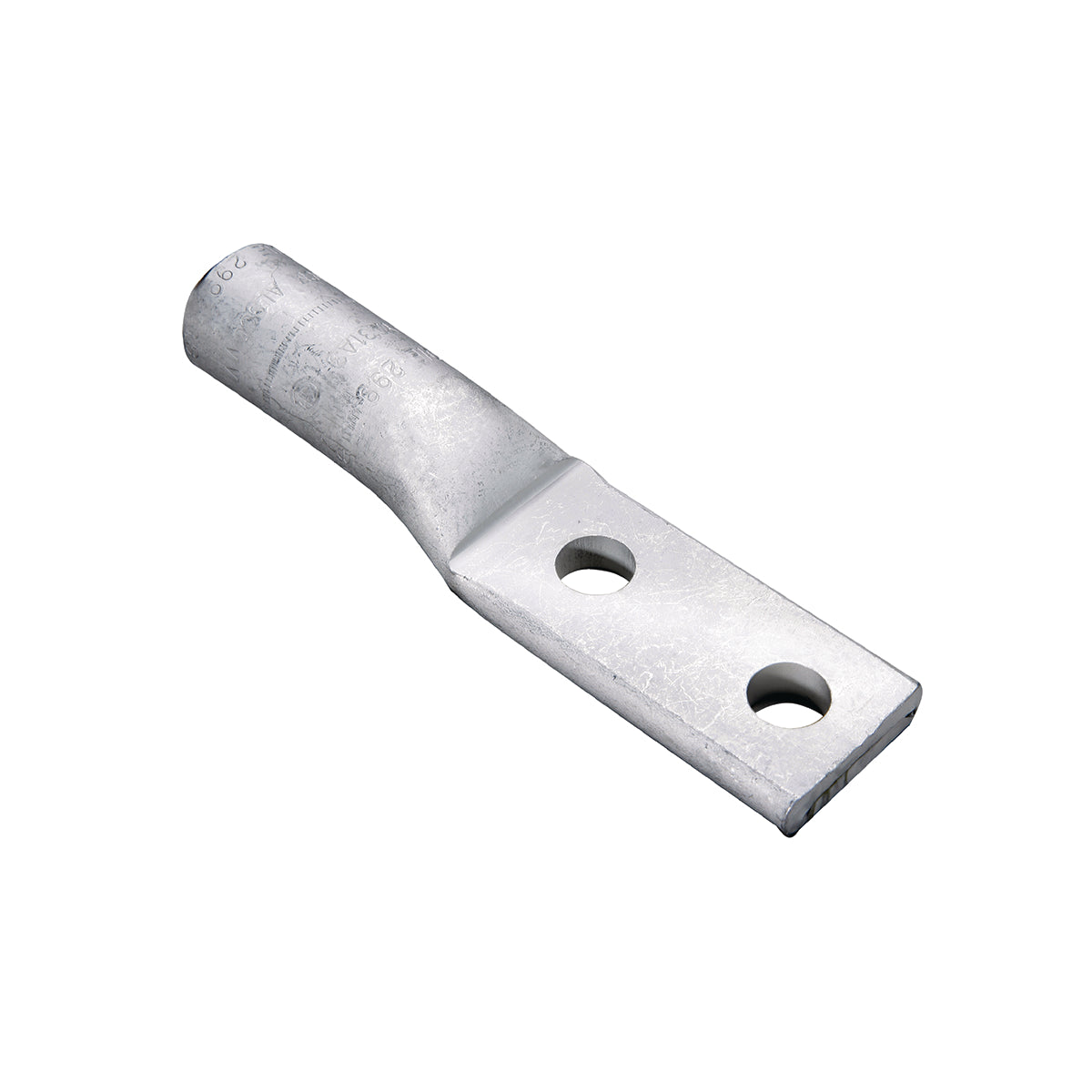

The Hubbell YA28A5 is a HYLUG compression lug designed for use with 4/0 AWG aluminum and copper conductors. This 2-hole lug features a heavy-duty aluminum design and is rated for voltages up to thirty-five kilovolts. It has a standard/stainless tongue and includes a 1/2-inch stud size. The lug measures three point eleven inches in length, one point seventeen inches in width, and zero point three inches in thickness, ensuring a secure connection.
- Compatible with aluminum and copper conductors.
- Meets high conductivity standards for reliable performance.
- Designed for effective crimping and easy installation.
Product Highlights
The YA28A5 maintains high electrical continuity and durability against environmental factors. The lug's design accommodates easy cable insertion, enhancing the efficiency of electrical connections.
Product Information
Standard Information
-
Brand: Hubbell
-
MPN: YA28A5
Technical Specifications
-
Application: For aluminum and copper conductors
-
Barrel Size: 1.39 inches long
-
Color: White
-
Conductor Size: 4/0 AWG
-
Conductor Type: Aluminum/Copper
-
Die Code: 298
-
Material: Aluminum
-
Overall Length: 5.19 inches
-
Series: YA-A
-
Specifications: 1-5/8 inches long wire strip
-
Stud Size: 1/2 inch
-
Temperature Rating: 90 degrees Celsius
-
Tongue Size: 3.11 inches long x 1.17 inches wide x 0.3 inches thick
-
Tongue Type: Standard/Straight
-
Voltage Rating: 600 VAC to 35 kV
