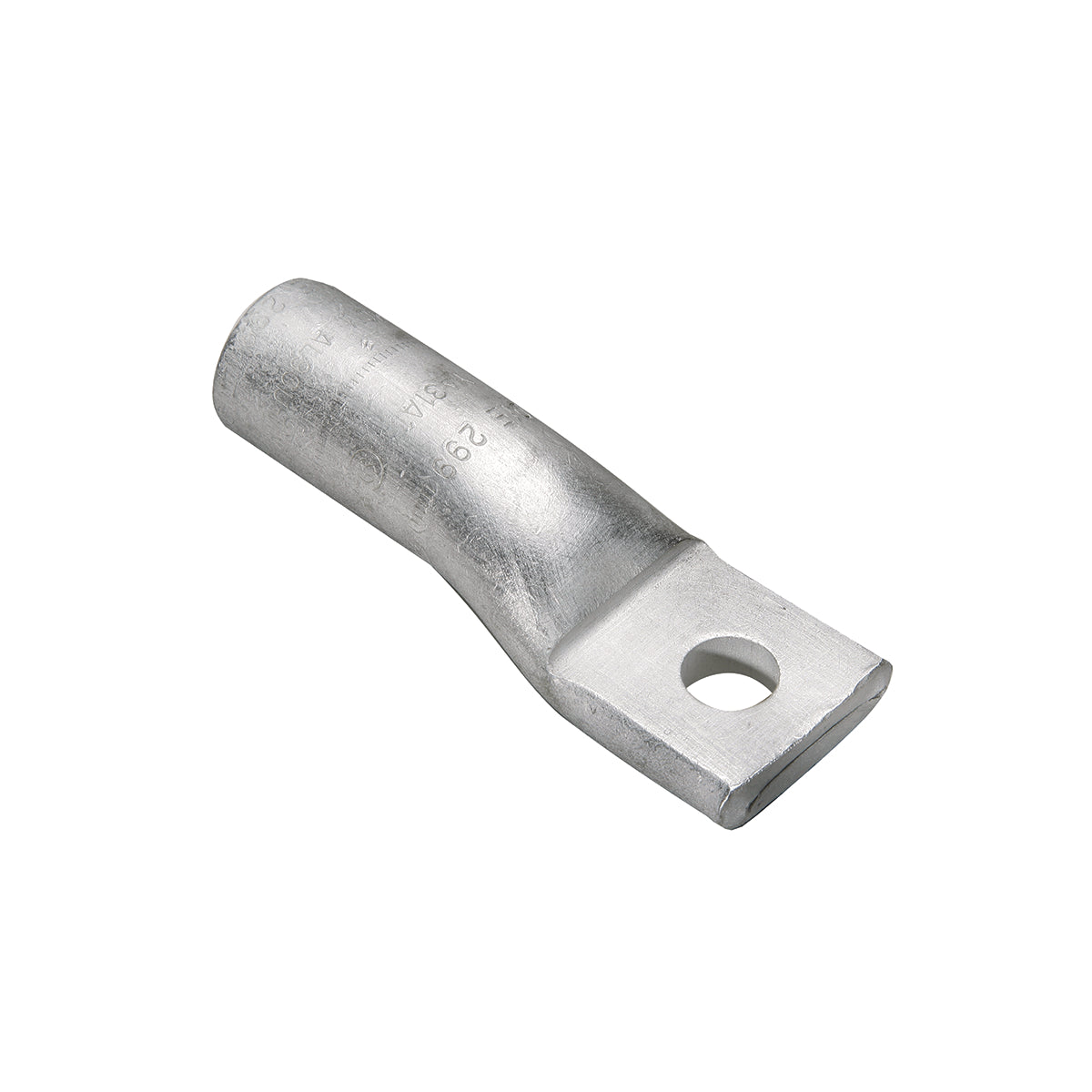

Hubbell YA28A3 YA-A 1-Hole Dual Rated Uninsulated Compression Lug 4/0 AWG Aluminum/Stranded Copper Conductor

Product Description

The Hubbell YA28A3 is a 1-Hole Dual Rated Uninsulated Compression Lug designed for use with 4/0 AWG aluminum and stranded copper conductors. This product is ideal for heavy-duty applications, capable of handling voltages from six hundred volts to thirty-five thousand volts. It features a long barrel for improved wire stripping length and allows for a reliable electrical connection.

• Designed for use with both aluminum and copper conductors
• Operates in various environmental conditions, including high temperatures
• Prefilled with PENETROX® for enhanced electrical performance

Product Highlights

The YA28A3 Compression Lug is built for durability and consistent performance in demanding electrical installations.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: YA28A3

Technical Specifications

• Application: For aluminum and copper conductors
• Barrel Size: 1.39 inches Long
• Conductor Size: 4/0 AWG
• Stud Size: 1/2 inches
• Voltage Rating: 600 VAC to 35 kV
• Temperature Rating: 90 degrees C
• Material: Electro Plated Tin Aluminum
• Overall Length: 3.44 inches
• Die Code: 298
• Series: YA-A
• Tongue Size: 1.18 inches L x 1.17 inches W x 0.3 inches Thick
