Product Description

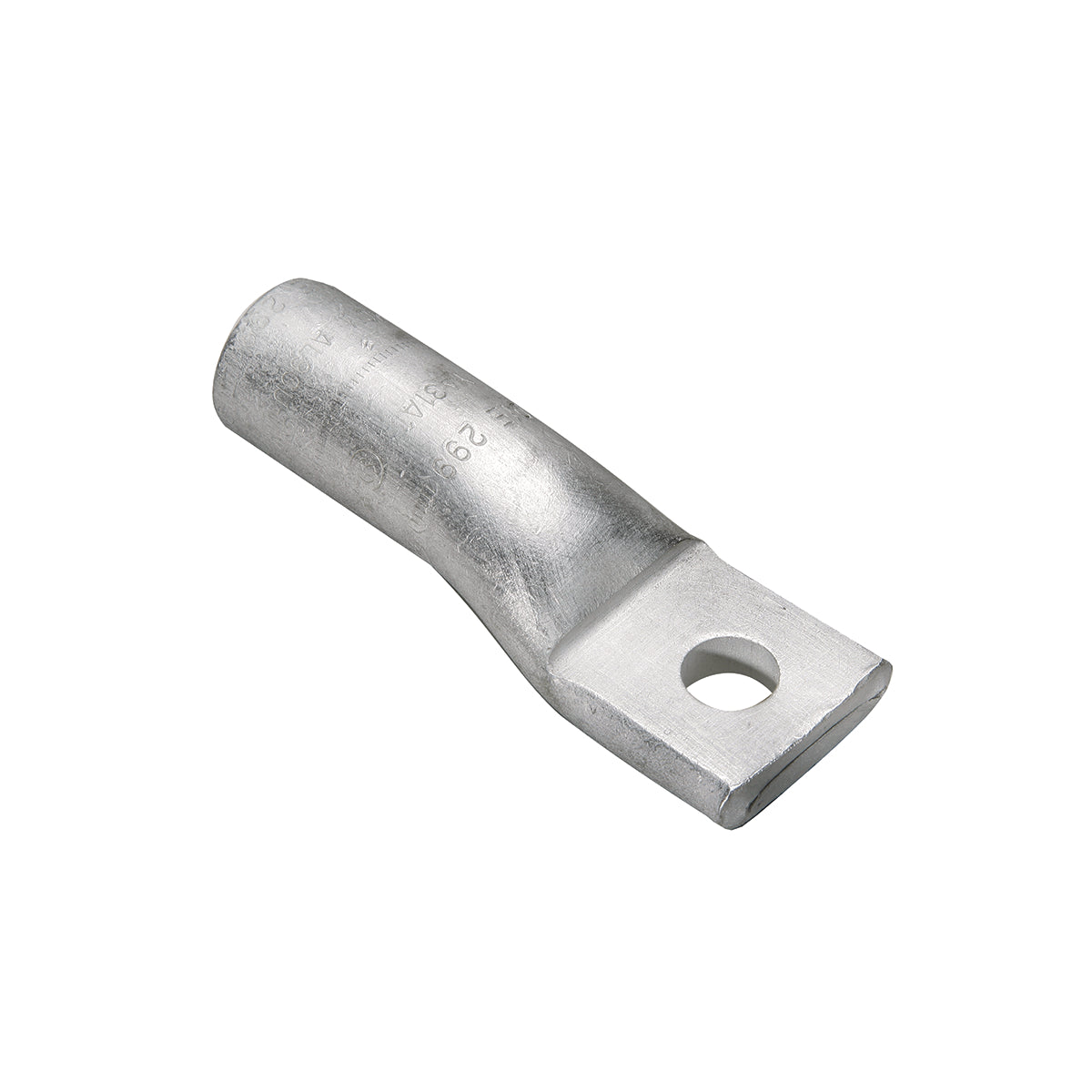

The Hubbell YA28A1 is a 1-Hole Uninsulated Compression Lug for aluminum and stranded copper conductors. This product meets various industry standards and is suitable for heavy-duty electrical applications. It supports conductors from #12 solid to 2000 kcmil.
- Composed of high conductivity, wrought aluminum.
- PFilled with PENETROX oxide inhibiting compound for reliable performance.
- Rated for up to 35 kV, with a temperature rating of 90 degrees Celsius.
Product Highlights
This compression lug provides a strong electrical connection and is ideal for a variety of applications. The prefilled PENETROX helps maintain the integrity of the connection.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: YA28A1
Technical Specifications
-
Application: For use on both aluminum and copper conductors from #12 solid through 2000 kcmil
-
Barrel Size: 1.39 inches L
-
Conductor Size: 4/0 AWG
-
Stud Size: 3/8 inches
-
Overall Length: 3.26 inches
-
Voltage Rating: 600 VAC to 35 kV
-
Temperature Rating: 90 degrees Celsius
-
Die Code: 298
