Product Description

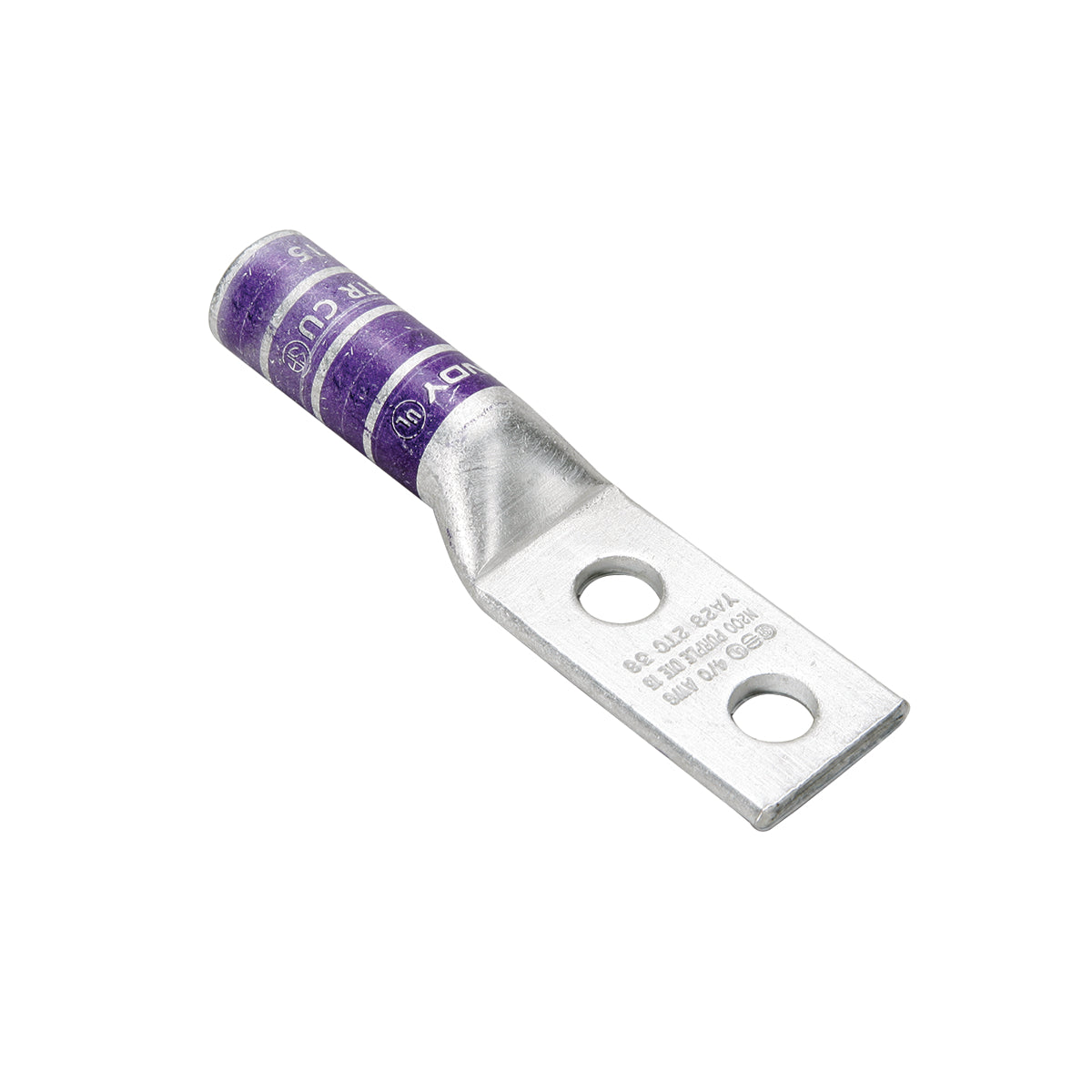

The Hubbell YA282N is a compression lug designed for use with stranded copper conductors. This 2-hole lug accommodates a conductor size of four aught AWG and is suitable for applications ranging from six hundred to thirty-five thousand volts alternating current.
- Compatible with a stud size of one half inch
- Features a straight tongue design for easy installation
- Constructed from tin plated copper for enhanced conductivity
Product Highlights
The YA282N compression lug features a barrel size of one point sixty-two inches in length and an overall length of five point seventeen inches. This product effectively meets electrical standards for residential and commercial wiring.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Application: For code conductor
Technical Specifications
-
Conductor Size: 4/0 AWG
-
Voltage Rating: 600 to 35000 VAC
-
Temperature Rating: 90 deg C
-
Die Code: 15
-
Material: Tin Plated Copper
-
Overall Length: 5.17 in
-
Barrel Size: 1.62 in L
-
Tongue Size: 1.02 in W x 0.14 in THK
-
Mounting Hole Size: 1-3/4 in
-
Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, UL 468A/468B, CSA Certified, UL 486A, UL 486B, Buy American Act Compliant
