Product Description

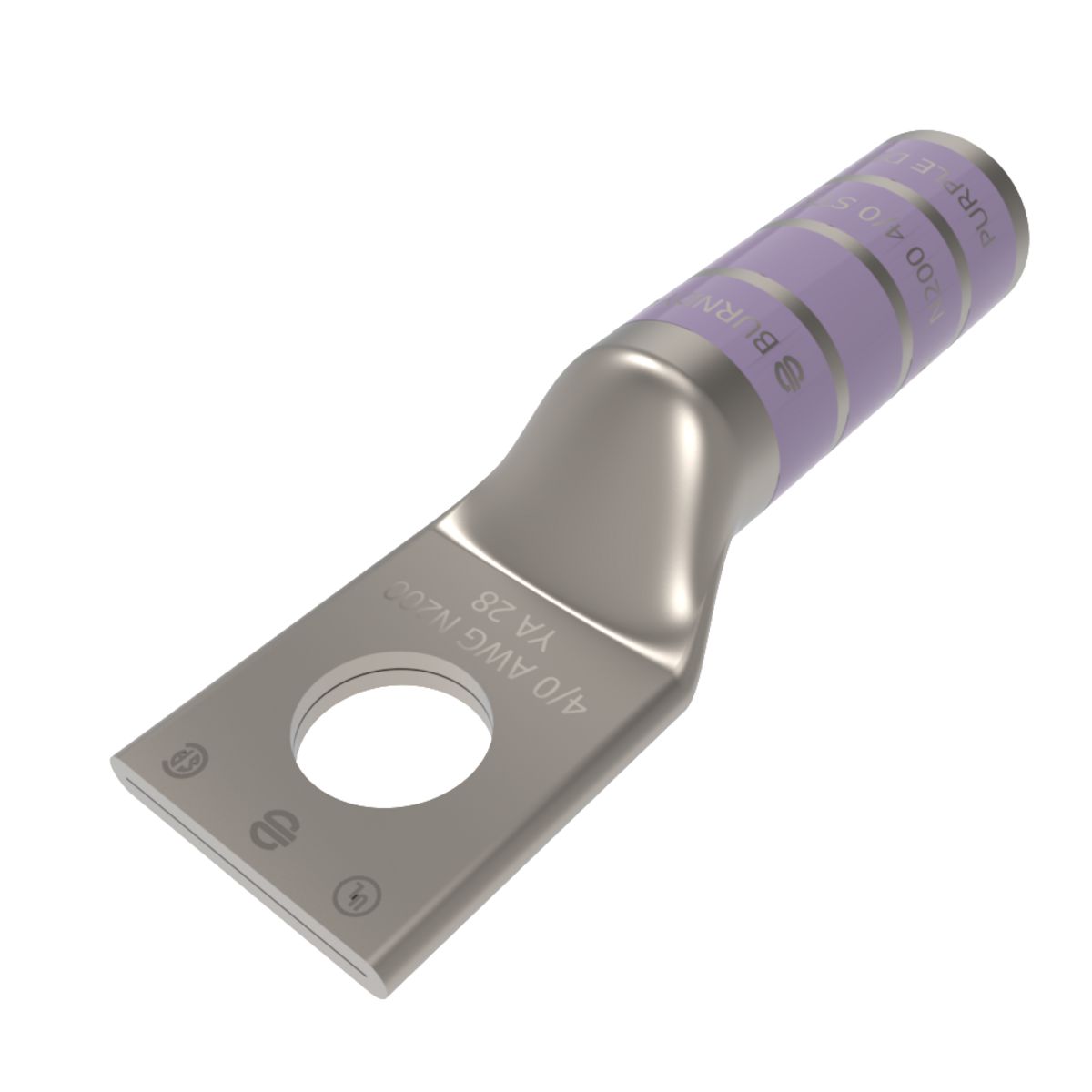

The Hubbell YA28 is a BURNDY compression lug designed for effective electrical connections. It features a one-hole uninsulated design and is suitable for 4/0 AWG stranded copper conductors. This product is compliant with various standards including UL 468A/468B and RoHS, ensuring reliability and safety in electrical applications.
- Compatible with 4/0 AWG stranded copper conductors
- Rated for voltages from 600 VAC to 35 kV
- Temperature rating of ninety degrees Celsius
Product Highlights
The YA28 compression lug is ideal for use in professional electrical installations. Its durable construction and robust design enhance electrical performance in various applications.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: YA28
Technical Specifications
-
Type: 1-Hole Uninsulated
-
Conductor Size: 4/0 AWG
-
Voltage Rating: 600 VAC to 35 kV
-
Stud Size: 1/2 in
-
Overall Length: 3.23 in
-
Barrel Length: 1.62 in
-
Pad Size: 1.02 in
-
Temperature Rating: 90 deg C
