Product Description

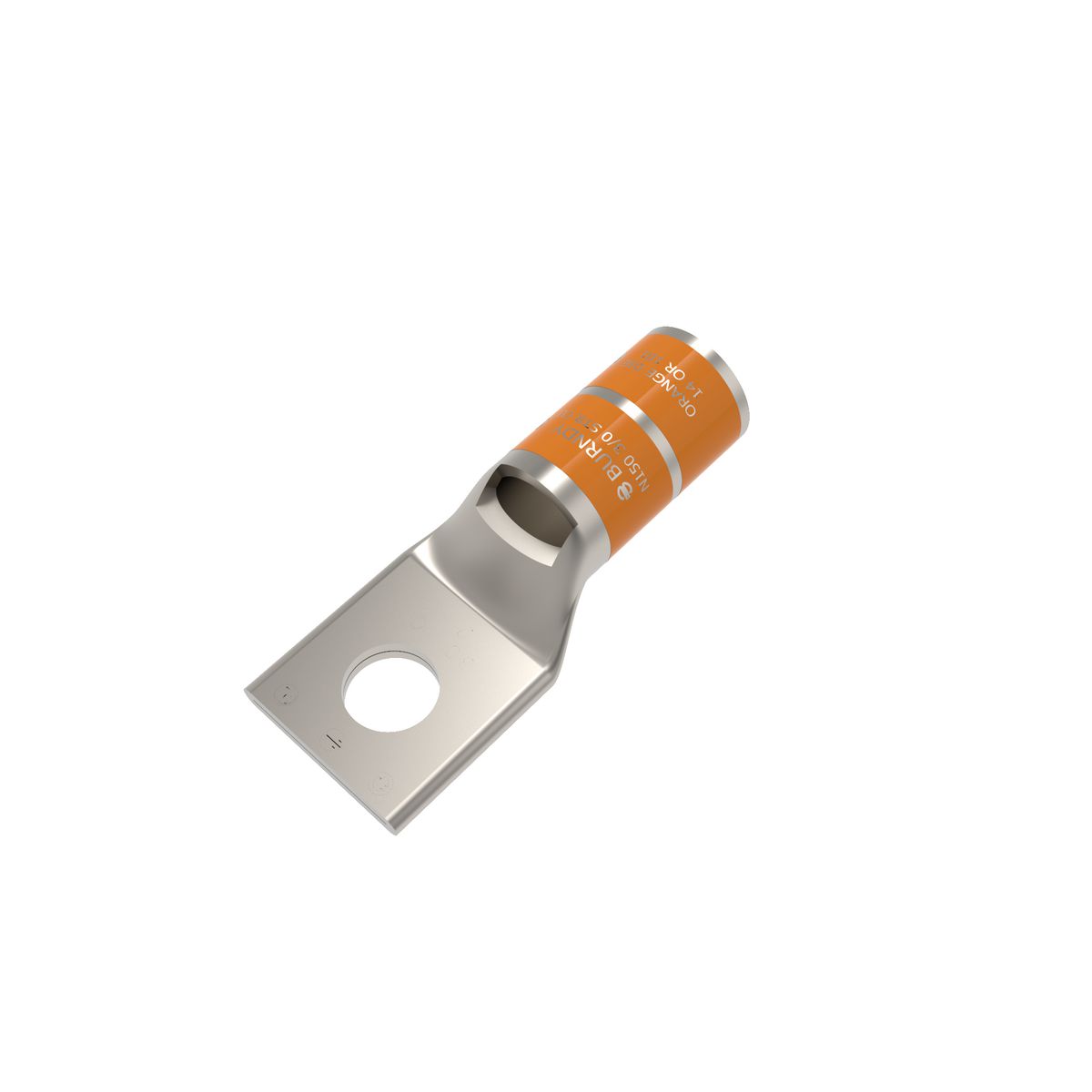

The Hubbell YA27LBOX is a one-hole compression lug designed for use with stranded copper conductors. Rated for conductors of three-aught AWG, this component is suitable for both low and high voltage applications.
- Compatible with various crimping tools.
- High conductivity copper construction for better performance.
- Provides durable connections under diverse environmental conditions.
Product Highlights
This compression lug features a reliable design for mechanical and hydraulic connections, ensuring a strong electrical connection.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: YA27LBOX
Technical Specifications
-
Application: For code conductor
-
Barrel Size: 1 inch long
-
Color: Orange
-
Conductor Size: 3/0 AWG
-
Conductor Type: Stranded Copper
-
Die Code: 14
-
Material: Copper
-
Overall Length: 2.54 inches
-
Series: YA-L
-
Specifications: 1-1/16 inches long wire strip, tin plated
-
Standards/Approvals: ARRA Compliant, Buy American Act Compliant, CSA Certified, RoHS Compliant, UL 467A/467B
-
Stud Size: 1/2 inch
-
Temperature Rating: 90 degrees Celsius
-
Tongue Size: 0.91 inches wide x 0.13 inches thick
-
Tongue Type: Standard/Straight
-
Type: 1-Hole
-
Voltage Rating: 600 VAC to 35 kV
